Potenciálkiegyenlítés

Potenciálkiegyenlítés és földelési sínek a külső fémalkatrészek potenciálkiegyenlítéséhez a VDE 0100 szerint, és a villám-potenciálkiegyenlítéshez az MSZ EN 62305-3 szerint.

K12 potenciálkiegyenlítő sín

Equipotential busbars for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 and lightning equipotential bonding according to IEC/EN 62305-3.
  • Tested according to DIN VDE 0618-1
  • VDE sign
  • CE sign
  • Fixing frames and plastic cover grey or black (halogen-free)
  • Sealable / inscribable cover
  • Snap-on terminals, St/gal Zn
  • With 12 contact studs
Assignment: For Rd one contact stud eachFor Fl two contact studs each

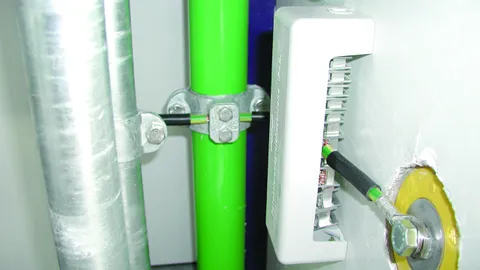

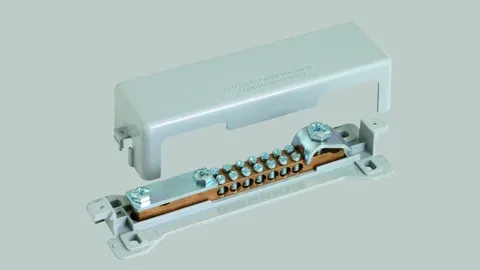

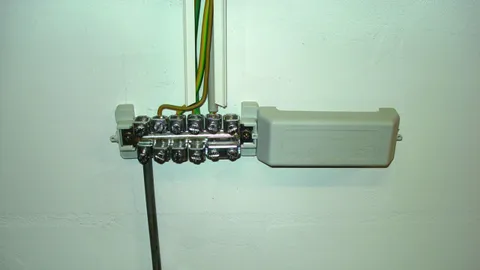

Potenciálkiegyenlítő sín fedéllel

For equipotential bonding.
Terminals for:
7 conductors 2.5-25 mm² (solid / stranded).
1 conductor Rd Ø7-10 mm.
1 conductor Fl up to 30 x 3.5 mm or Rd Ø8-10 mm.

With grey plastic cover.

Potenciálkiegyenlítő sín fedél nélkül

Equipotential busbars for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) in small installations.
  • Tested according to DIN EN 60999-2
  • Terminal block St/gal Zn

Potenciálkiegyenlítő sínek R15 sorkapoccsal / fedéllel

Equipotential busbars for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC/EN 62305-3.
  • Tested according to DIN VDE 0609
  • 15 modules
  • Grey plastic bar frames and cover (halogen-free)
  • Sealable / labelable cover
  • Terminal block St/gal Zn

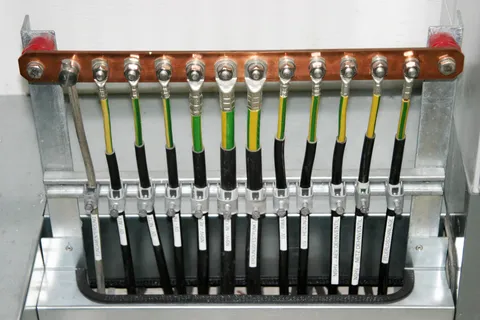

Potenciálkiegyenlítő sínek ipari kivitel

Equipotential busbars for the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC/EN 62305-3.Also for use in potentially explosive atmospheres (secured against self-loosening of screws).
  • With spring washer
  • Insulator UP (duroplastic, red) with thread M10
  • UV stabilised and halogen-free

Egysoros földelősínek

Earthing busbars for screwing on steel contructions, distance of bores 35 mm.Connection possibilities:
  • Flat strip with bore: with flat head screws M10 (with anit-rotation feature), nuts and spring washer
  • Round conductor: with KS connector e.g. Part No. 301 000 / 301 019 or with clamping frame e.g. Part No. 390 150

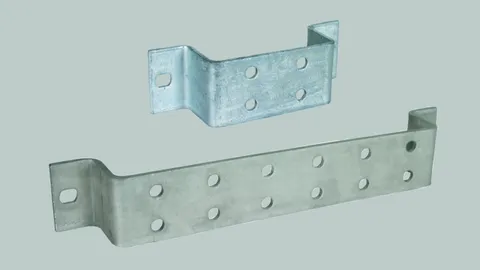

Kétsoros földelősínek

Earthing busbars for screwing on steel constructions, distance of bores 50 mm.Connection possibilities:
  • Flat strip with bore: with hexagon screws M10, nuts and spring washer
  • Flat strip (-40 mm) without bore: with cleat of disconnecting clamps e.g. Part No. 454 100
  • Round conductor: with KS connector e.g. Part No. 301 000 / 301 019 or with clamping frame e.g. Part No. 390 150

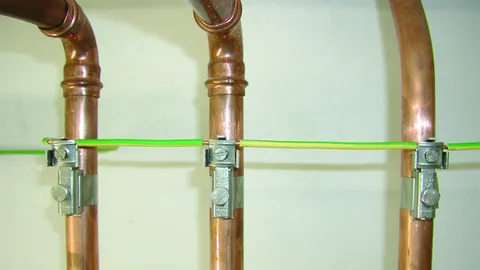

Földelő szalagcsőbilincsek

Earthing pipe clamps for integrating pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/5-54 (DIN VDE 0100-410/540), with continuously adjustable tensioning strap.

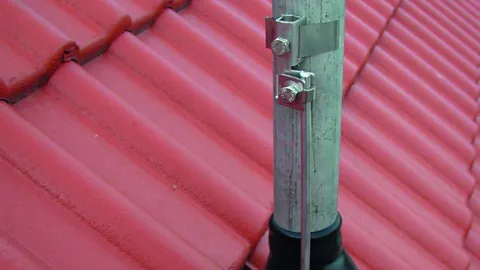

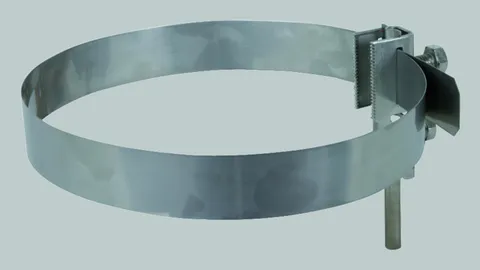

Antenna földelés

Pipe clamp for lightning equipotential bonding of pipes (e.g. antenna support tubes) according to DIN EN 62305-3 (VDE 0185-305-3).

With infinitely adjustable tensioning strap, for connecting one or two conductors and suitable for through-wiring.

Szalgcsőbilincs fogazott fejjel

Pipe clamp for the integration of pipes with surface protection into the lightning equipotential bonding according to IEC/EN 62305-3.
For use e.g. at varnished or powder-coated surfaces up to a layer thickness of 0.2 mm.

The special tines penetrate the surface protection and provide the necessary contact, thus it is not necessary to remove the surface protection.

Földelő csőbilincsek csatlakozókapoccsal

Earthing pipe clamps for integrating pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC/EN 62305-3.

The clamping range (specified in mm) refers to the outer diameter according to DIN EN ISO 228-1 of the pipes.

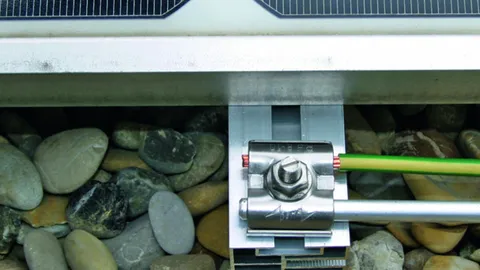

UNI korckapocs

For integrating mounting systems e.g. of PV installations into the functional equipotential bonding / functional earthing (optionally black conductor) and lightning equipotential bonding.
The StSt contact plate (intermediate element) allows for different materials of conductors (Cu, Al, St/tZn and StSt ) to be connected to the usual mounting systems, e.g. to aluminium, without the risk of contact corrosion.

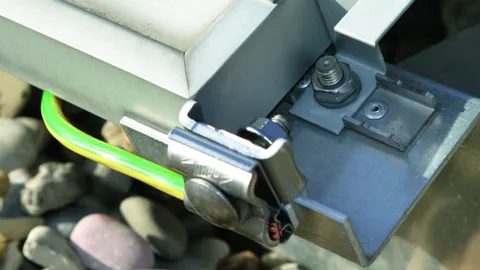

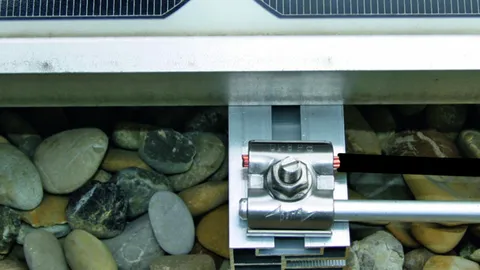

UNI földelő kapcsok

For integrating the mounting systems e.g. of PV installations into the functional equipotential bonding / functional earthing (optionally black conductor colour) and lightning equipotential bonding.
The StSt contact plate (intermediate element) allows for different materials of conductors (Cu, Al, St/tZn and StSt ) to be connected to the usual mounting systems, e.g. to aluminium, without the risk of contact corrosion.

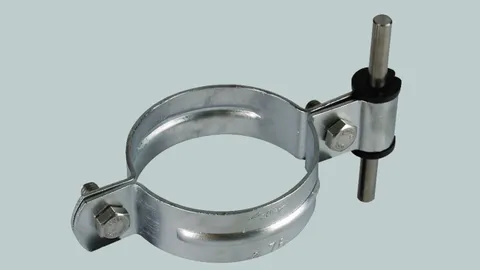

Földelő csőbilincs csatlakozófurattal

For the connection of spark gaps with roof poles.

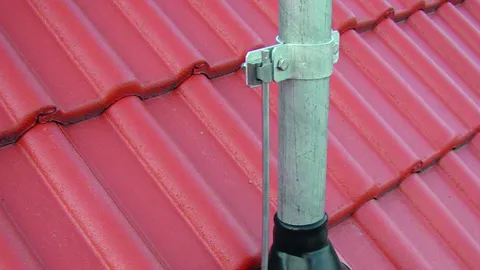

Vezetőtartó kapocscsonkkal tetőtartókhoz

For fixing round conductors at roof poles, insulated clamp bush.

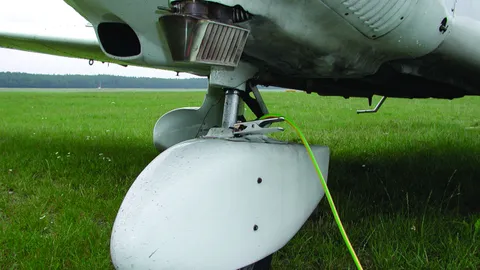

Földelő csipesz

  • For connecting tank vehicles, aircraft etc.
  • For discharging static charge
  • For use in hazardous areas

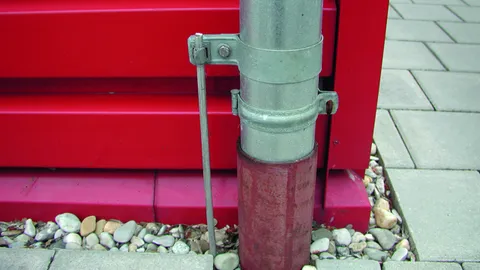

Ereszcsatorna kapocs csatlakozófurattal

Pipe clamps for connecting down pipes to the lightning equipotential bonding according to IEC/EN 62305-3.
Connection possibilities for Rd, e.g. with KS connector (Part No. 301 000) or with clamping block (Part No. 390 150) (according to material).

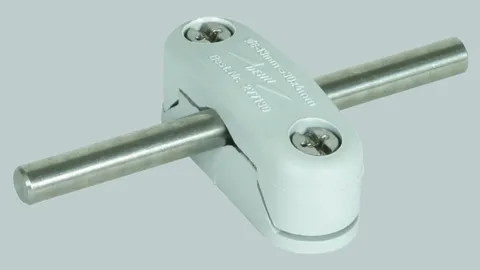

Vezetőtartó

Conductor holder for installing round and flat conductors for equipotential bonding e.g. in transformer stations, processor rooms.
Insulated conductor holder.

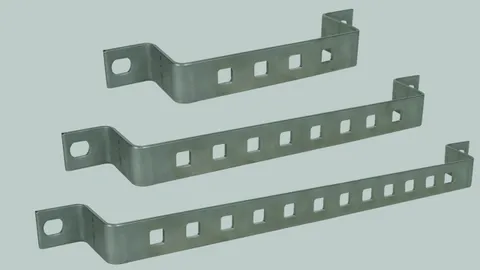

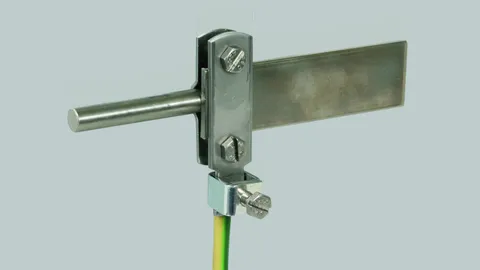

Csatlakozókapocs gyűrűs potenciálkiegyenlítéshez

For universal connection to the ring equipotential bonding for St/tZn, copper or stainless steel (StSt).
