DEHNguard modular YPV ... FM

Prewired complete unit for photovoltaic systems consisting of a base part and plug-in protection modules

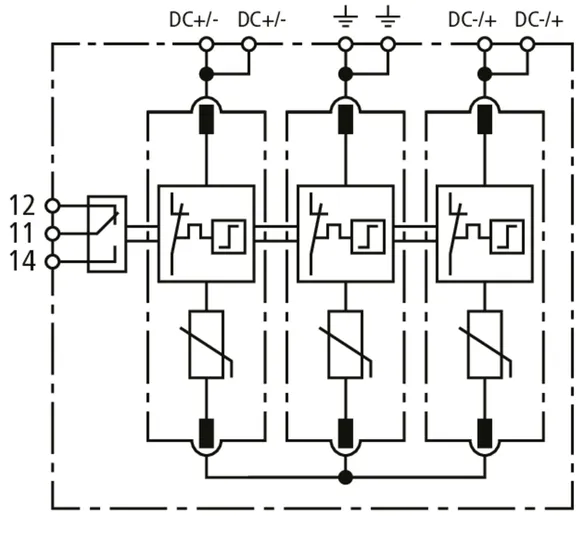

Fault-resistant Y circuit with three heavy-duty varistors prevents damage to the surge protective device in case of insulation faults in the generator circuit
Tested to EN 61643-31
High reliability due to "Thermo Dynamic Control" disconnector
Fault indication by red indicator flag in the inspection window
Suitable for use in accordance with IEC 60364-7-712 [Photovoltaic (PV) power systems]

DEHNguard MP YPV ... FM

Multipole modular surge arrester for use in PV systems; with remote signalling contact for monitoring device (floating changeover contact).

2 Termékek

Cikkszám 942565 DG MP YPV 1200 FM

GTIN 4013364495685, Vámtarifa szám (EU): 85354000, Bruttó súly: 355.99 g, PU: 1.00 pc(s)

Képek

További információ

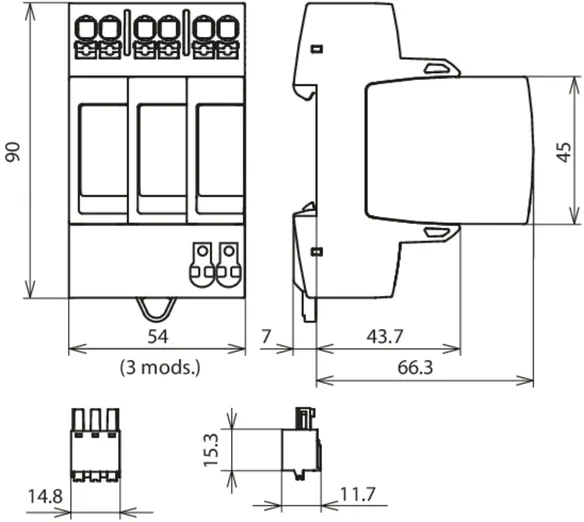

DEHNguard MP YPV 1200 FM surge arrester
Multipole, modular, pluggable arrester for use in photovoltaic systems
with double push-in connection clamp suitable for
stub wiring and feed-through wiring
up to 1,170 V DC, width of 3 DIN modules
Fault indication
With remote signalling contact
Type 2 arrester as per EN 61643-31
For use according to IEC 60364-7-712
Max. PV voltage: <= 1170 V dc
Total discharge current: 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

Brand: DEHN
Type: DG MP YPV 1200 FM
Part No.: 942565
or equivalent.

Tanúsítványok

Műszaki adatok

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1170 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Max. PV voltage (U_CPV )	1170 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (d.c.) (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm2 solid / flexible

A 942565 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 942565 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 942567 DG MP YPV 1500 FM

GTIN 4013364495678, Vámtarifa szám (EU): 85354000, Bruttó súly: 387.05 g, PU: 1.00 pc(s)

Képek

További információ

DEHNguard MP YPV 1500 FM surge arrester
Multipole, modular, pluggable arrester for use in photovoltaic systems
with double push-in connection clamp suitable for
stub wiring and feed-through wiring
up to 1,500 V DC, width of 3 DIN modules
Fault indication
With remote signalling contact
Type 2 arrester as per EN 61643-31
For use according to IEC 60364-7-712
Max. PV voltage: <= 1500 V dc
Total discharge current: 40 kA
Voltage protection level: <= 5 kV
Short-circuit strength Iscpv: 10 kA

Brand: DEHN
Type: DG MP YPV 1500 FM
Part No.: 942567
or equivalent.

Tanúsítványok

Műszaki adatok

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	15 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	15 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Nominal load current (d.c.) (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm2 solid / flexible

A 942567 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 942567 terméket hozzáadtuk a kosárhoz.

Webshop indítása

DEHNguard M YPV ... FM

Modular multipole surge arrester for PV systems with remote signalling contact for monitoring device (floating changeover contact).

2 Termékek

Cikkszám 952565 DG M YPV 1200 FM

GTIN 4013364327719, Vámtarifa szám (EU): 85354000, Bruttó súly: 382.00 g, PU: 1.00 pc(s)

Képek

További információ

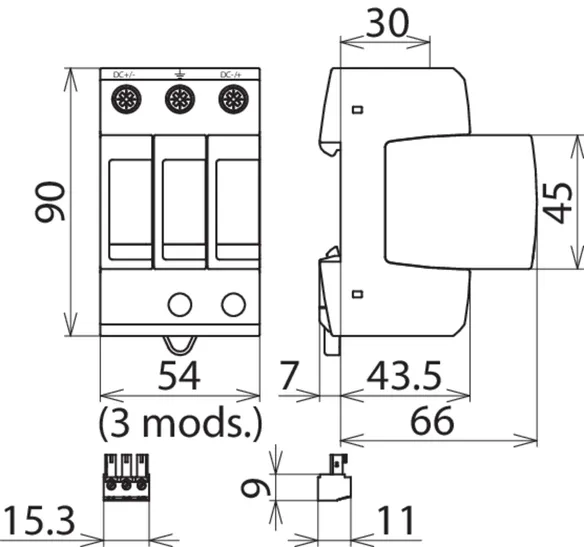

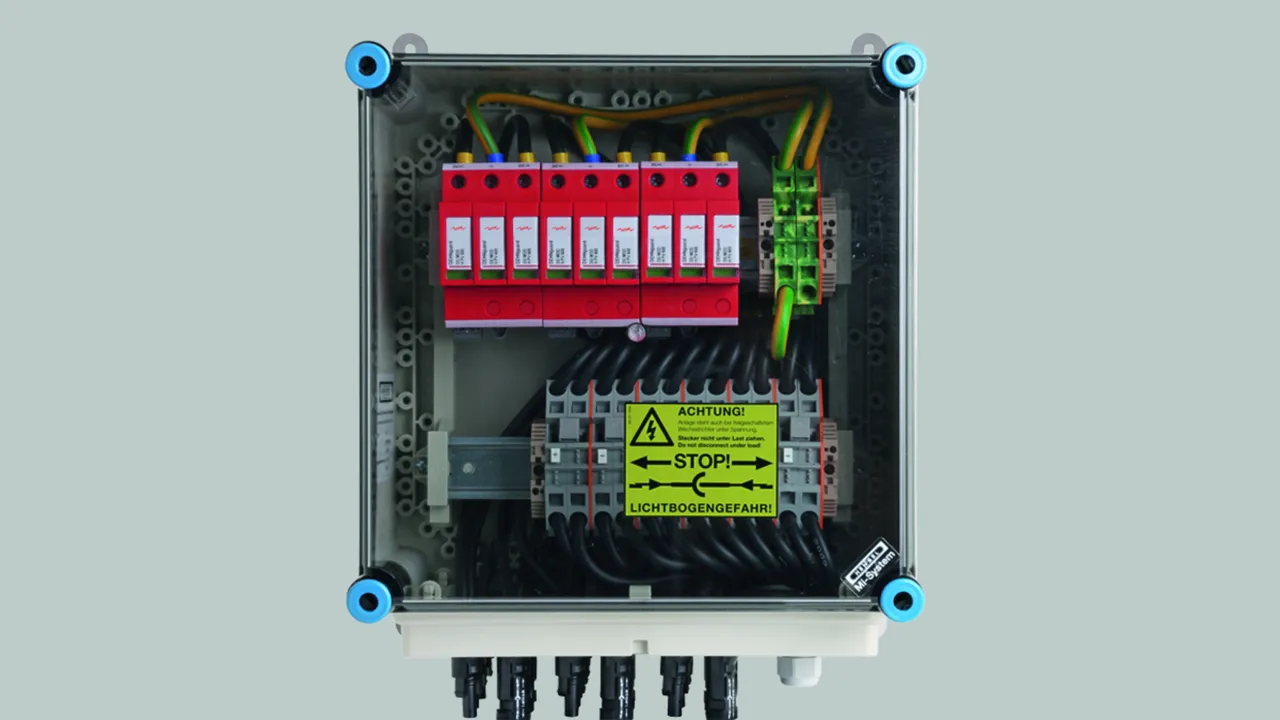

DEHNguard M YPV 1200 FM surge arrester
Multipole, modular, pluggable arrester for use in photovoltaic systems
up to 1,170 V DC, width of 3 DIN modules
Fault indication
Type 2 arrester as per EN 61643-31
For use according to IEC 60364-7-712
Maximum PV voltage: <= 1,170 V DC
Total discharge current: 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

Brand: DEHN
Type: DG M YPV 1200 FM
Part No.: 952565
or equivalent.

Tanúsítványok

Műszaki adatok

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1170 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Max. PV voltage (U_CPV )	1170 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

A 952565 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 952565 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 952567 DG M YPV 1500 FM

GTIN 4013364327726, Vámtarifa szám (EU): 85354000, Bruttó súly: 411.20 g, PU: 1.00 pc(s)

Képek

További információ

CAD fájlok

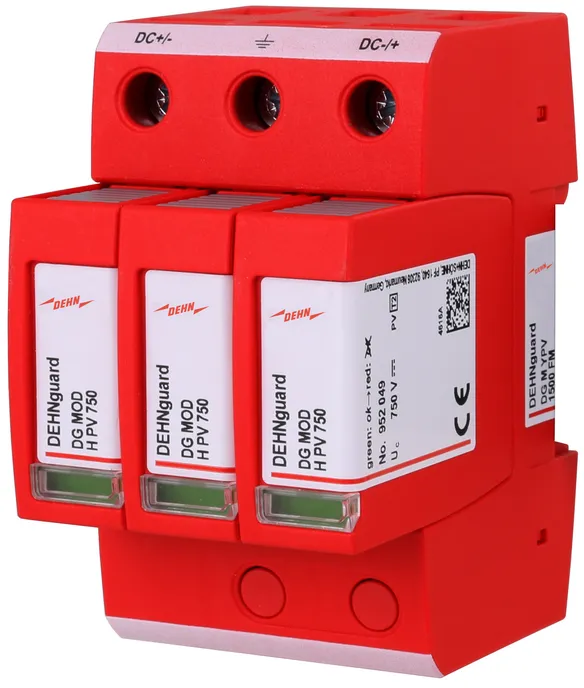

DEHNguard M YPV 1500 FM surge arrester
Multipole, modular, pluggable arrester for use in photovoltaic systems
up to 1,500 V DC, width of 3 DIN modules
Fault indication
With remote signalling contact
Type 2 arrester as per EN 61643-31
For use according to IEC 60364-7-712
Max. PV voltage: <= 1500 V dc
Total discharge current: 40 kA
Voltage protection level: <= 5 kV
Short-circuit strength Iscpv: 10 kA

Brand: DEHN
Type: DG M YPV 1500 FM
Part No.: 952567
or equivalent.

Tanúsítványok

Műszaki adatok

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	15 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	15 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm2 solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

A 952567 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 952567 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Results for products (0)

Results for content (0)

DEHNguard modular YPV ... FM

DEHNguard MP YPV ... FM

Cikkszám 942565 DG MP YPV 1200 FM

A 942565 termék hozzá lett adva a jegyzettömbhöz.

A 942565 terméket hozzáadtuk a kosárhoz.

Cikkszám 942567 DG MP YPV 1500 FM

A 942567 termék hozzá lett adva a jegyzettömbhöz.

A 942567 terméket hozzáadtuk a kosárhoz.

DEHNguard M YPV ... FM

Cikkszám 952565 DG M YPV 1200 FM

A 952565 termék hozzá lett adva a jegyzettömbhöz.

A 952565 terméket hozzáadtuk a kosárhoz.

Cikkszám 952567 DG M YPV 1500 FM

A 952567 termék hozzá lett adva a jegyzettömbhöz.

A 952567 terméket hozzáadtuk a kosárhoz.

DEHNguard modular YPV ... FM

DEHNguard MP YPV ... FM

Cikkszám 942565 DG MP YPV 1200 FM

Ön nem jogosult a letöltésre 942XXX_DG_MP_YPV_XXX_FM.stp

Ön nem jogosult a letöltésre 942XXX_DG_MP_YPV_XXX_FM.igs

Ön nem jogosult a letöltésre 942XXX_DG_MP_YPV_XXX_FM.jt

Ön nem jogosult a letöltésre 942XXX_DG_MP_YPV_XXX_FM.dwg

Ön nem jogosult a letöltésre 942565_942567m_E.dxf

A 942565 termék hozzá lett adva a jegyzettömbhöz.

A 942565 terméket hozzáadtuk a kosárhoz.

Cikkszám 942567 DG MP YPV 1500 FM

Ön nem jogosult a letöltésre 942XXX_DG_MP_YPV_XXX_FM.stp

Ön nem jogosult a letöltésre 942XXX_DG_MP_YPV_XXX_FM.igs

Ön nem jogosult a letöltésre 942XXX_DG_MP_YPV_XXX_FM.jt

Ön nem jogosult a letöltésre 942XXX_DG_MP_YPV_XXX_FM.dwg

Ön nem jogosult a letöltésre 942565_942567m_E.dxf

A 942567 termék hozzá lett adva a jegyzettömbhöz.

A 942567 terméket hozzáadtuk a kosárhoz.

DEHNguard M YPV ... FM

Cikkszám 952565 DG M YPV 1200 FM

A 952565 termék hozzá lett adva a jegyzettömbhöz.

A 952565 terméket hozzáadtuk a kosárhoz.

Cikkszám 952567 DG M YPV 1500 FM

Ön nem jogosult a letöltésre 952305.stp

Ön nem jogosult a letöltésre 952305.igs

Ön nem jogosult a letöltésre 952305.jt

Ön nem jogosult a letöltésre 952305.dwg

Ön nem jogosult a letöltésre 952305m_E.dxf

Ön nem jogosult a letöltésre DEHN.952567.wspak

Ön nem jogosult a letöltésre DEHN.952567.edz

A 952567 termék hozzá lett adva a jegyzettömbhöz.

A 952567 terméket hozzáadtuk a kosárhoz.
