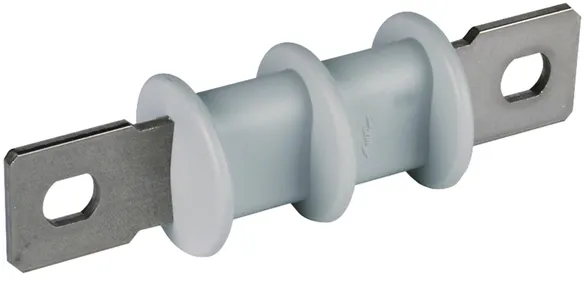

Protective Spark Gap
:quality(98)/www.dehn.hu/store/f/62779385/HDVORSCHAU/920000a2_16-9.jpg)
:quality(98)/www.dehn.hu/store/f/62779385/HDVORSCHAU/920000a2_16-9.jpg)

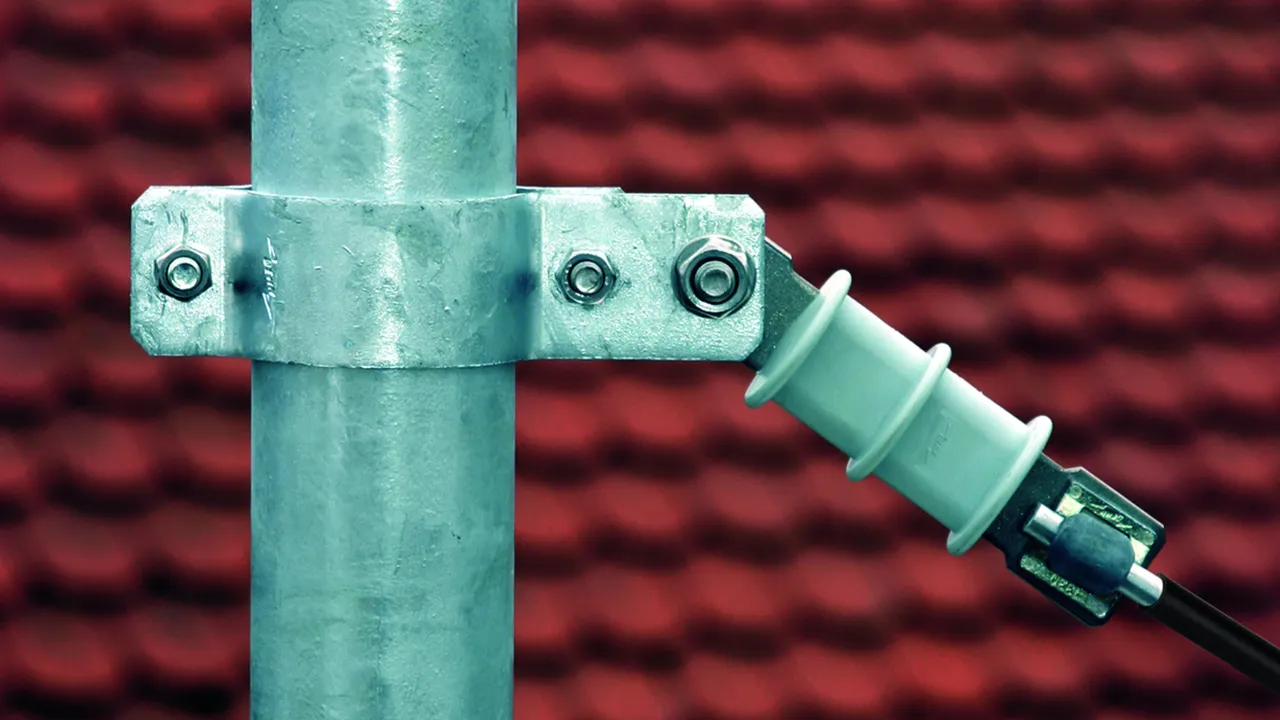

- For indirect connection of an overhead line roof pole to the external lightning protection system
- Corrosion-resistant stainless steel connections
Cikkszám 920000 DSFS
GTIN 4013364057494, Vámtarifa szám (EU): 85369095, Bruttó súly: 127.00 g, PU: 1.00 pc(s)
Képek
:quality(98)/www.dehn.hu/store/f/62779395/HDVORSCHAU/920000.jpg)
:quality(98)/www.dehn.hu/store/f/62779395/HDVORSCHAU/920000.jpg)
:quality(98)/www.dehn.hu/store/f/62779396/HDVORSCHAU/920000p_D.jpg)
:quality(98)/www.dehn.hu/store/f/62779396/HDVORSCHAU/920000p_D.jpg)
:quality(98)/www.dehn.hu/store/f/62779397/HDVORSCHAU/920000m_D.jpg)
:quality(98)/www.dehn.hu/store/f/62779397/HDVORSCHAU/920000m_D.jpg)
Műszaki adatok
| 100% lightning impulse sparkover voltage (1.2/50 µs) (Urimp ) | ~ 25 kV |
| Nominal discharge current (8/20 µs) (In ) | 25 kA |
| Power frequency sparkover voltage (50 Hz) (Uaw ) | ~ 10 kV |
