Roof Conductor Holders with Tension Spring for Ridge and Hip Tiles

For fixing air-termination conductors on the ridge e.g. of tiled roofs.

SPANNsnap light

For fixing by StSt tension spring, with DEHNsnap conductor holder, loose conductor leading, laterally adjustable.

2 Termékek

Cikkszám 204469 DLH SSL 8 H16 FG180.280 GR V2A

GTIN 4013364124851, Vámtarifa szám (EU): 85389099, Bruttó súly: 67.20 g, PU: 25.00 pc(s)

Képek

További információ

Pitched roofs - SPANNsnap light, StSt, height of conductor holder: 16 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SSL 8 H16 FG180.280 GR V2A
Part No.: 204469
or equivalent.

Tanúsítványok



Műszaki adatok

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

A 204469 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 204469 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 204449 DLH SSL 8 H36 FG180.280 GR V2A

GTIN 4013364124837, Vámtarifa szám (EU): 85389099, Bruttó súly: 70.30 g, PU: 25.00 pc(s)

Képek

További információ

Pitched roofs - SPANNsnap light, StSt, height of conductor holder: 36 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SSL 8 H36 FG180.280 GR V2A
Part No.: 204449
or equivalent.

Tanúsítványok



Műszaki adatok

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

A 204449 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 204449 terméket hozzáadtuk a kosárhoz.

Webshop indítása

SPANNsnap

For fixing by StSt tension spring, with DEHNsnap conductor holder, loose conductor leading, laterally adjustable.

4 Termékek

Cikkszám 204269 DLH SS 8 H16 FG180.280 GR V2A

GTIN 4013364035812, Vámtarifa szám (EU): 85389099, Bruttó súly: 68.60 g, PU: 25.00 pc(s)

Képek

További információ

Pitched roofs - SPANNsnap, StSt, height of conductor holder: 16 mm, grey
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SS 8 H16 FG180.280 GR V2A
Part No.: 204269
or equivalent.

Tanúsítványok



Műszaki adatok

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

A 204269 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 204269 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 204267 DLH SS 8 H16 FG180.280 BR CU

GTIN 4013364035805, Vámtarifa szám (EU): 85389099, Bruttó súly: 74.60 g, PU: 25.00 pc(s)

Kifutott termék:

Képek

További információ

Pitched roofs - SPANNsnap, Cu, height of conductor holder: 16 mm, brown
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH SS 8 H16 FG180.280 BR CU
Part No.: 204267
or equivalent.

Tanúsítványok



Műszaki adatok

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm

A 204267 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 204267 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 204249 DLH SS 8 H36 FG180.280 GR V2A

GTIN 4013364041790, Vámtarifa szám (EU): 85389099, Bruttó súly: 72.60 g, PU: 25.00 pc(s)

Képek

További információ

Pitched roofs - SPANNsnap, StSt, height of conductor holder: 36 mm, grey
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SS 8 H36 FG180.280 GR V2A
Part No.: 204249
or equivalent.

Tanúsítványok



Műszaki adatok

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

A 204249 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 204249 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 204247 DLH SS 8 H36 FG180.280 BR CU

GTIN 4013364041806, Vámtarifa szám (EU): 85389099, Bruttó súly: 76.60 g, PU: 25.00 pc(s)

Kifutott termék:

Képek

További információ

Pitched roofs - SPANNsnap, Cu, height of conductor holder: 36 mm, brown
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH SS 8 H36 FG180.280 BR CU
Part No.: 204247
or equivalent.

Tanúsítványok



Műszaki adatok

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm

A 204247 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 204247 terméket hozzáadtuk a kosárhoz.

Webshop indítása

SPANNgrip light

For fixing by StSt tension spring, with DEHNgrip conductor holder, loose conductor leading, laterally adjustable.

2 Termékek

Cikkszám 206439 DLH SGL 8 H20 FG180.280 V2A

GTIN 4013364124875, Vámtarifa szám (EU): 85389099, Bruttó súly: 76.40 g, PU: 25.00 pc(s)

Képek

További információ

Pitched roofs - SPANNgrip light, StSt, height of conductor holder: 20 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip light with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side

Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SGL 8 H20 FG180.280 V2A
Part No.: 206439
or equivalent.

Tanúsítványok



Műszaki adatok

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

A 206439 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 206439 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 206449 DLH SGL 8 H32 FG180.280 V2A

GTIN 4013364124899, Vámtarifa szám (EU): 85389099, Bruttó súly: 82.10 g, PU: 25.00 pc(s)

Képek

További információ

Pitched roofs - SPANNgrip light, StSt, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip light with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SGL 8 H32 FG180.280 V2A
Part No.: 206449
or equivalent.

Tanúsítványok



Műszaki adatok

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

A 206449 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 206449 terméket hozzáadtuk a kosárhoz.

Webshop indítása

SPANNgrip

For fixing by StSt tension spring, with DEHNgrip conductor holder, loose conductor leading, laterally adjustable.

4 Termékek

Cikkszám 206239 DLH SG 8 H20 FG180.280 V2A

GTIN 4013364042650, Vámtarifa szám (EU): 85389099, Bruttó súly: 78.60 g, PU: 25.00 pc(s)

Képek

További információ

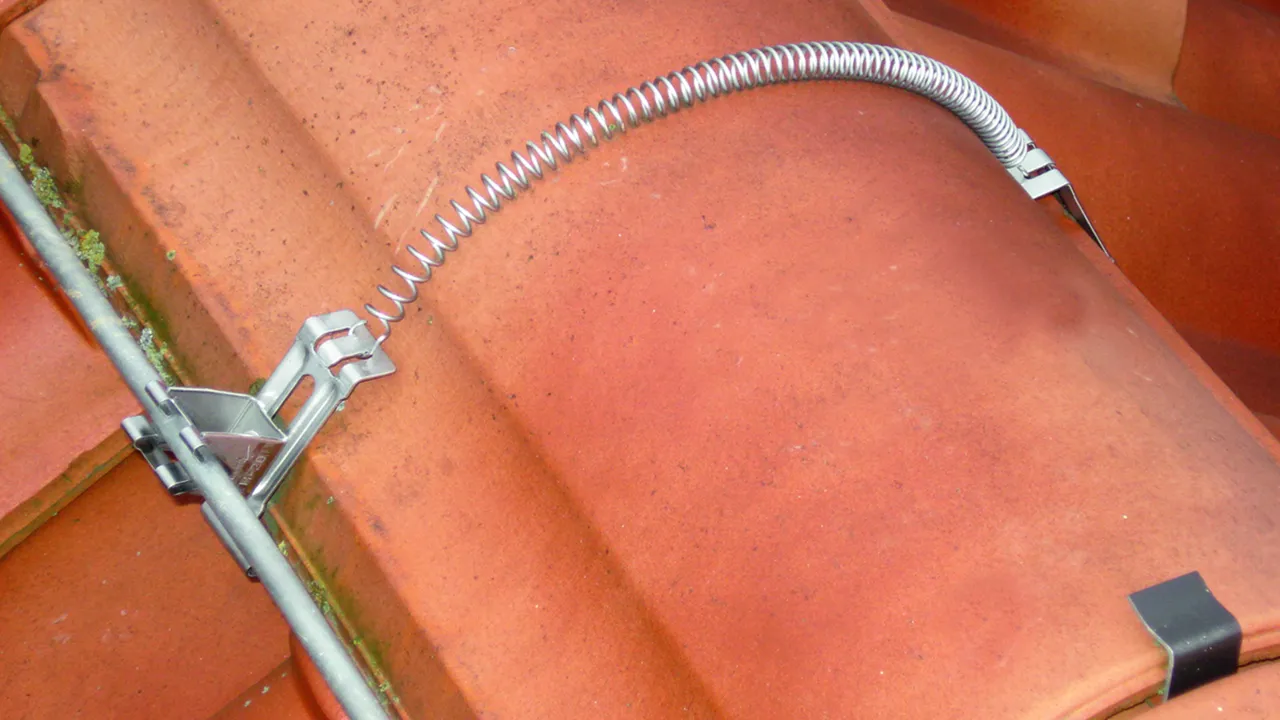

Pitched roofs - SPANNgrip, StSt, height of conductor holder: 20 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SG 8 H20 FG180.280 V2A
Part No.: 206239
or equivalent.

Tanúsítványok



Műszaki adatok

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

A 206239 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 206239 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 206237 DLH SG 8 H20 FG180.280 CU

GTIN 4013364077300, Vámtarifa szám (EU): 85389099, Bruttó súly: 85.60 g, PU: 25.00 pc(s)

Kifutott termék:

Képek

További információ

Pitched roofs - SPANNgrip, Cu, height of conductor holder: 20 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH SG 8 H20 FG180.280 CU
Part No.: 206237
or equivalent.

Tanúsítványok



Műszaki adatok

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder Cu
Conductor holder support Rd 8 mm
Standard EN 62561-4

A 206237 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 206237 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 206249 DLH SG 8 H32 FG180.280 V2A

GTIN 4013364042803, Vámtarifa szám (EU): 85389099, Bruttó súly: 84.60 g, PU: 25.00 pc(s)

Képek

További információ

Pitched roofs - SPANNgrip, StSt, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SG 8 H32 FG180.280 V2A
Part No.: 206249
or equivalent.

Tanúsítványok



Műszaki adatok

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

A 206249 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 206249 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 206247 DLH SG 8 H32 FG180.280 CU

GTIN 4013364078574, Vámtarifa szám (EU): 85389099, Bruttó súly: 96.60 g, PU: 25.00 pc(s)

Kifutott termék:

Képek

További információ

Pitched roofs - SPANNgrip, Cu, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH SG 8 H32 FG180.280 CU
Part No.: 206247
or equivalent.

Tanúsítványok



Műszaki adatok

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor holder support Rd 8 mm
Standard EN 62561-4

A 206247 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 206247 terméket hozzáadtuk a kosárhoz.

Webshop indítása
back to top
