IEC/EN 62305-3 points out that in special cases the risk of step and touch voltage outside a building may be extremely high near the down-conductors, although there is a lightning lightning protection system in accordance with the current state of standardisation.
As applies for example, if bare/uninsulated down conductors and lightning protection earth electrodes are installed near the entrance of sheltering areas of buildings with high visitor frequency, such as theatres, cinemas, shopping centres etc.
Especially exposed (lightning endangered) buildings or structures with public access (e.g. shelters) may also require protection measures against step and touch voltage.

Protection against touch voltage
Touch voltage means a life-threatening voltage that affects a person who touches the down conductor while standing on the ground within a distance of about 1 m from the down conductor touches the down conductor. The current flows through the hand into the body and down to the feet (see Figure 1/2).
The hazardous area for persons outside of a building is defined as an area of 3 m around the down conductor and from ground level up to a height of approx. 3 m.

Details

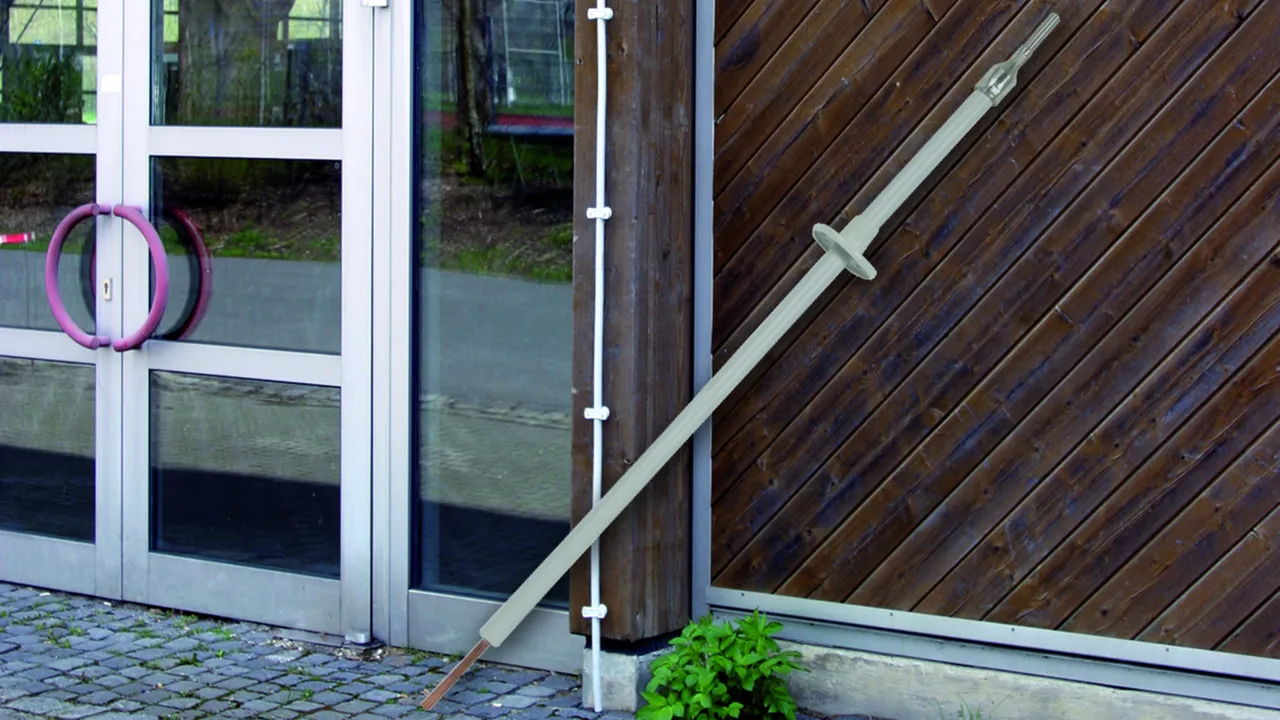

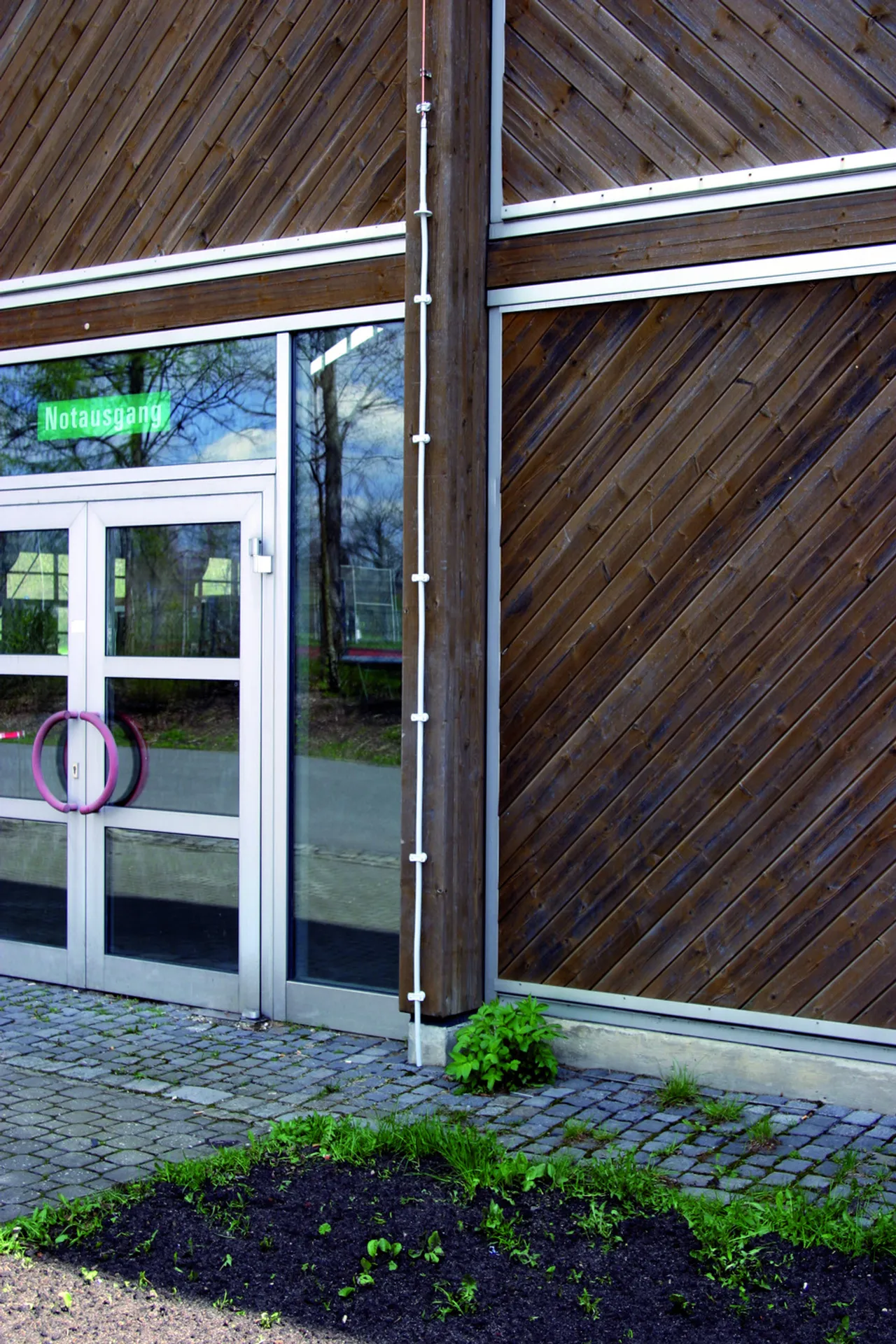

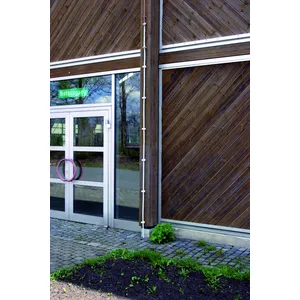

Figure 6: Application in entrance area
lorem ipsum

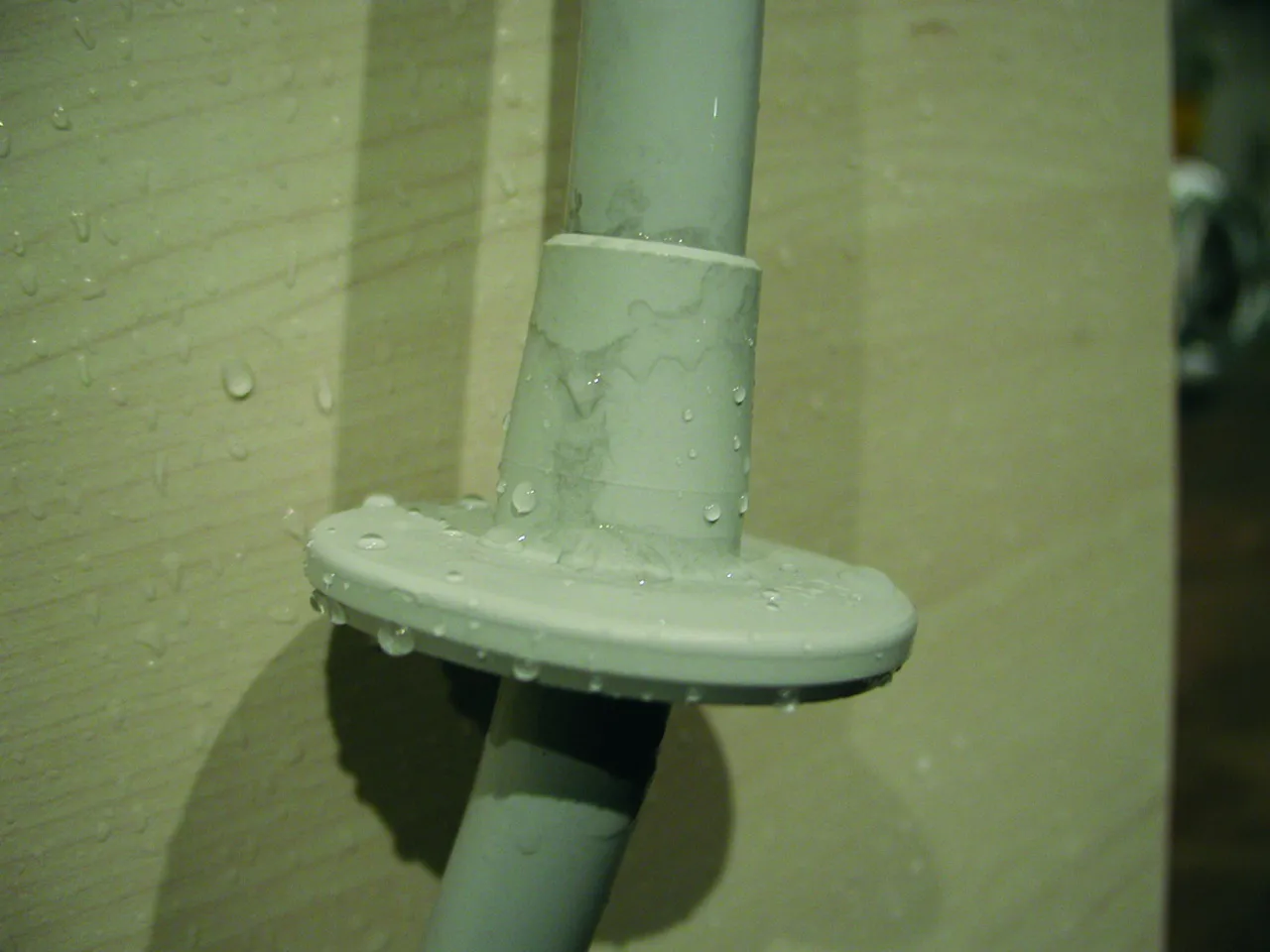

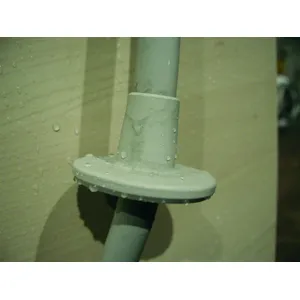

Figure 5: Detail of Figure 4
lorem ipsum

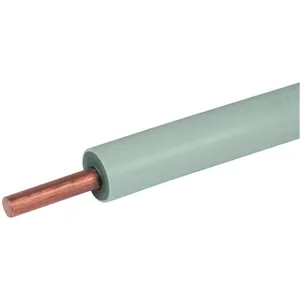

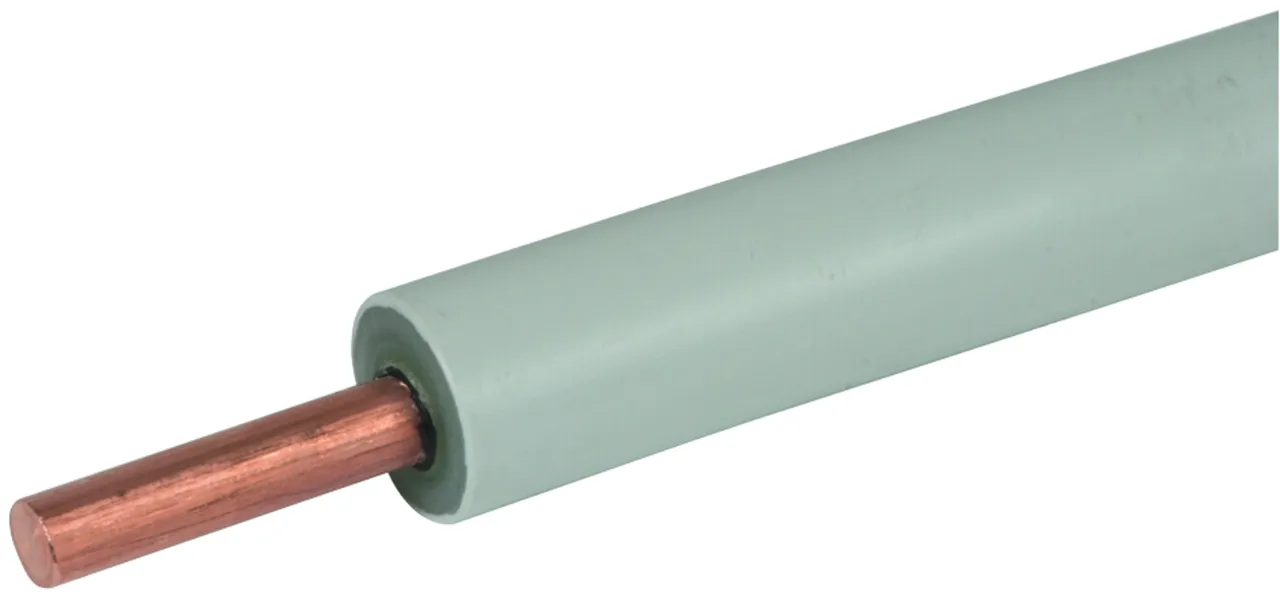

Figure 3: Structure of a CUI conductor
lorem ipsum

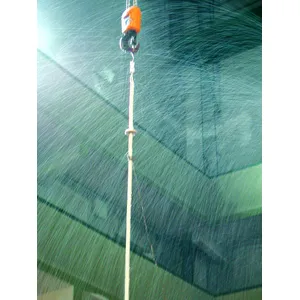

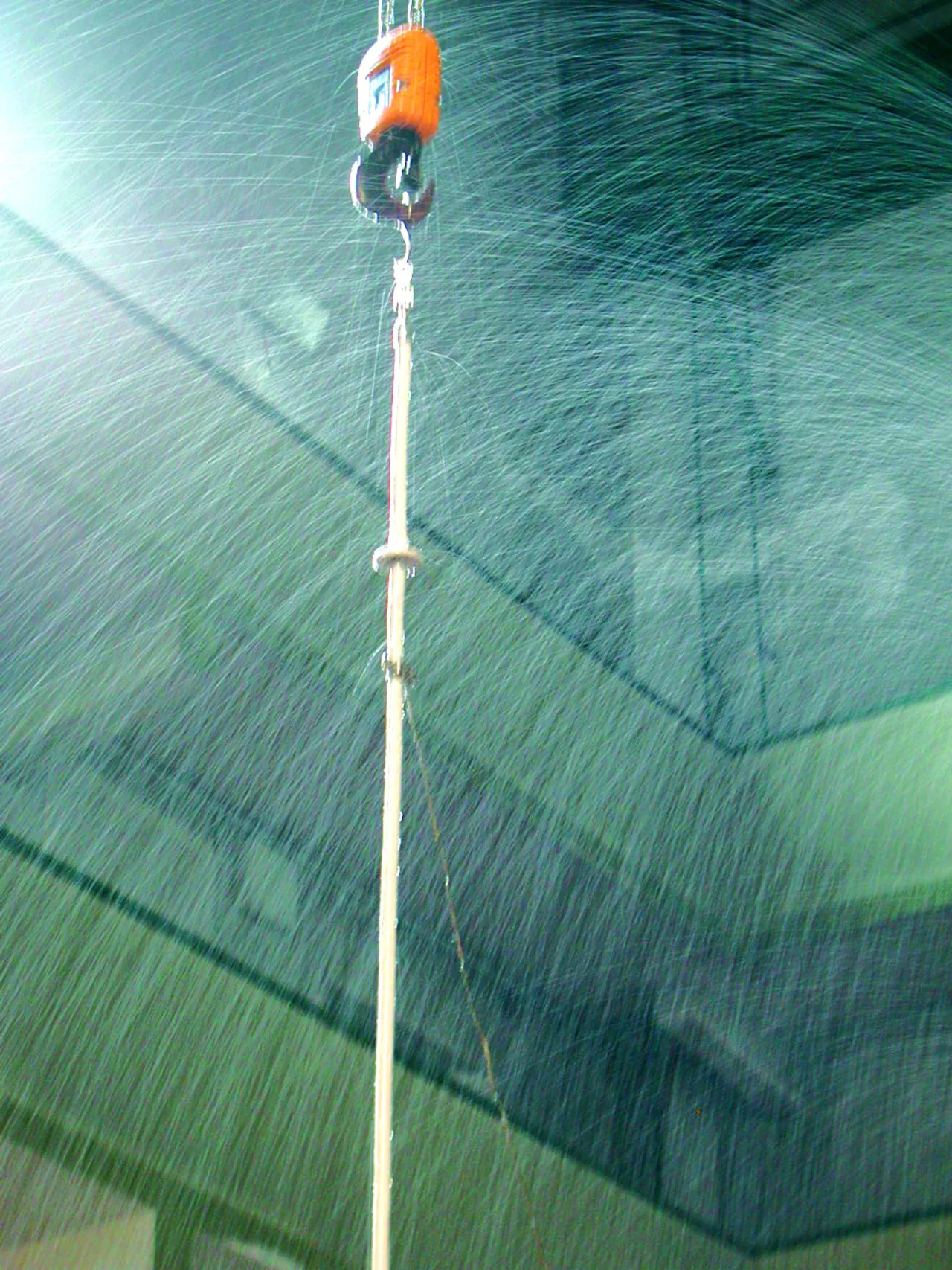

Figure 4: Rain test
lorem ipsum

The dangerous area of touch and step voltages for living beings is defined as an area of approx. 3 m around the down conductor, from ground level up to a height of approx. 3 m.The CUI conductor has a copper core and a high-voltage-resistant insulation.These conductors shall meet the requirements of a:

  • Surge withstand capability of 100 kV (1.2/50 µs)
  • Prevention of creeping sparkover even during rain

2 Termékek

Cikkszám 830208 CUI L 20 GR 3.5M

GTIN 4013364106116, Vámtarifa szám (EU): 85389099, Bruttó súly: 3.27 kg, PU: 1.00 db.

Képek

További információ

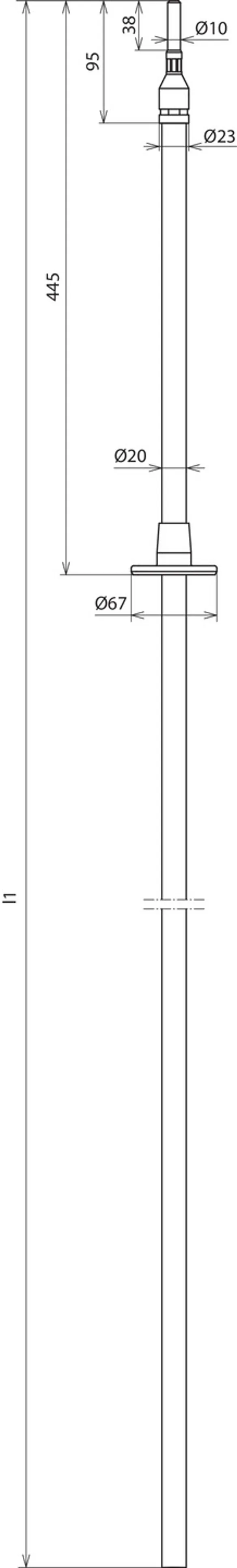

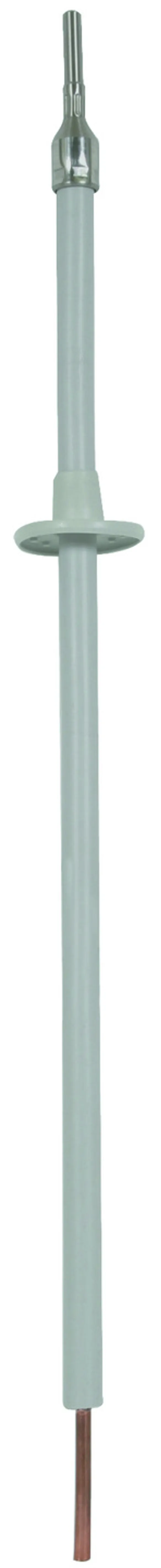

CUI Conductor, 3500 mm long
CUI conductor for avoiding touch voltages on
down conductors.
Material of conductor: Cu
Material of insulation: XLPE
Diameter Ø conductor: 20 mm
Standard: EN 62561-2
Colour of conductor: light grey ●
Cross-section of core: 50 mm2
Total length: 3500 mm

Gyártó: DEHN
Típus: CUI L 20 GR 3.5M
Cikksz.: 830208
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of conductor Cu
Material of insulation XLPE
Diameter Ø conductor 20 mm
Standard EN 62561-2
Colour of conductor light grey ●
Cross-section of core 50 mm2
Total length 3500 mm

A 830208 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 830208 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 830218 CUI L 20 GR 5M

GTIN 4013364106123, Vámtarifa szám (EU): 85389099, Bruttó súly: 4.27 kg, PU: 1.00 db.

Képek

További információ

CUI Conductor, 5000 mm long
CUI conductor for avoiding touch voltages on
down conductors.
Material of conductor: Cu
Material of insulation: XLPE
Diameter Ø conductor: 20 mm
Standard: EN 62561-2
Colour of conductor: light grey ●
Cross-section of core: 50 mm2
Total length: 5000 mm

Gyártó: DEHN
Típus: CUI L 20 GR 5M
Cikksz.: 830218
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of conductor Cu
Material of insulation XLPE
Diameter Ø conductor 20 mm
Standard EN 62561-2
Colour of conductor light grey ●
Cross-section of core 50 mm2
Total length 5000 mm

A 830218 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 830218 terméket hozzáadtuk a kosárhoz.

Webshop indítása
