Szalagcsőbilincs felfogórudakhoz

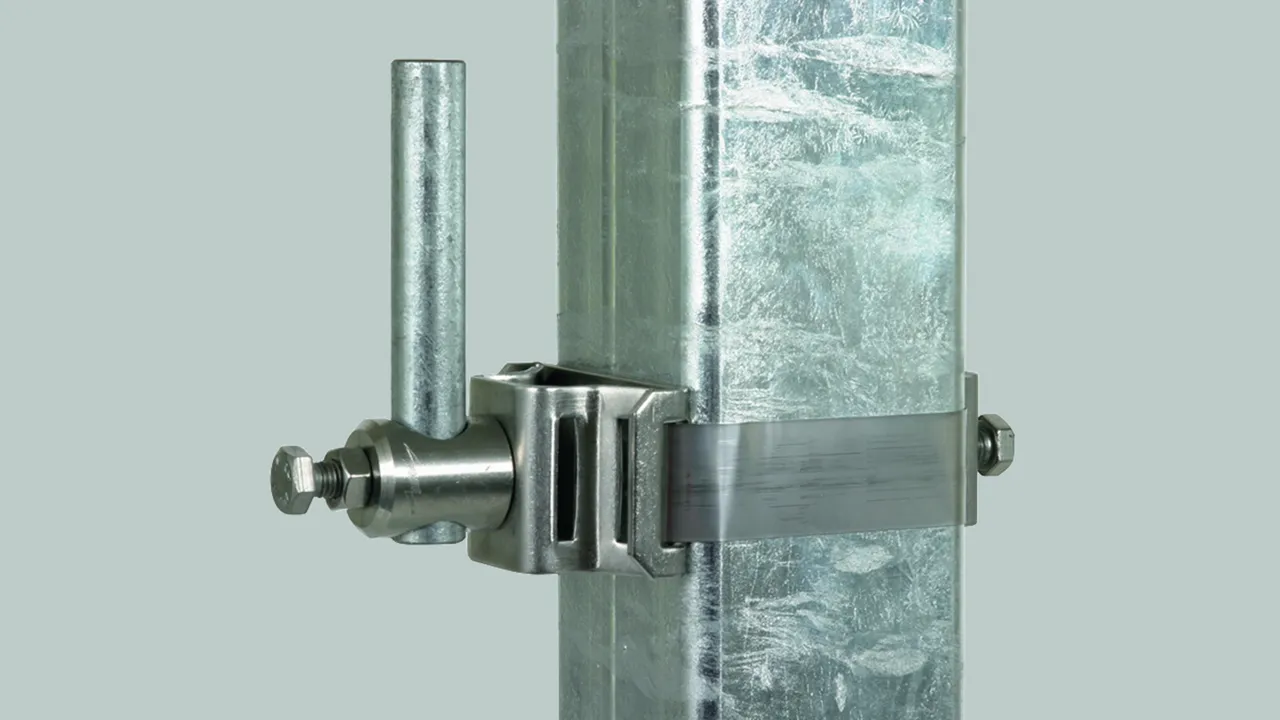

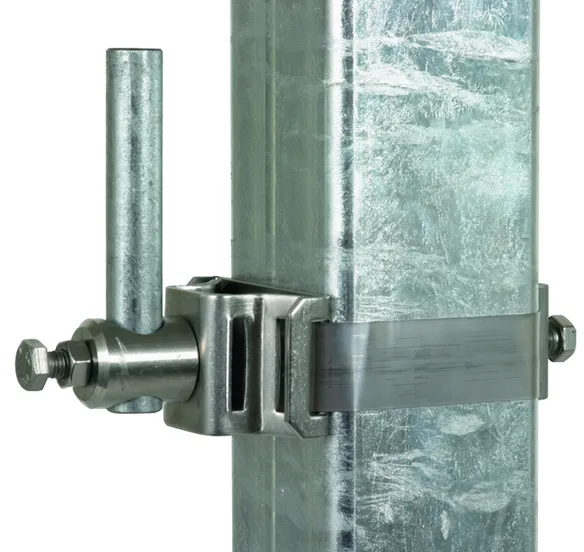

For fixing as well as lightning-current-carrying-capable contacting of the air-termination rod e.g. at metal substructures of photovoltaic (PV) installations (square hollow profile); typically installed at steel frame or reinforced concrete structures. For mounting at pipes, the pressure plate (flat plate 2x angled) has to be removed. Each air-termination rod has to be installed with two pipe clamps.
The maximum free length of the respective air-termination rod according to the wind load has to be considered for the installation.

1 Termék

Cikkszám 540105 BRS 50.300 BB16 8 V2A

GTIN 4013364115880, Vámtarifa szám (EU): 85359000, Bruttó súly: 359.30 g, PU: 1.00 db.

Képek

További információ

Pipe clamp for air-termination rods
Pipe clamp for air-termination rods for both fixing and lightning-current-carrying-capable contacting of the air-termination rod, e.g. at metal substructures
of PV installations
Usually installed onto steel frame or reinforced steel
constructions.
Material of head / strip: StSt
Clamping range of square hollow profile : 40 x 60 to 70 x 70 mm
Clamping range of pipe: 50-300 mm
Connection Rd: 16 mm
Standard: EN 62561-1

Gyártó: DEHN
Típus: BRS 50.300 BB16 8 V2A
Cikksz.: 540105
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of head / strip StSt
Clamping range of square hollow profile 40 x 60 to 70 x 70 mm
Clamping range of pipe 50-300 mm
Connection Rd 16 mm

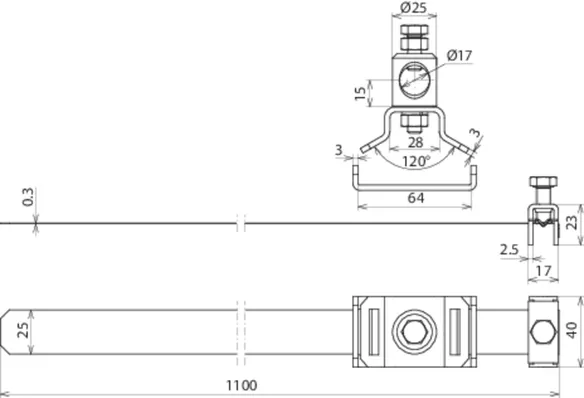

Dimensions of tensioning strap 1100 x 25 x 0.3 mm
Standard EN 62561-1
