DEHNcon-H

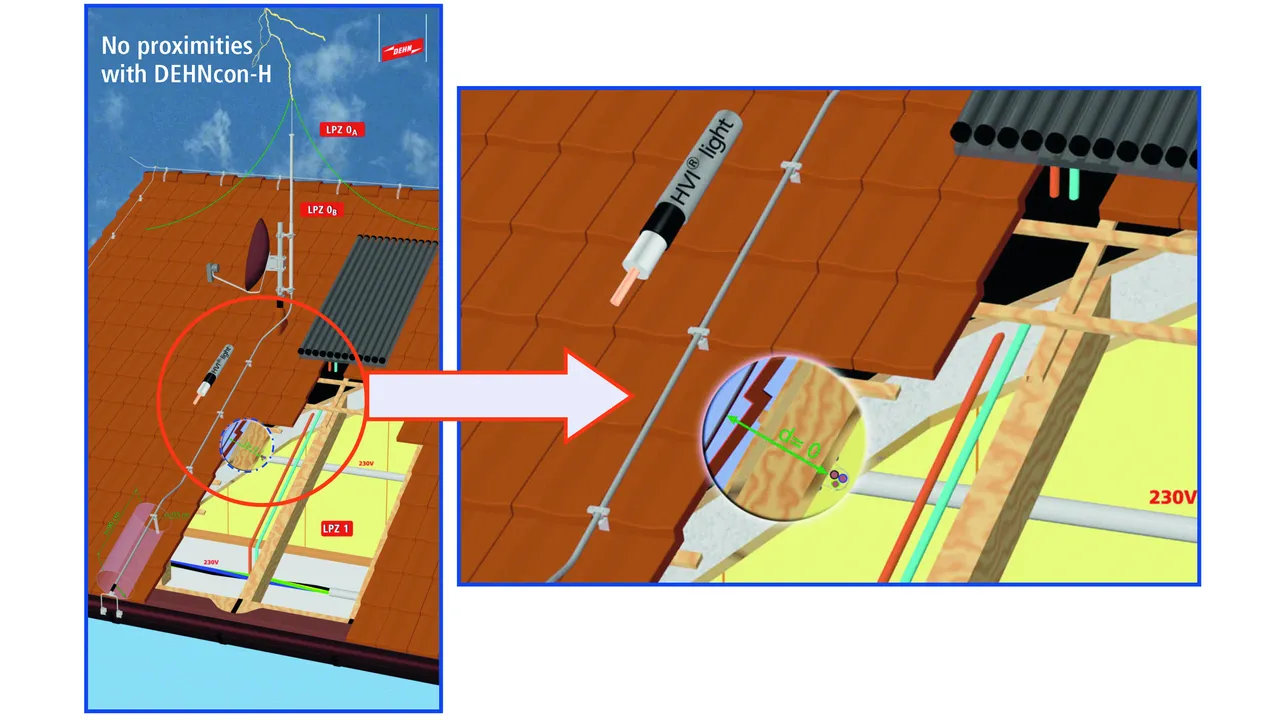

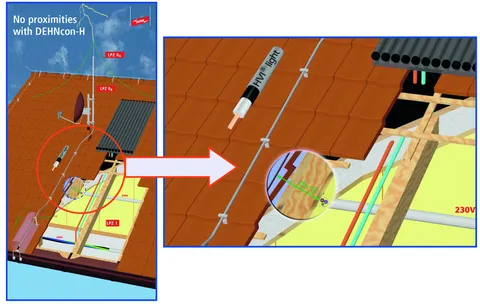

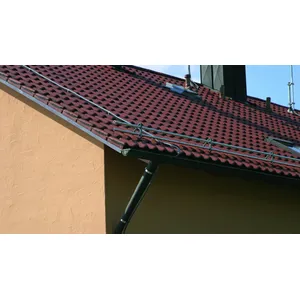

When installing bare, uninsulated air-termination conductors directly on the roof, the separation distance to electrical and metal systems installed under the roof must be kept in accordance with the state of the art and lightning protection standard IEC/EN 62305-3 (VDE 0185-305-3). Often cables, pipes and metal parts are installed under the rroofing, i.e. close to the air-termination system or down conductor thus featuring a problem of proximity. The solution of this problem is a separated air-termination system with high-voltage-resistant, insulated down conductors.

– New type of isolated air-termination system for transmitters/receivers (satellite dish, terrestrial antenna) or whole buildings or parts of a building
– Visually pleasing design since the HVI light Conductor is installed in the supporting tube, reduced dimensions of the supporting tubes (Al pipe 40x5 mm) and low weight of the whole structure, also suitable for retrofitting on antenna poles
– Interior sealing end with a flexible StSt strip coming out at the bottom of the supporting tube, for connection to the equipotential bonding
– High-voltage-resistant, insulated down conductor for keeping the separation distance from electrically conductive parts according to IEC/EN 62305-3
– Equivalent separation distance s ≤ 45 cm (air), s ≤ 90 cm (solid building material)
– Supporting tube with insulating section of glass-fibre reinforced plastic (GRP) tube Ø30 mm
– Material factor km = 0.7
– Light grey colour, UV stabilised

HVI light conductor meets the requirements of EN 62561-2.

Details

Detail – supporting tube with installed conductor.

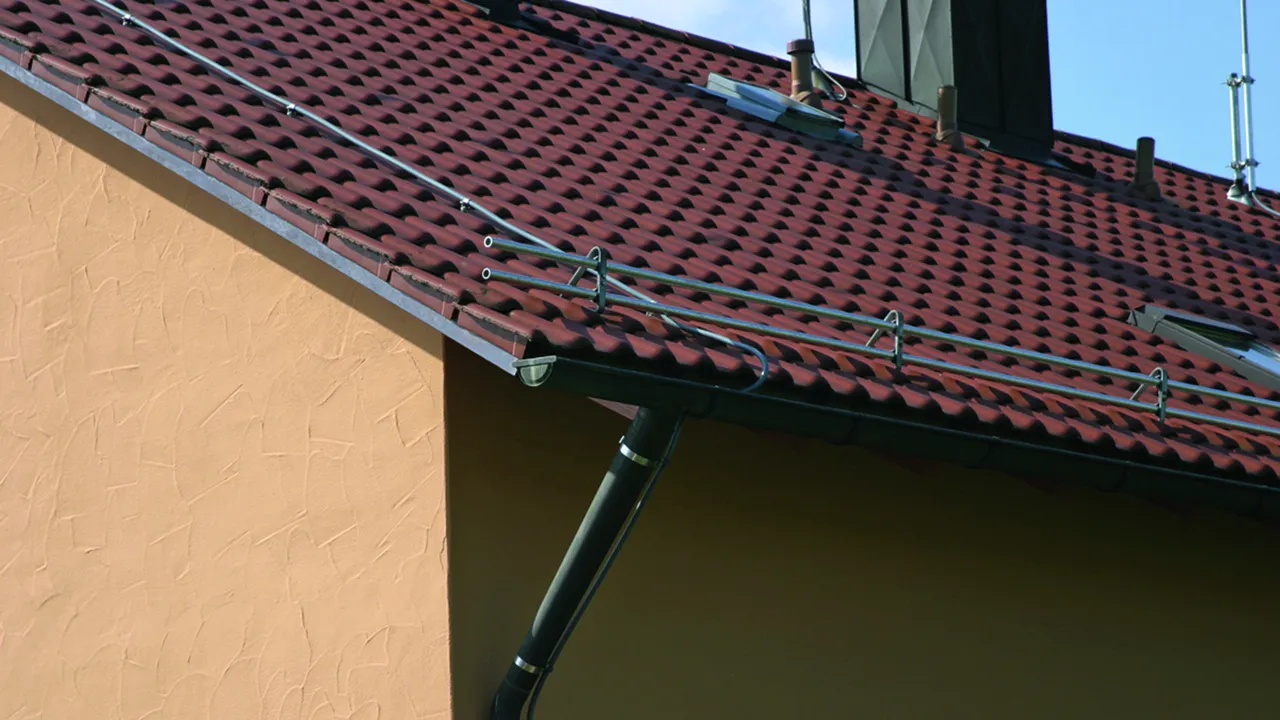

lorem ipsum

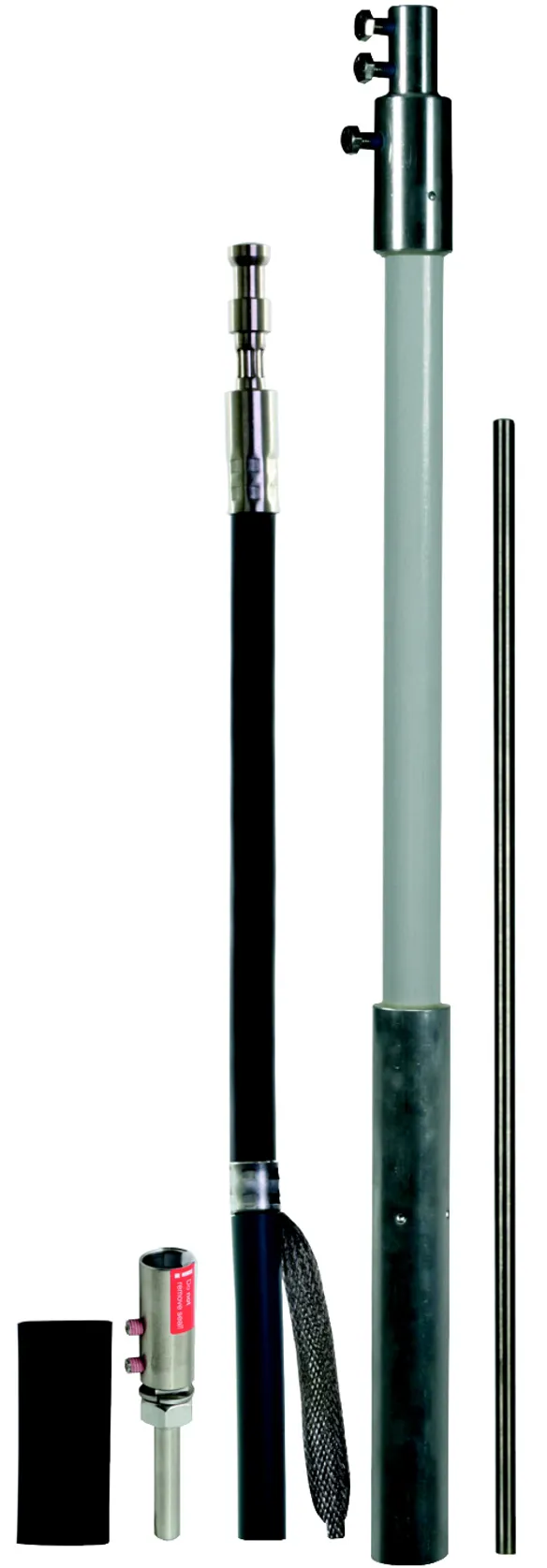

HVI light Conductor inside the supporting tube with air-termination rod

With interior sealing end and air-termination rod StSt Ø10 mm.

5 Termékek

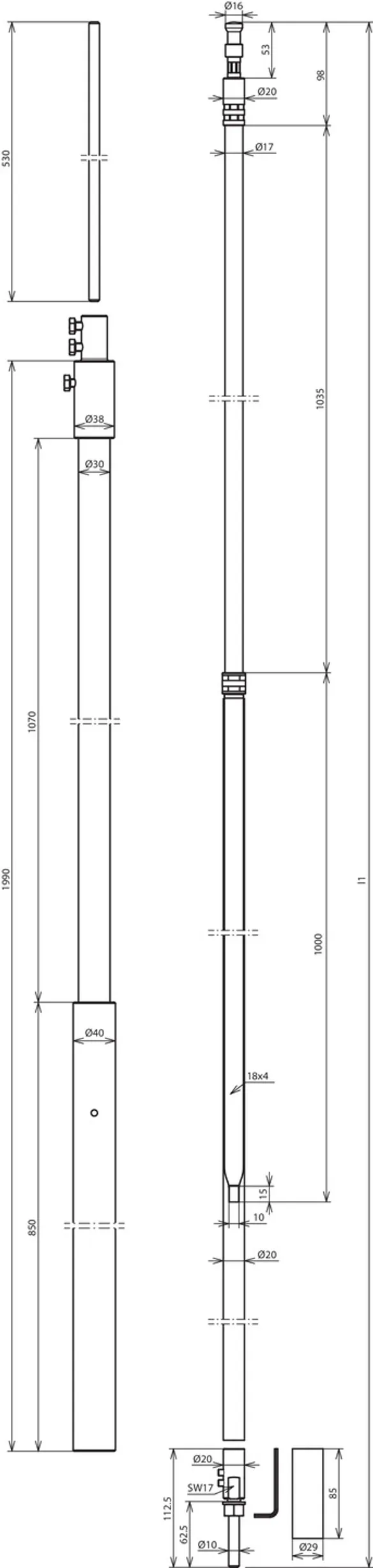

Cikkszám 819255 HVI LI 20 L6M SR1990 FSP500 GFK AL V2A

GTIN 4013364255371, Vámtarifa szám (EU): 85389099, Bruttó súly: 6.84 kg, PU: 1.00 db.

Kifutott termék:

Képek

További információ

DEHNcon-H HVI light Conductor in supporting tube 1990 mm with air-termination rod 500 mm
DEHNcon-H isolated air-termination system e.g. of transmitting/receiving systems
(parabolic, terrestrial antennas).
Visually pleasing design since the HVI light Conductor is installed inside the supporting tube
High-voltage-resistant insulated down conductor allows to keep the separation distance from electrically conductive parts according to IEC/EN 62305-3
Equivalent separation distance s =< 45 cm (in air)
or s =< 90 cm (solid material).
The supporting tubes are dimensioned according to Eurocode.
HVI light Conductor installed in the supporting tube, with special integrated sealing end and air-termination tip Ø10 mm, 500 mm long.
Material of supporting tube: GRP / Al
Length of supporting tube: 1990 mm
Diameter Ø conductor: 20 mm
Colour of conductor: grey ●
Material of conductor: Cu
Equivalent separation distance s (air): ≤ 45 cm
Minimum order length: 6 m
Max. gust wind speed: 240 km/h
Max. free length: 1890 mm
Min. clamping length: 600 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: HVI LI 20 L6M SR1990 FSP500 GFK AL V2A
Cikksz.: 819255
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 1990 mm
Length of air-termination rod 500 mm
Material of conductor Cu
Equivalent separation distance s (air) ≤ 45 cm
Minimum order length 6 m
Max. gust wind speed 240 km/h
Max. free length 1890 mm
Min. clamping length 600 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 819255 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 819255 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 819256 HVI LI 20 L6M SR1990 FSP1000 GFK AL V2A

GTIN 4013364255388, Vámtarifa szám (EU): 85389099, Bruttó súly: 7.14 kg, PU: 1.00 db.

Kifutott termék:

Képek

További információ

DEHNcon-H HVI light Conductor in supporting tube 1990 mm with air-termination rod 1000 mm
DEHNcon-H isolated air-termination system e.g. of transmitting/receiving systems
(parabolic, terrestrial antennas).
Visually pleasing design since the HVI light Conductor is installed inside the supporting tube
High-voltage-resistant insulated down conductor allows to keep the separation distance from electrically conductive parts according to IEC/EN 62305-3
Equivalent separation distance s =< 45 cm (in air)
or s =< 90 cm (solid material).
The supporting tubes are dimensioned according to Eurocode.
HVI light Conductor installed in the supporting tube, with special integrated sealing end and air-termination tip Ø10 mm, 1000 mm long.
Material of supporting tube: GRP / Al
Length of supporting tube: 1990 mm
Diameter Ø conductor: 20 mm
Colour of conductor: grey ●
Material of conductor: Cu
Equivalent separation distance s (air): ≤ 45 cm
Minimum order length: 6 m
Max. gust wind speed: 200 km/h
Max. free length: 2390 mm
Min. clamping length: 600 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: HVI LI 20 L6M SR1990 FSP1000 GFK AL V2A
Cikksz.: 819256
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 1990 mm
Length of air-termination rod 1000 mm
Material of conductor Cu
Equivalent separation distance s (air) ≤ 45 cm
Minimum order length 6 m
Max. gust wind speed 200 km/h
Max. free length 2390 mm
Min. clamping length 600 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 819256 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 819256 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 819257 HVI LI 20 L6M SR2640 FSP500 GFK AL V2A

GTIN 4013364255395, Vámtarifa szám (EU): 85389099, Bruttó súly: 7.79 kg, PU: 1.00 db.

Kifutott termék:

Képek

További információ

DEHNcon-H HVI light inside the supporting tube, 2640 mm, air-termination rod 500 mm
DEHNcon-H isolated air-termination system e.g. of transmitting/receiving systems
(parabolic, terrestrial antennas).
Visually pleasing design since the HVI light Conductor is installed inside the supporting tube
High-voltage-resistant insulated down conductor allows to keep the separation distance from electrically conductive parts according to IEC/EN 62305-3
Equivalent separation distance s =< 45 cm (in air)
or s =< 90 cm (solid material).
The supporting tubes are dimensioned according to Eurocode.
HVI light Conductor installed in the supporting tube, with special integrated sealing end and air-termination tip Ø10 mm, 500 mm long.
Material of supporting tube: GRP / Al
Length of supporting tube: 2640 mm
Diameter Ø conductor: 20 mm
Colour of conductor: grey ●
Material of conductor: Cu
Equivalent separation distance s (air): ≤ 45 cm
Minimum order length: 6 m
Max. gust wind speed: 240 km/h
Max. free length: 2540 mm
Min. clamping length: 600 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: HVI LI 20 L6M SR2640 FSP500 GFK AL V2A
Cikksz.: 819257
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 2640 mm
Length of air-termination rod 500 mm
Material of conductor Cu
Equivalent separation distance s (air) ≤ 45 cm
Minimum order length 6 m
Max. gust wind speed 240 km/h
Max. free length 2540 mm
Min. clamping length 600 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 819257 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 819257 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 819258 HVI LI 20 L6M SR2640 FSP1000 GFK AL V2A

GTIN 4013364255418, Vámtarifa szám (EU): 85389099, Bruttó súly: 8.09 kg, PU: 1.00 db.

Kifutott termék:

Képek

További információ

DEHNcon-H HVI light Conductor in supporting tube 2640 mm with air-termation rod 1000 mm
DEHNcon-H isolated air-termination system e.g. of transmitting/receiving systems
(parabolic, terrestrial antennas).
Visually pleasing design since the HVI light Conductor is installed inside the supporting tube
High-voltage-resistant insulated down conductor allows to keep the separation distance from electrically conductive parts according to IEC/EN 62305-3
Equivalent separation distance s =< 45 cm (in air)
or s =< 90 cm (solid material).
The supporting tubes are dimensioned according to Eurocode.
HVI light Conductor installed in the supporting tube, with special integrated sealing end and air-termination tip Ø10 mm, 1000 mm long.
Material of supporting tube: GRP / Al
Length of supporting tube: 2640 mm
Diameter Ø conductor: 20 mm
Colour of conductor: grey ●
Material of conductor: Cu
Equivalent separation distance s (air): ≤ 45 cm
Minimum order length: 6 m
Max. gust wind speed: 201 km/h
Max. free length: 3040 mm
Min. clamping length: 600 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: HVI LI 20 L6M SR2640 FSP1000 GFK AL V2A
Cikksz.: 819258
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 2640 mm
Length of air-termination rod 1000 mm
Material of conductor Cu
Equivalent separation distance s (air) ≤ 45 cm
Minimum order length 6 m
Max. gust wind speed 201 km/h
Max. free length 3040 mm
Min. clamping length 600 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 819258 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 819258 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 819259 HVI LI 20 L7.5M SR5040 FSP500 GFK AL V2A

GTIN 4013364256088, Vámtarifa szám (EU): 85389099, Bruttó súly: 12.20 kg, PU: 1.00 db.

Képek

További információ

DEHNcon-H HVI light Conductor in supporting tube 5040 mm with air-termination rod 500 mm
DEHNcon-H isolated air-termination system e.g. of transmitting/receiving systems
(parabolic, terrestrial antennas).
Visually pleasing design since the HVI light Conductor is installed inside the supporting tube
High-voltage-resistant insulated down conductor allows to keep the separation distance from electrically conductive parts according to IEC/EN 62305-3
Equivalent separation distance s =< 45 cm (in air)
or s =< 90 cm (solid material).
The supporting tubes are dimensioned according to Eurocode.
HVI light Conductor installed in the supporting tube, with special integrated sealing end and air-termination tip Ø10 mm, 500 mm long.
Material of supporting tube: GRP / Al
Length of supporting tube: 5040 mm
Diameter Ø conductor: 20 mm
Colour of conductor: grey ●
Material of conductor: Cu
Equivalent separation distance s (air): ≤ 45 cm
Minimum order length: 7.5 m
Max. gust wind speed: 149 km/h
Max. free length: 4940 mm
Min. clamping length: 600 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: HVI LI 20 L7.5M SR5040 FSP500 GFK AL V2A
Cikksz.: 819259
vagy egyenértékű.



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 5040 mm
Length of air-termination rod 500 mm
Material of conductor Cu
Equivalent separation distance s (air) ≤ 45 cm
Minimum order length 7.5 m
Max. gust wind speed 149 km/h
Max. free length 4940 mm
Min. clamping length 600 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 819259 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 819259 terméket hozzáadtuk a kosárhoz.

Webshop indítása
