HVI power vezeték

High-voltage-resistant, insulated down conductor for maintaining the separation distance to electrically conductive parts according to IEC/EN 62305-3.

Applicable up to an equivalent separation distance s ≤ 90 cm (in air) or s ≤ 180 cm (solid material).

Thus, depending on the class of lightning protection system (LPS) the following maximum conductor lengths can be realised with one down conductor:
LPS I max. 11.25 m
LPS II max. 15.0 m
LPS III/IV max. 22.50 m

Lightning current carrying capability of 200 kA (10/350 µs) tested according to EN 62561-1.

The HVI power long Conductor meets the requirements according to EN 62561-2.
A processing temperature of -5 to +40 °C and a permanent temperature range (at fixed installation) of -30 up to +70 °C are to be minded.

HVI power Conductor (pre-assembled, installation inside of tube)

With head piece and connection element (loosely enclosed). Minimum order length 6 m, conductor length to be indicated when ordering (in steps of 0.5 m).

1 Termék

Cikkszám 819160 HVI P RIV 90 27 L6M SW

GTIN 4013364152298, Vámtarifa szám (EU): 85446010, Bruttó súly: 5.47 kg, PU: 1.00 db.

Képek

Open PDF

További információ

CAD fájlok

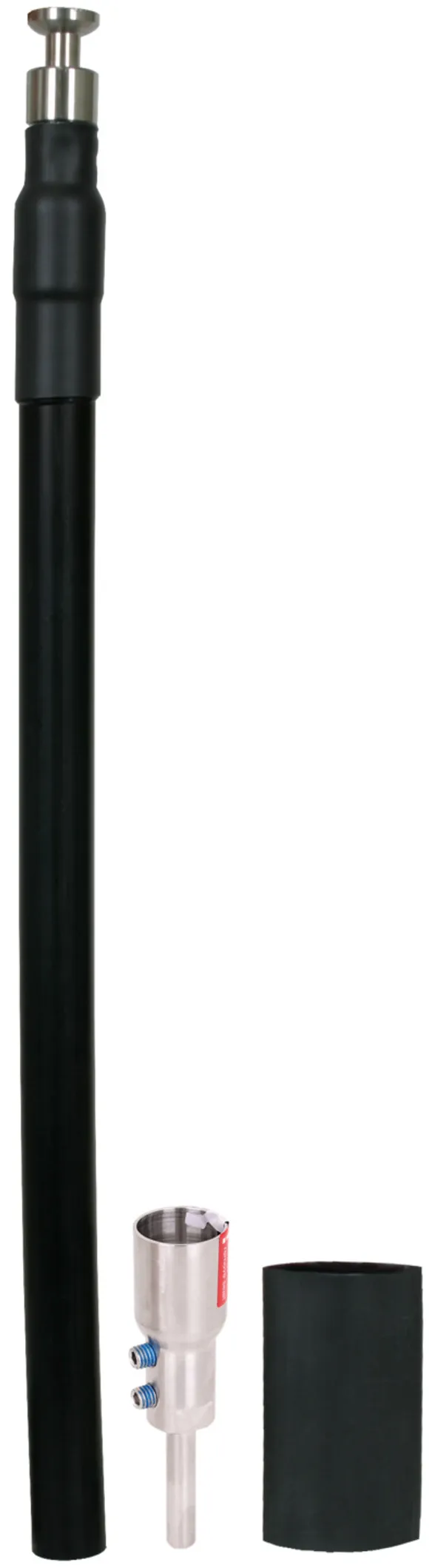

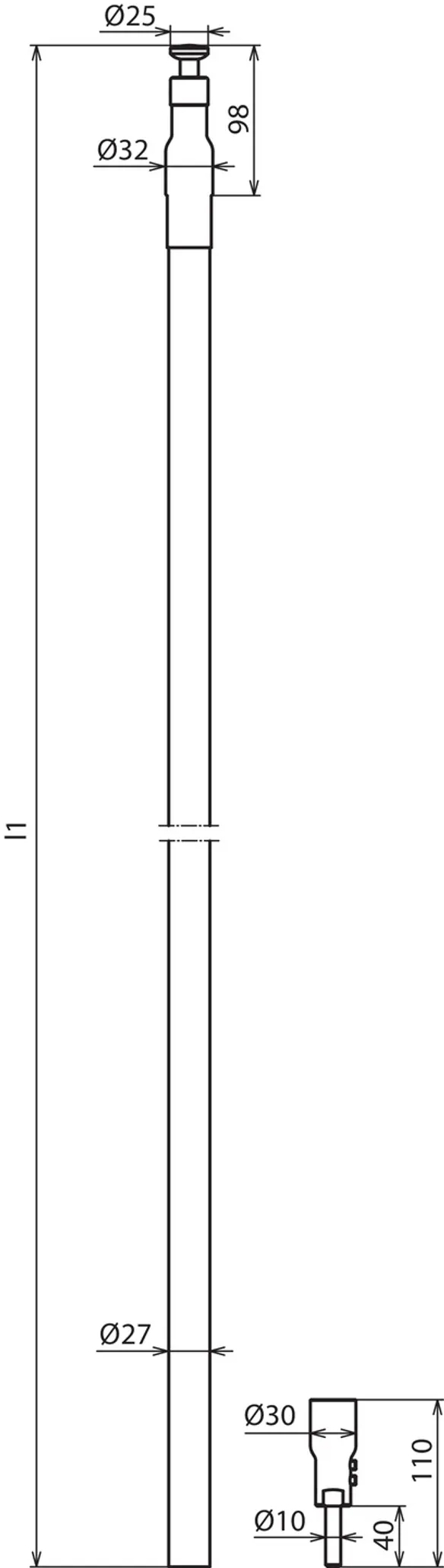

HVI power Conductor (pre-assembled for installation in the supp. tube)
HVI power Conductor
High-voltage-resistant down conductor for keeping the separation distance
from conductive parts according to IEC 62305-3
Equivalent separation distance s =< 90 cm (in air)
or s =< 180 cm (for solid material).
HVI power Conductor with pre-assembled head piece and loose connection element.
Weather-proof and UV-stabilised
Material of conductor: Cu
Material of insulation: PE
Material of sheath: PE
Diameter Ø conductor: 27 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: HVI P RIV 90 27 L6M SW
Cikksz.: 819160
vagy egyenértékű.

Tanúsítványok

Műszaki adatok

Material of conductor	Cu
Material of insulation	PE
Material of sheath	PE
Colour of conductor	black ●
Diameter Ø conductor	27 mm
Minimum order length	6 m
Maximum order length	35 m
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>)	<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Material of conductor	Cu
Material of insulation	PE
Material of sheath	PE
Colour of conductor	black ●
RAL colour	similar to 9011
Cross section of core	25 mm²
Lightning current carrying capability (class / I_imp )	H2 / 200 kA
Equivalent separation distance s (in air)	≤ 90 cm
Diameter Ø conductor	27 mm
Characteristics of sheath	UV stabilised and weather resistant
Minimum order length	6 m
Maximum order length	35 m
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>)	200 <TRANSLATION_PLACEHOLDER>
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>)	200 <TRANSLATION_PLACEHOLDER>
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>)	<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 819160 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 819160 terméket hozzáadtuk a kosárhoz.

Webshop indítása

HVI power Conductor (pre-assembled, installation outside of tube) for HVI power supporting tube GRP / Al

HVI power Conductor pre-assembled for installation outside of tube with head piece and connection element (loosely enclosed).
Connection kit for installation of the HVI power Conductor on HVI power supporting tubes GRP / Al consists of threaded pins, connection part, heat-shrinkable sleeve and fixing ring with slotted conductor holder (Ø27 mm) for the sealing end (including cable ties).
Minimum order length 6 m, conductor length to be indicated when ordering (in steps of 0.5 m).

1 Termék

Cikkszám 819165 HVI P RAV 90 27 L6M SW

GTIN 4013364272224, Vámtarifa szám (EU): 85446010, Bruttó súly: 6.28 kg, PU: 1.00 db.

Képek

Open PDF

További információ

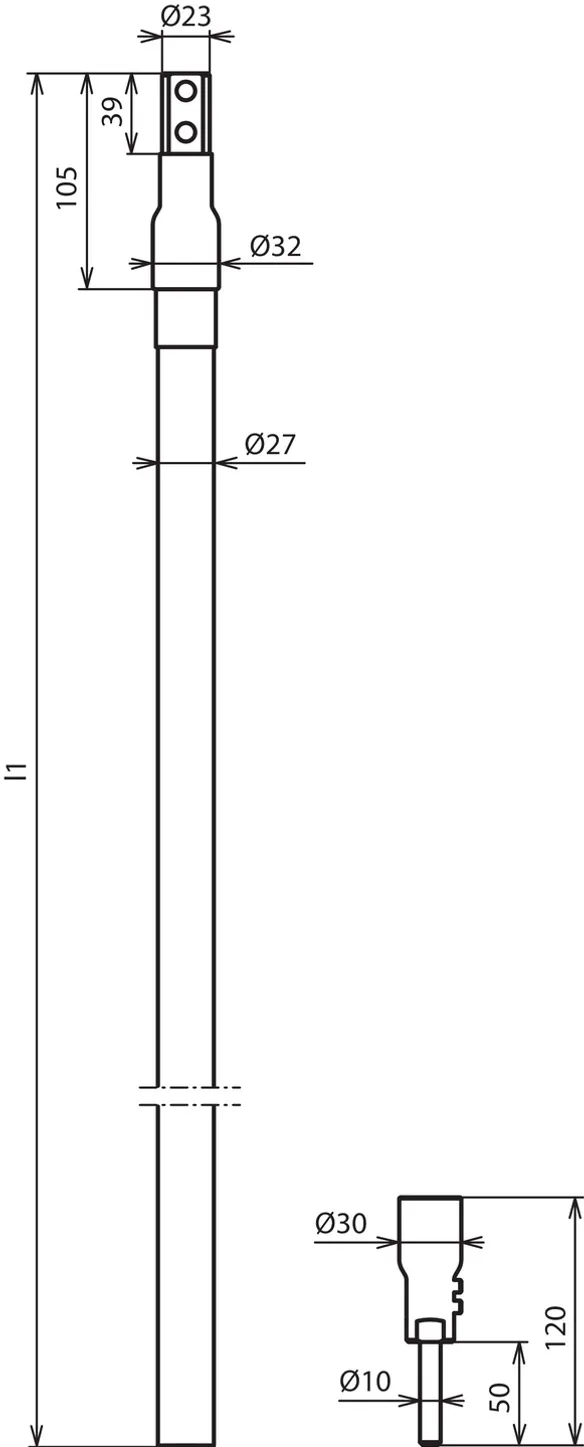

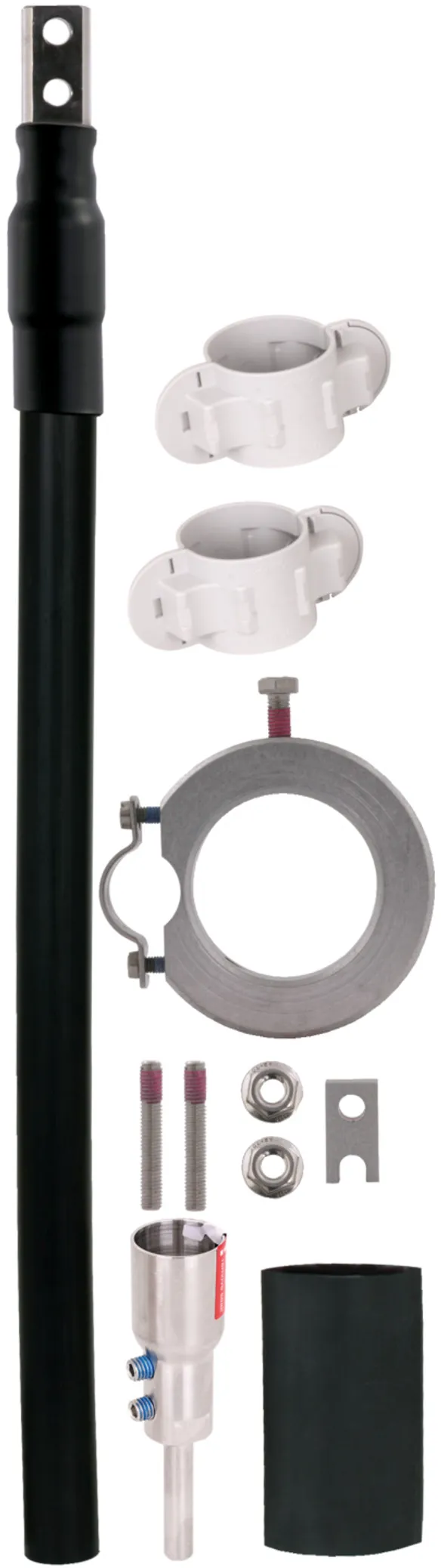

HVI power Conductor (pre-assembled for installation outside the supporting tube)
HVI power Conductor
High-voltage-resistant down conductor for keeping the separation distance from conductive parts according to IEC 62305-3
Equivalent separation distance s =< 90 cm (in air)
or s =< 180 cm (for solid material).
HVI power Conductor with pre-assembled head piece and loose connection element.
Weather-proof and UV-stabilised
Material of conductor: Cu
Material of insulation: PE
Material of sheath: PE
Diameter Ø conductor: 27 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: HVI P RAV 90 27 L6M SW
Cikksz.: 819165
vagy egyenértékű.

Tanúsítványok

Műszaki adatok

Material of conductor	Cu
Material of insulation	PE
Material of sheath	PE
Colour of conductor	black ●
Diameter Ø conductor	27 mm
Minimum order length	6 m
Maximum order length	35 m
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>)	<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Material of conductor	Cu
Material of insulation	PE
Material of sheath	PE
Colour of conductor	black ●
RAL colour	similar to 9011
Cross section of core	25 mm²
Lightning current carrying capability (class / I_imp )	H2 / 200 kA
Equivalent separation distance s (in air)	≤ 90 cm
Diameter Ø conductor	27 mm
Characteristics of sheath	UV stabilised and weather resistant
Minimum order length	6 m
Maximum order length	35 m
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>)	<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 819165 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 819165 terméket hozzáadtuk a kosárhoz.

Webshop indítása

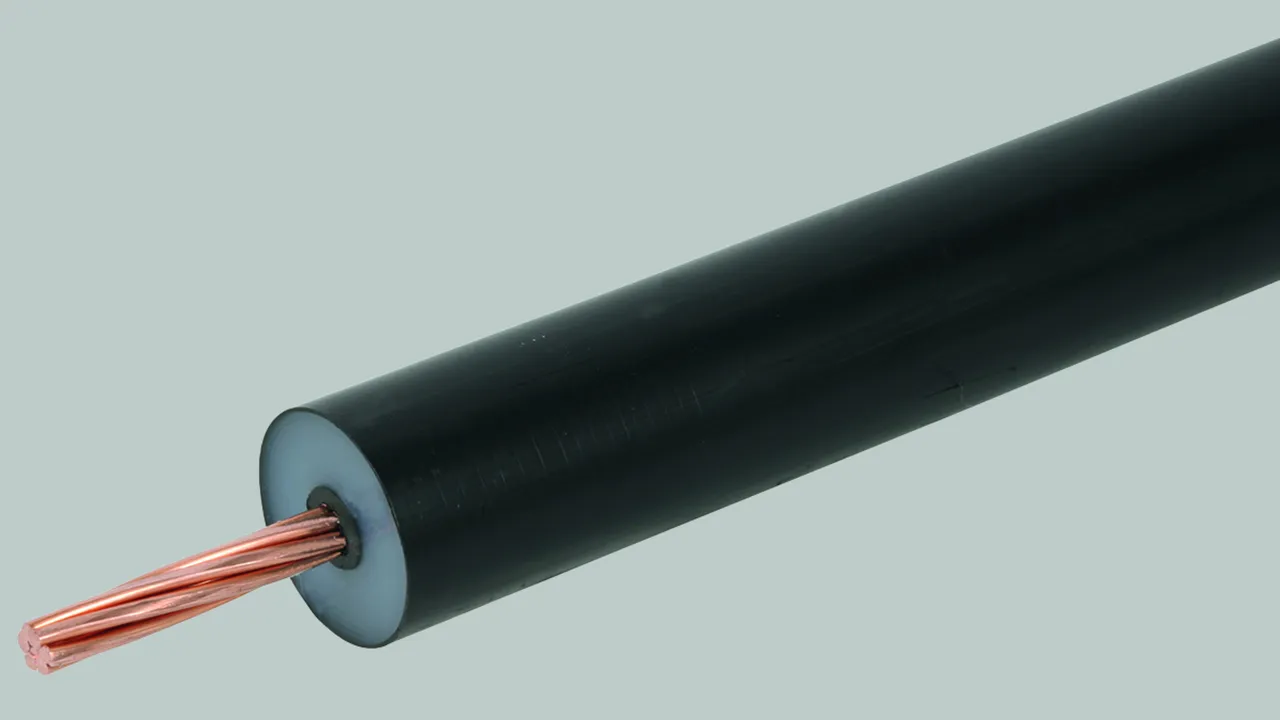

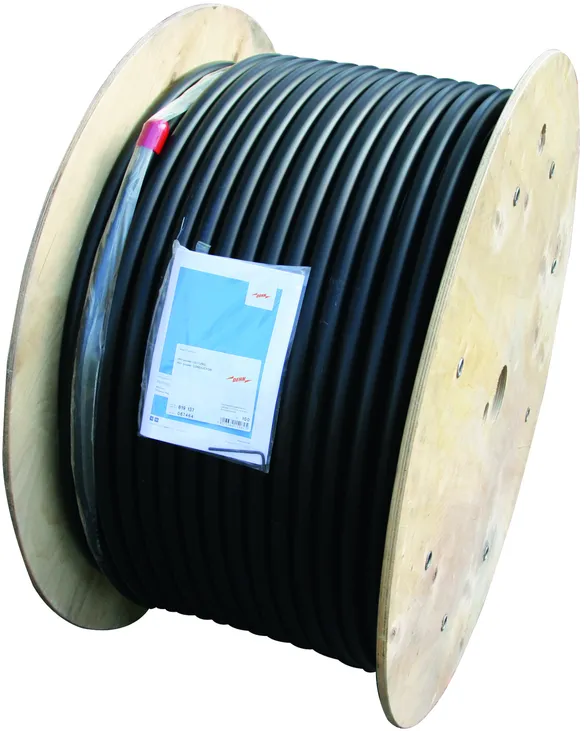

HVI power long Conductor (on reel)

The HVI power long Conductor for on-site assembly is delivered in a length of 100 m on a disposable plywood reel (diameter approx. 900 mm, width approx. 485 mm) including one Allen key.

1 Termék

Cikkszám 819137 HVI P LO 90 27 L100M SW

GTIN 4013364152625, Vámtarifa szám (EU): 85446010, Bruttó súly: 854.00 g/m, PU: 100.00 m

Képek

További információ

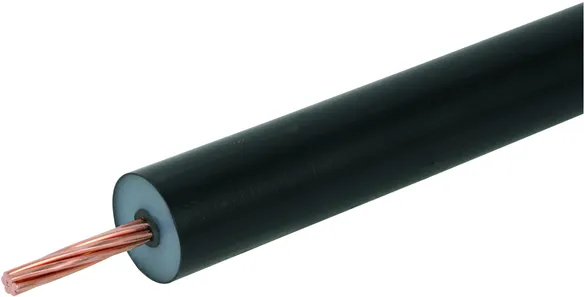

HVI®power long Conductor (on a reel)
HVI®power Conductor
High-voltage-resistant insulated down
conductor for keeping the separation distance from
conductive parts according to EN 62305-3
Equivalent separation distance s =< 90 cm (in air)
or s =< 180 cm (solid building material).
Weather-resistant and UV stabilised
Material of conductor: Cu
Material of insulation: PE
Material of sheath: PE
Diameter Ø conductor: 27 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: HVI P LO 90 27 L100M SW
Cikksz.: 819137
vagy egyenértékű.

Tanúsítványok

Műszaki adatok

Material of conductor	Cu
Material of insulation	PE
Material of sheath	PE
Colour of conductor	black ●
Diameter Ø conductor	27 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>)	<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Material of conductor	Cu
Material of insulation	PE
Material of sheath	PE
Colour of conductor	black ●
RAL colour	similar to 9011
Cross section of core	25 mm²
Lightning current carrying capability (class / I_imp )	H2 / 200 kA
Equivalent separation distance s (in air)	≤ 90 cm
Diameter Ø conductor	27 mm
Characteristics of sheath	UV stabilised and weather resistant
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>)	<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 819137 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 819137 terméket hozzáadtuk a kosárhoz.

Webshop indítása

HVI power long Conductor (cut to length)

HVI power long Conductor cut to length for on-site assembly. The conductor is available in coil (Part No. 819 163) or on reel (Part No. 819 161).
Conductor length to be indicated when ordering (in steps of 0.5 m).

2 Termékek

Cikkszám 819163 HVI P LO 90 27 L6...35M SW

GTIN 4013364280199, Vámtarifa szám (EU): 85446010, Bruttó súly: 5.65 kg, PU: 1.00 db.

Képek

További információ

HVI power long Conductor (cut to length), black
HVI power Conductor
High-voltage-resistant, insulated down conductor for keeping the separation distance from conductive parts according to IEC/EN 62305-3
Equivalent separation distance s =< 90 cm (in air)
or s =< 180 cm (solid building material)
Weather-resistant and UV-stabilised
Conductor cut to length 6.0 - 35.0 m
Material of conductor: Cu
Material of insulation: PE
Material of sheath: PE
Diameter Ø conductor: 27 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: HVI P LO 90 27 L6...35M SW
Cikksz.: 819163
vagy egyenértékű.

Tanúsítványok

Műszaki adatok

Material of conductor	Cu
Material of insulation	PE
Material of sheath	PE
Colour of conductor	black ●
Diameter Ø conductor	27 mm
Minimum order length	6 m
Maximum order length	35 m
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>)	<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Material of conductor	Cu
Material of insulation	PE
Material of sheath	PE
Colour of conductor	black ●
RAL colour	similar to 9011
Cross section of core	25 mm²
Lightning current carrying capability (class / I_imp )	H2 / 200 kA
Equivalent separation distance s (in air)	≤ 90 cm
Diameter Ø conductor	27 mm
Characteristics of sheath	UV stabilised and weather resistant
Minimum order length	6 m
Maximum order length	35 m
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>)	<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 819163 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 819163 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 819161 HVI P LO 90 27 L36...80M SW

GTIN 4013364281646, Vámtarifa szám (EU): 85446010, Bruttó súly: 35.40 kg, PU: 1.00 db.

Képek

További információ

HVI power long Conductor (cut to length), black
HVI power Conductor
High-voltage-resistant, insulated down conductor for keeping the separation distance from conductive parts according to IEC/EN 62305-3
Equivalent separation distance s =< 90 cm (in air)
or s =< 180 cm (solid building material)
Weather-resistant and UV-stabilised
Conductor cut to length 36.0 - 80.0 m
Material of conductor: Cu
Material of insulation: PE
Material of sheath: PE
Diameter Ø conductor: 27 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: HVI P LO 90 27 L36...80M SW
Cikksz.: 819161
vagy egyenértékű.

Tanúsítványok

Műszaki adatok

Material of conductor	Cu
Material of insulation	PE
Material of sheath	PE
Colour of conductor	black ●
Diameter Ø conductor	27 mm
Minimum order length	36 m
Maximum order length	80 m
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>)	<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Material of conductor	Cu
Material of insulation	PE
Material of sheath	PE
Colour of conductor	black ●
RAL colour	similar to 9011
Cross section of core	25 mm²
Lightning current carrying capability (class / I_imp )	H2 / 200 kA
Equivalent separation distance s (in air)	≤ 90 cm
Diameter Ø conductor	27 mm
Characteristics of sheath	UV stabilised and weather resistant
Minimum order length	36 m
Maximum order length	80 m
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>)	<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 819161 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 819161 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Results for products (0)

Results for content (0)

HVI power vezeték

HVI power Conductor (pre-assembled, installation inside of tube)

Cikkszám 819160 HVI P RIV 90 27 L6M SW

A 819160 termék hozzá lett adva a jegyzettömbhöz.

A 819160 terméket hozzáadtuk a kosárhoz.

HVI power Conductor (pre-assembled, installation outside of tube) for HVI power supporting tube GRP / Al

Cikkszám 819165 HVI P RAV 90 27 L6M SW

A 819165 termék hozzá lett adva a jegyzettömbhöz.

A 819165 terméket hozzáadtuk a kosárhoz.

HVI power long Conductor (on reel)

Cikkszám 819137 HVI P LO 90 27 L100M SW

A 819137 termék hozzá lett adva a jegyzettömbhöz.

A 819137 terméket hozzáadtuk a kosárhoz.

HVI power long Conductor (cut to length)

Cikkszám 819163 HVI P LO 90 27 L6...35M SW

A 819163 termék hozzá lett adva a jegyzettömbhöz.

A 819163 terméket hozzáadtuk a kosárhoz.

Cikkszám 819161 HVI P LO 90 27 L36...80M SW

A 819161 termék hozzá lett adva a jegyzettömbhöz.

A 819161 terméket hozzáadtuk a kosárhoz.

HVI power vezeték

HVI power Conductor (pre-assembled, installation inside of tube)

Cikkszám 819160 HVI P RIV 90 27 L6M SW

Ön nem jogosult a letöltésre 819160.stp

Ön nem jogosult a letöltésre 819160.igs

Ön nem jogosult a letöltésre 819160.jt

Ön nem jogosult a letöltésre 819160.dwg

Ön nem jogosult a letöltésre 819160m_D.dxf

A 819160 termék hozzá lett adva a jegyzettömbhöz.

A 819160 terméket hozzáadtuk a kosárhoz.

HVI power Conductor (pre-assembled, installation outside of tube) for HVI power supporting tube GRP / Al

Cikkszám 819165 HVI P RAV 90 27 L6M SW

A 819165 termék hozzá lett adva a jegyzettömbhöz.

A 819165 terméket hozzáadtuk a kosárhoz.

HVI power long Conductor (on reel)

Cikkszám 819137 HVI P LO 90 27 L100M SW

A 819137 termék hozzá lett adva a jegyzettömbhöz.

A 819137 terméket hozzáadtuk a kosárhoz.

HVI power long Conductor (cut to length)

Cikkszám 819163 HVI P LO 90 27 L6...35M SW

A 819163 termék hozzá lett adva a jegyzettömbhöz.

A 819163 terméket hozzáadtuk a kosárhoz.

Cikkszám 819161 HVI P LO 90 27 L36...80M SW

A 819161 termék hozzá lett adva a jegyzettömbhöz.

A 819161 terméket hozzáadtuk a kosárhoz.
