HVI power vezeték

Nagyfeszültségű, szigetelt levezetők a vezető részek közötti biztonsági távolság fenntartására. S ≤ 90 cm (levegőben) vagy s ≤ 180 cm (szilárd anyag) egyenértékű elválasztási távolságig történő felhasználásra.

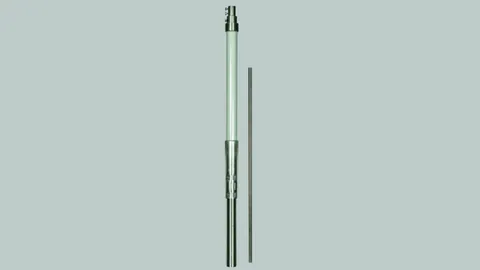

Támasztócső HVI power vezetékhez

Optically adapted installation of the HVI power Conductor inside of the supporting tube provides less wind exposed surface.
Applicable up to an equivalent separation distance s ≤ 90 cm (in air) or s ≤ 180 cm (solid material).
Conductor length to be indicated when ordering (in steps of 0.5 m).

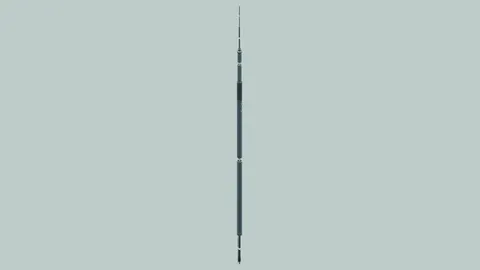

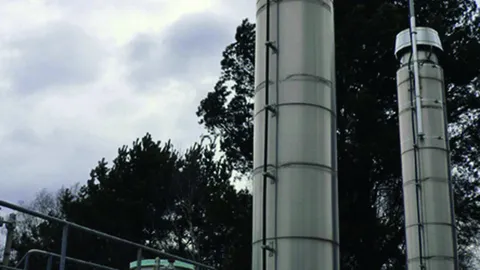

Felfogórúd HVI power vezetékkel

For a maximum free length of the whole air-termination system of 8.5 m.
Fixing has to be implemented with three variable supports (Part No. 105 345).
Transport length 6000 mm.

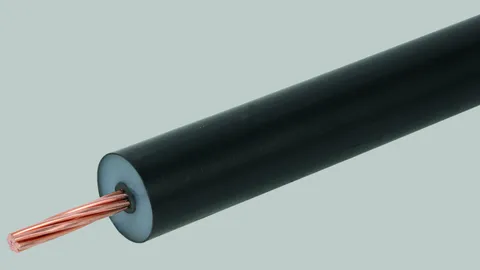

HVI power vezeték

High-voltage-resistant, insulated down conductor for maintaining the separation distance to electrically conductive parts according to IEC/EN 62305-3.
For use up to an equivalent separation distance s ≤ 90 cm (in air) or s ≤ 180 cm (solid material).

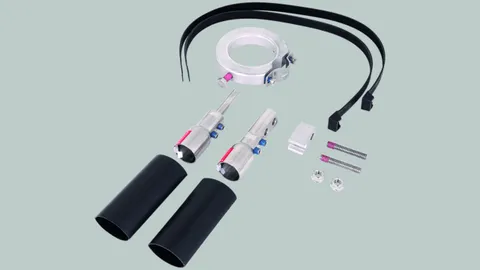

Csatlakozó elemek HVI power / HVI power long vezetékekhez

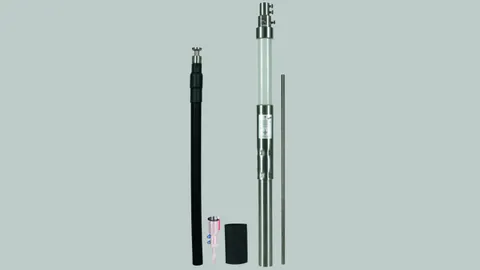

Támasztócsövek HVI power / HVI power long vezetékekhez

Kiegészítők HVI power / HVI power long vezetékekhez

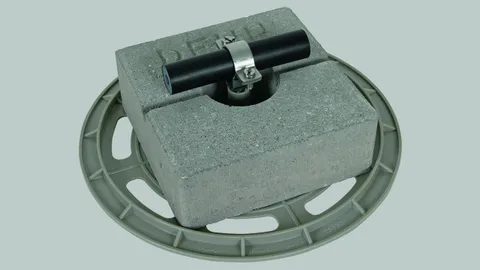

Vezetőtartók HVI power vezetékhez robbanásveszélyes terekhez

The HVI power Conductor is suitable for installation in explosion hazardous areas Ex zone 1 (gases, vapours, mists) as well as Ex zone 21 (dusts). The special installation conditions safely prevent electric sparks to neighbouring metal parts when lightning current flows through the HVI power Conductor.
The HVI power Conductor has to be installed in accordance with the installation instructions.

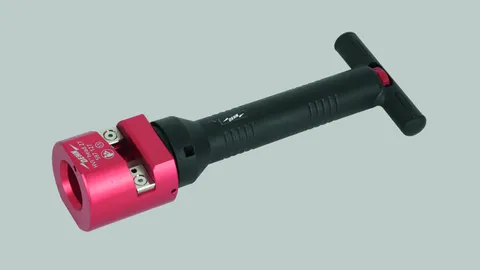

Kábelcsupaszoló szerszám HVI power vezetékekhez

Tool for stripping the semi-conductive sheath and the PE insulation of the HVI power Conductor (outer diameter 27 mm)
  • Tool consisting of handle and various exchangeable cutting heads
  • Stripping length of the HVI power Conductor is adjustable in steps of 0.2 mm (lock points) by the knob in the handle and is shown on the handle scale
HandlingApply the cutting head at the conductor end and turn clockwise with light pressure for cutting / stripping.Exchange of the cutting head without tool due to the bayonet coupling.

Végkiképzési szakasz, csatlakozás a "szigetelt gyűrű"-s vezetőhöz

If several plant components require protection, it is advisable not to route the HVI power Conductor of each air-termination system individually to the earth-termination system. The HVI power Conductors from the air-termination system can be connected to an "isolated ring conductor". From this "isolated ring conductor" several down conductors, HVI power Conductors, can then be led to the earth-termination system. Allowing for the calculated separation distance "s", the "isolated ring conductor" must be installed, e.g. on the roof, on spacers and concrete bases.

Végkiképzési szakasz, csatlakozás az "attika lemezburkolat"-hoz

If several plant components require protection, it is advisable not to route the HVI power Conductor of each air-termination system individually to the earth-termination system. The HVI power Conductors from the air-termination system can be connected to the capping of the roof parapet which serves as "isolated ring conductor". From the capping of the roof parapet several down conductors, HVI power Conductors, can then be led to the earth-termination system.

Végkiképzési szakasz épületszerkezeten

If HVI power Conductors are installed on a building, the calculated separation distance "s" in the sealing end range from metal parts on the building must be maintained. The sealing end range extends from the EB connection element to the earth-termination connection element.
If the HVI power Conductor is directly connected with an earth entry rod / earth-termination system, an EB element is not necessary. The sealing end range remains unconsidered.
