Támasztócsövek HVI power / HVI power long vezetékekhez

Supporting tube with interior sealing end and EB spring element.

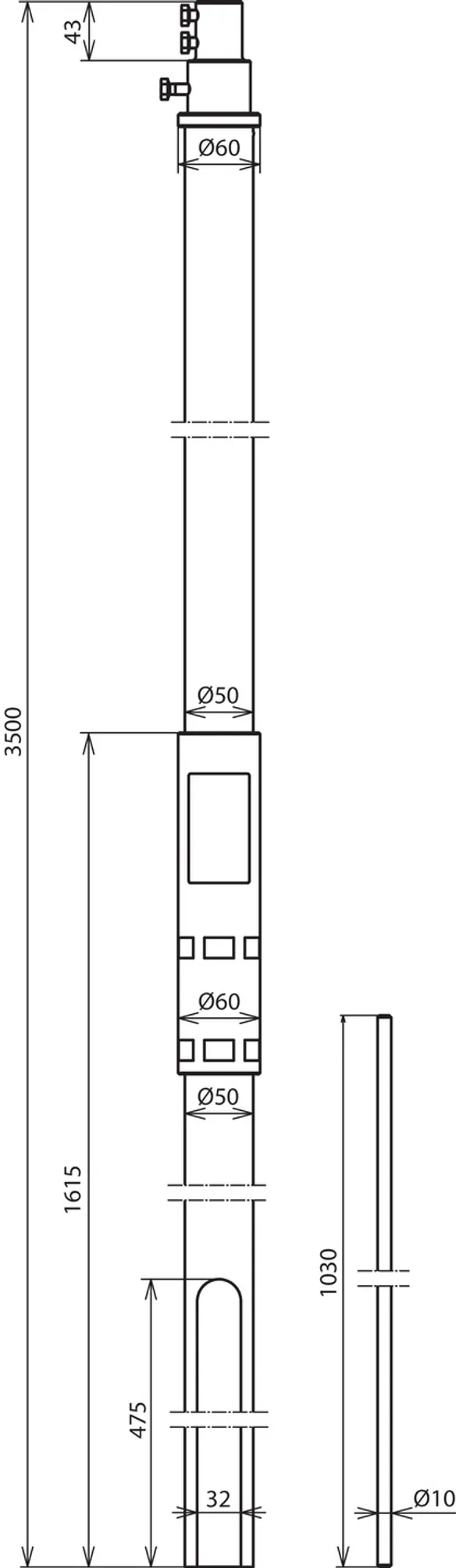

With air-termination rod

Supporting tube with interior sealing end and EB spring element.
Air-termination rod StSt, Ø10 mm, length 1000 mm.

4 Termékek

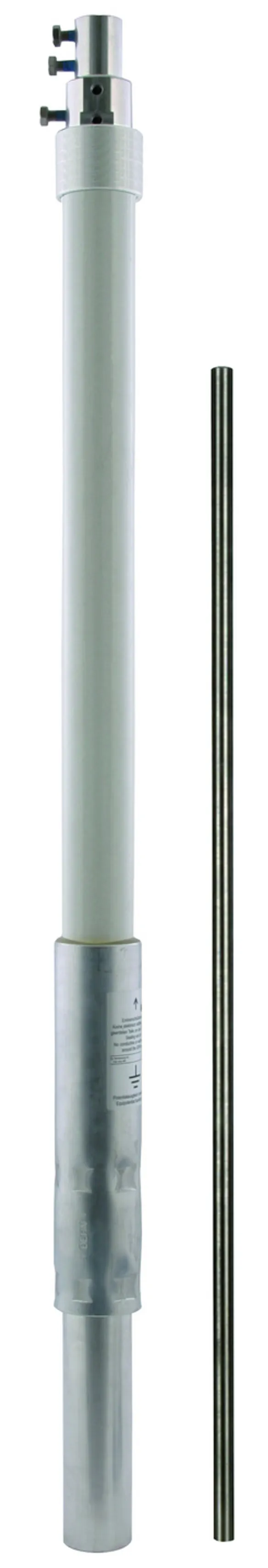

Cikkszám 105563 SR D50 3500 FSP1000 IA HVIP GFK AL

GTIN 4013364271937, Vámtarifa szám (EU): 85389099, Bruttó súly: 5.70 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductor with air-termation rod, 3500 mm long, GRP/Al
GRP/Al supporting tubes with integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 4000 mm
Max. gust wind speed (wall mounting, 1x HVI power inside): 201 km/h
Max. gust wind speed (wall mounting, 1x HVI power inside / outside): 190 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3500 FSP1000 IA HVIP GFK AL
Cikksz.: 105563
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 3500 mm
Outside diameter Ø 50 mm
Transport length 3500 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube yes
Max. free length with air-termination rod (wall mounting) 4000 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105563 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105563 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105565 SR D50 5000 FSP1000 IA HVIP GFK AL

GTIN 4013364271944, Vámtarifa szám (EU): 85389099, Bruttó súly: 8.10 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductor with air-termination rod 5000 mm long, GRP/Al
GRP/Al supporting tubes with integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 4000 mm
Max. gust wind speed (wall mounting, 1x HVI power inside): 201 km/h
Max. gust wind speed (wall mounting, 1x HVI power inside / outside): 180 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 5000 FSP1000 IA HVIP GFK AL
Cikksz.: 105565
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 5000 mm
Outside diameter Ø 50 mm
Transport length 5000 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube yes
Max. free length with air-termination rod (wall mounting) 4000 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105565 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105565 terméket hozzáadtuk a kosárhoz.

Webshop indítása

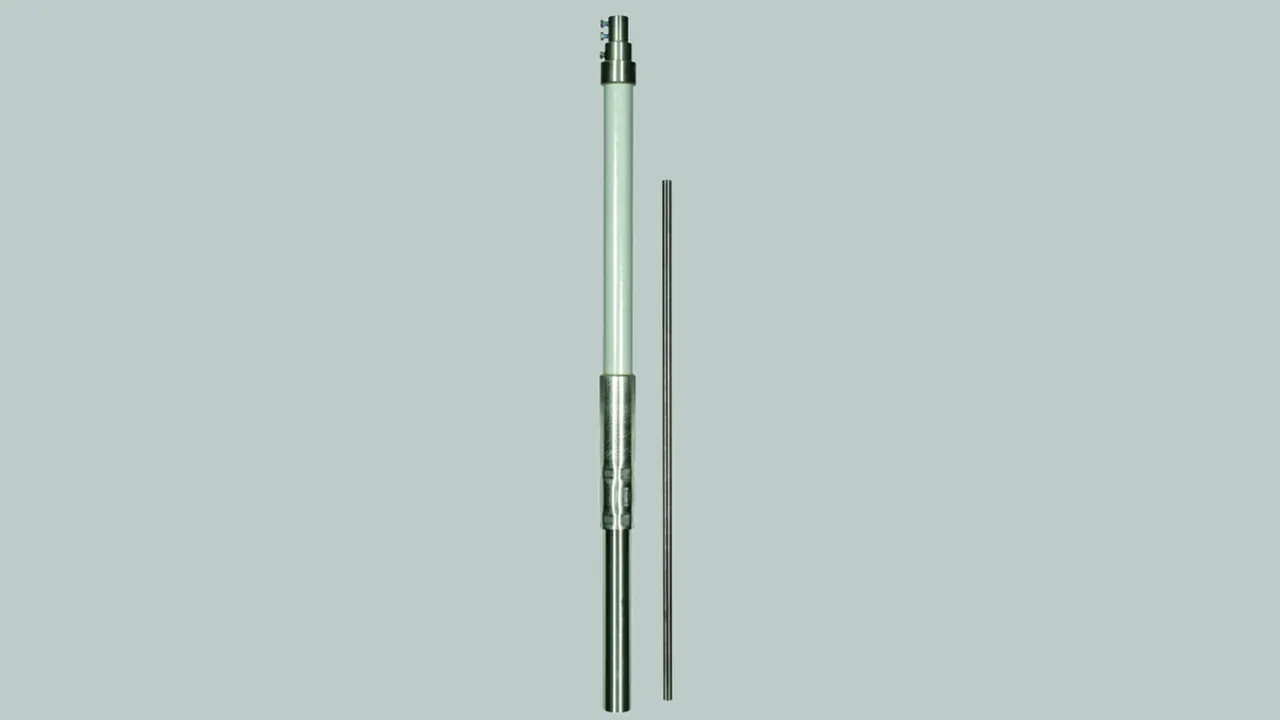

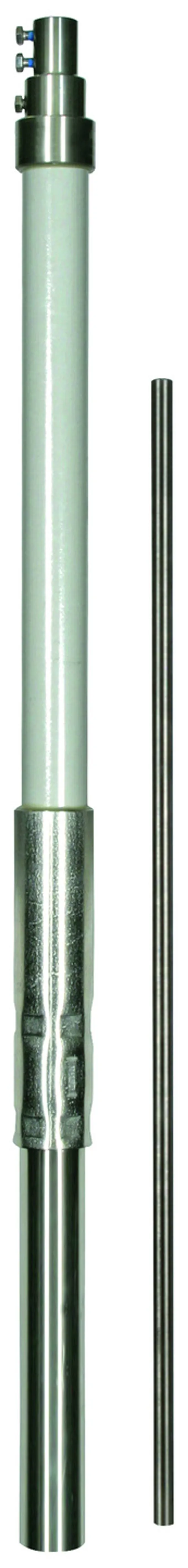

Cikkszám 105320 SR D50 3500 FSP1000 IP HVIP GFK V2A

GTIN 4013364152373, Vámtarifa szám (EU): 85389099, Bruttó súly: 10.60 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductor with air-termination rod, 3500 mm long, GRP/StSt
GRP/StSt supporting tubes with integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 4000 mm
Max. gust wind speed (wall mounting, 1x HVI power inside): 234 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3500 FSP1000 IP HVIP GFK V2A
Cikksz.: 105320
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / StSt
Length of supporting tube 3500 mm
Outside diameter Ø 50 mm
Transport length 3500 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube no
Max. free length with air-termination rod (wall mounting) 4000 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105320 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105320 terméket hozzáadtuk a kosárhoz.

Webshop indítása

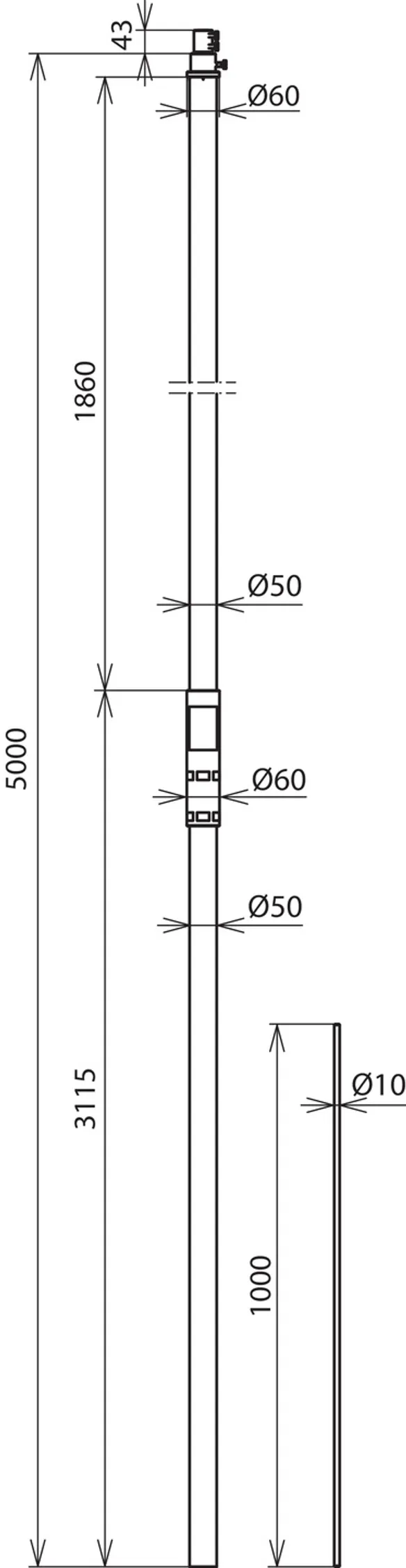

Cikkszám 105322 SR D50 5000 FSP1000 IP HVIP GFK V2A

GTIN 4013364152380, Vámtarifa szám (EU): 85389099, Bruttó súly: 15.80 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductor with air-termination rod, 5000 mm long, GRP/StSt
GRP/StSt supporting tubes with integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 4000 mm
Max. gust wind speed (wall mounting, 1x HVI power inside): 232 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 5000 FSP1000 IP HVIP GFK V2A
Cikksz.: 105322
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / StSt
Length of supporting tube 5000 mm
Outside diameter Ø 50 mm
Transport length 5000 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube no
Max. free length with air-termination rod (wall mounting) 4000 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105322 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105322 terméket hozzáadtuk a kosárhoz.

Webshop indítása

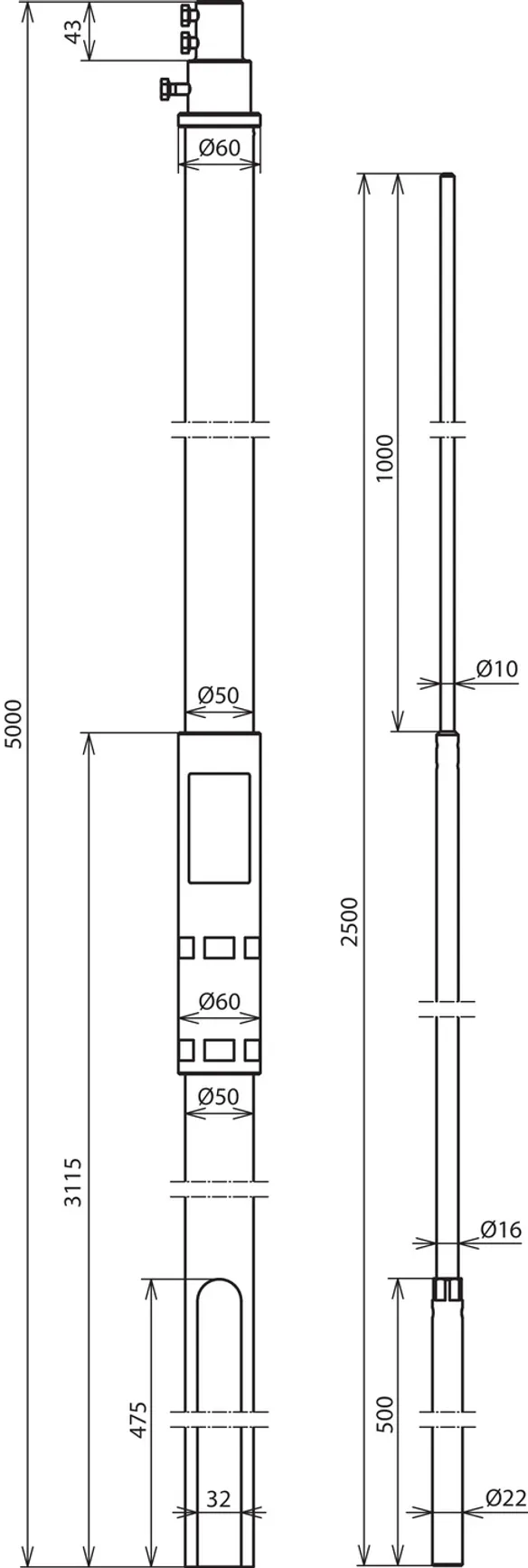

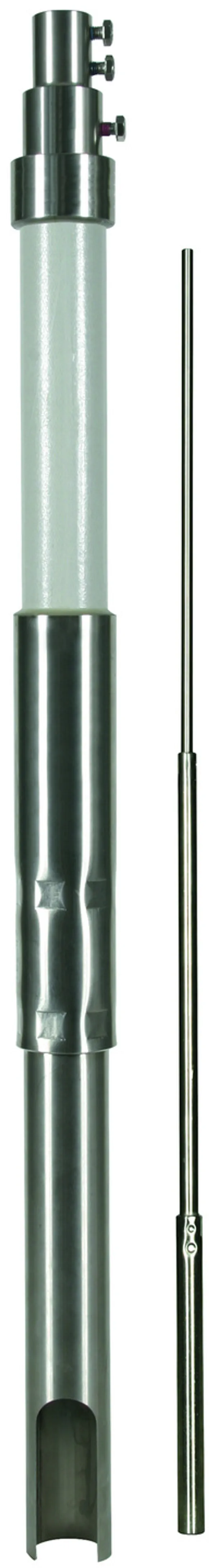

With air-termination rod

Supporting tube with interior sealing end and EB spring element.
Air-termination rod StSt, Ø22 / 16 / 10 mm, length 2500 mm.

4 Termékek

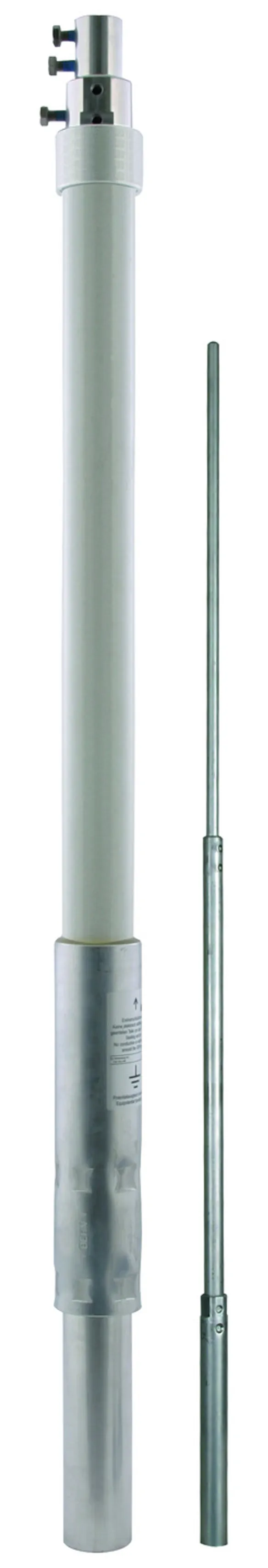

Cikkszám 105573 SR D50 3500 FS2500 IA HVIP GFK AL

GTIN 4013364271975, Vámtarifa szám (EU): 85389099, Bruttó súly: 6.56 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductor with air-termination rod, 3500 mm long, GRP/Al
GRP/Al supporting tubes with integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5500 mm
Max. gust wind speed (wall mounting, 1x HVI power inside): 168 km/h
Max. gust wind speed (wall mounting, 1x HVI power inside / outside): 144 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3500 FS2500 IA HVIP GFK AL
Cikksz.: 105573
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 3500 mm
Outside diameter Ø 50 mm
Transport length 3500 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube yes
Max. free length with air-termination rod (wall mounting) 5500 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105573 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105573 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105575 SR D50 5000 FS2500 IA HVIP GFK AL

GTIN 4013364272026, Vámtarifa szám (EU): 85389099, Bruttó súly: 8.90 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductor with air-termination rod, 5000 mm long, GRP/Al
GRP/Al supporting tubes with integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5500 mm
Max. gust wind speed (wall mounting, 1x HVI power inside): 163 km/h
Max. gust wind speed (wall mounting, 1x HVI power inside / outside): 140 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 5000 FS2500 IA HVIP GFK AL
Cikksz.: 105575
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 5000 mm
Outside diameter Ø 50 mm
Transport length 5000 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube yes
Max. free length with air-termination rod (wall mounting) 5500 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105575 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105575 terméket hozzáadtuk a kosárhoz.

Webshop indítása

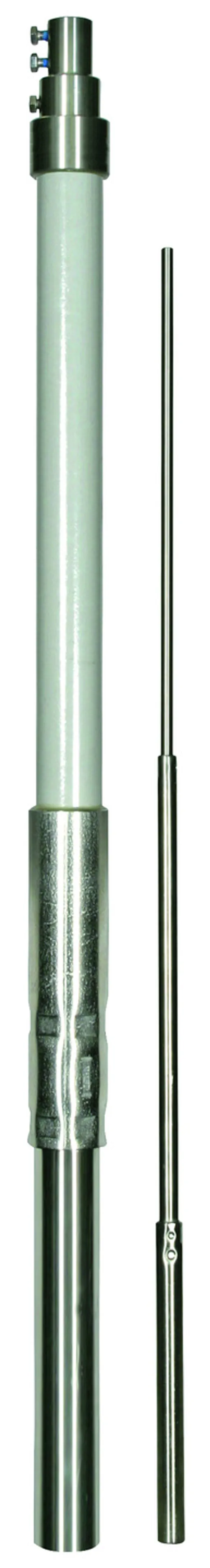

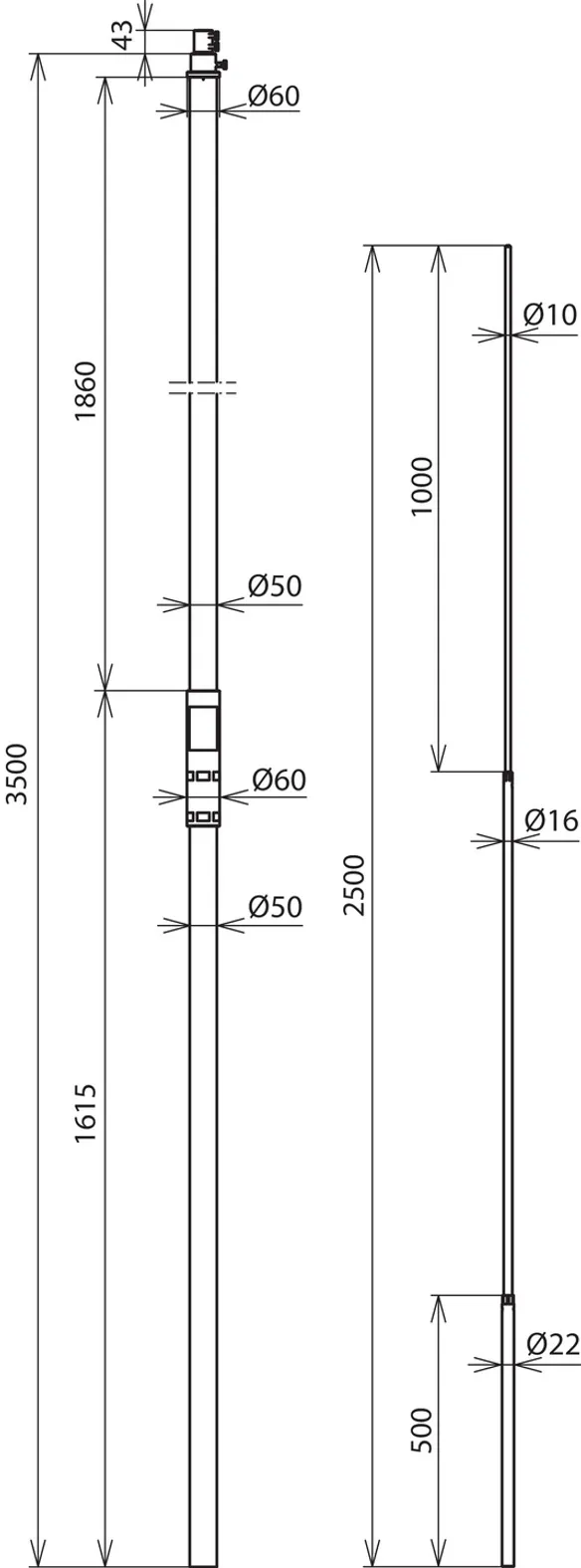

Cikkszám 105321 SR D50 3500 FS22 10 2500 IP HVIP GFK V2A

GTIN 4013364152397, Vámtarifa szám (EU): 85389099, Bruttó súly: 12.20 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductor with air-termination rod, 3500 mm long, GRP/StSt
GRP/StSt supporting tubes with integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5500 mm
Max. gust wind speed (wall mounting, 1x HVI power inside): 163 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3500 FS22 10 2500 IP HVIP GFK V2A
Cikksz.: 105321
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / StSt
Length of supporting tube 3500 mm
Outside diameter Ø 50 mm
Transport length 3500 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube no
Max. free length with air-termination rod (wall mounting) 5500 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105321 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105321 terméket hozzáadtuk a kosárhoz.

Webshop indítása

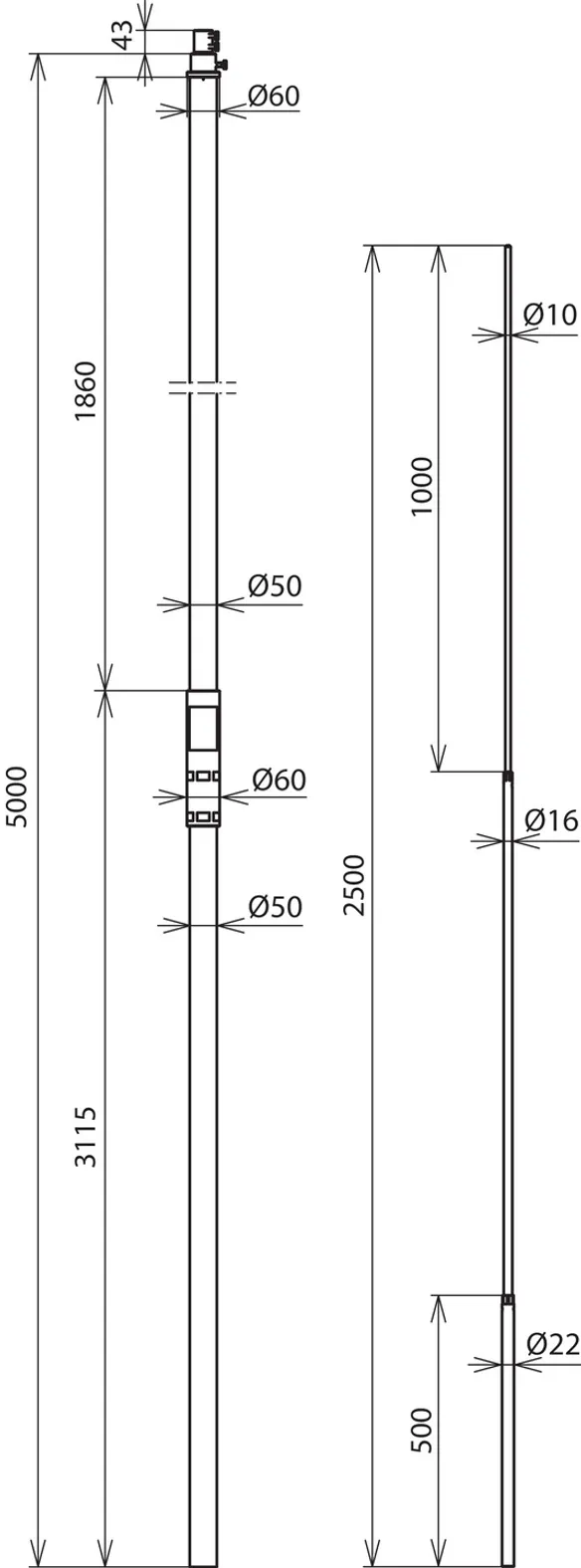

Cikkszám 105323 SR D50 5000 FS22 10 2500 IP HVIP GFK V2A

GTIN 4013364152403, Vámtarifa szám (EU): 85389099, Bruttó súly: 16.30 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductor with air-termination rod, 5000 mm long, GRP/StSt
GRP/StSt supporting tubes with integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5500 mm
Max. gust wind speed (wall mounting, 1x HVI power inside): 159 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 5000 FS22 10 2500 IP HVIP GFK V2A
Cikksz.: 105323
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / StSt
Length of supporting tube 5000 mm
Outside diameter Ø 50 mm
Transport length 5000 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube no
Max. free length with air-termination rod (wall mounting) 5500 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105323 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105323 terméket hozzáadtuk a kosárhoz.

Webshop indítása

With air-termination rod and side outlet

Supporting tube with interior sealing end and EB spring element.
Air-termination rod StSt, Ø10 mm, length 1000 mm.

4 Termékek

Cikkszám 105513 SR D50 3500 FSP1000 IA SA HVIP GFK AL

GTIN 4013364270282, Vámtarifa szám (EU): 85389099, Bruttó súly: 5.50 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tube with side outlet,
integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3500 FSP1000 IA SA HVIP GFK AL
Cikksz.: 105513
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 3500 mm
Outside diameter Ø 50 mm
Transport length 3500 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube yes
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105513 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105513 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105515 SR D50 5000 FSP1000 IA SA HVIP GFK AL

GTIN 4013364271821, Vámtarifa szám (EU): 85389099, Bruttó súly: 8.00 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tube with side outlet,
integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 5000 FSP1000 IA SA HVIP GFK AL
Cikksz.: 105515
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 5000 mm
Outside diameter Ø 50 mm
Transport length 5000 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube yes
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105515 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105515 terméket hozzáadtuk a kosárhoz.

Webshop indítása

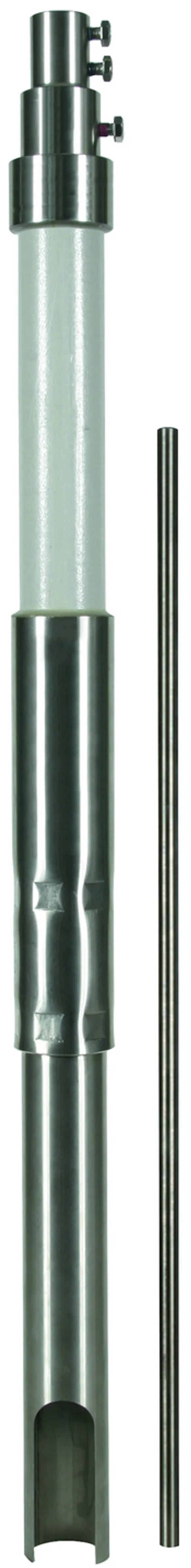

Cikkszám 105392 SR D50 3500 FS1000 IP SA HVIP GFK V2A

GTIN 4013364157903, Vámtarifa szám (EU): 85389099, Bruttó súly: 10.20 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductors, GRP/StSt, with lateral outlet
GRP/StSt supporting tubes with side outlet,
integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3500 FS1000 IP SA HVIP GFK V2A
Cikksz.: 105392
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / StSt
Length of supporting tube 3500 mm
Outside diameter Ø 50 mm
Transport length 3500 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube no
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105392 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105392 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105394 SR D50 5000 FS1000 IP SA HVIP GFK V2A

GTIN 4013364157910, Vámtarifa szám (EU): 85389099, Bruttó súly: 15.10 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductors, GRP/StSt, with lateral outlet
GRP/StSt supporting tubes with lateral outlet,
integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 5000 FS1000 IP SA HVIP GFK V2A
Cikksz.: 105394
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / StSt
Length of supporting tube 5000 mm
Outside diameter Ø 50 mm
Transport length 5000 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube no
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105394 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105394 terméket hozzáadtuk a kosárhoz.

Webshop indítása

With air-termination rod and side outlet

Supporting tube with interior sealing end and EB spring element.
Air-termination rod StSt, Ø22 / 16 / 10 mm, length 2500 mm.

3 Termékek

Cikkszám 105543 SR D50 3500 FS2500 IA SA HVIP GFK AL

GTIN 4013364271845, Vámtarifa szám (EU): 85389099, Bruttó súly: 6.40 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tubes with lateral outlet,
integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3500 FS2500 IA SA HVIP GFK AL
Cikksz.: 105543
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 3500 mm
Outside diameter Ø 50 mm
Transport length 3500 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube yes
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105543 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105543 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105545 SR D50 5000 FS2500 IA SA HVIP GFK AL

GTIN 4013364271876, Vámtarifa szám (EU): 85389099, Bruttó súly: 8.90 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tubes with lateral outlet,
integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 5000 FS2500 IA SA HVIP GFK AL
Cikksz.: 105545
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 5000 mm
Outside diameter Ø 50 mm
Transport length 5000 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube yes
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105545 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105545 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105395 SR D50 5000 FS2500 IP SA HVIP GFK V2A

GTIN 4013364157934, Vámtarifa szám (EU): 85389099, Bruttó súly: 17.12 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI power Conductors, GRP/StSt, with lateral outlet
GRP/StSt supporting tubes with lateral outlet,
integrated sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø22/16/10 mm, length of 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 5000 FS2500 IP SA HVIP GFK V2A
Cikksz.: 105395
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / StSt
Length of supporting tube 5000 mm
Outside diameter Ø 50 mm
Transport length 5000 mm
Length of insulating clearance 1800 mm
Suitable for installation outside of tube no
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105395 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105395 terméket hozzáadtuk a kosárhoz.

Webshop indítása
back to top
