Támasztócső HVI power vezetékhez

High-voltage-resistant, insulated down conductor for maintaining the separation distance to electrically conductive parts according to IEC/EN 62305-3.

Applicable up to an equivalent separation distance s ≤ 90 cm (in air) or s ≤ 180 cm (solid material).

Optically adapted installation of the HVI power Conductor inside of the supporting tube provides less wind exposed surface.

Minimum order length 6 m. Due to the order-related production (customised conductor length) the conductor can not be taken back.

Conductor length to be indicated when ordering (in steps of 0.5 m).

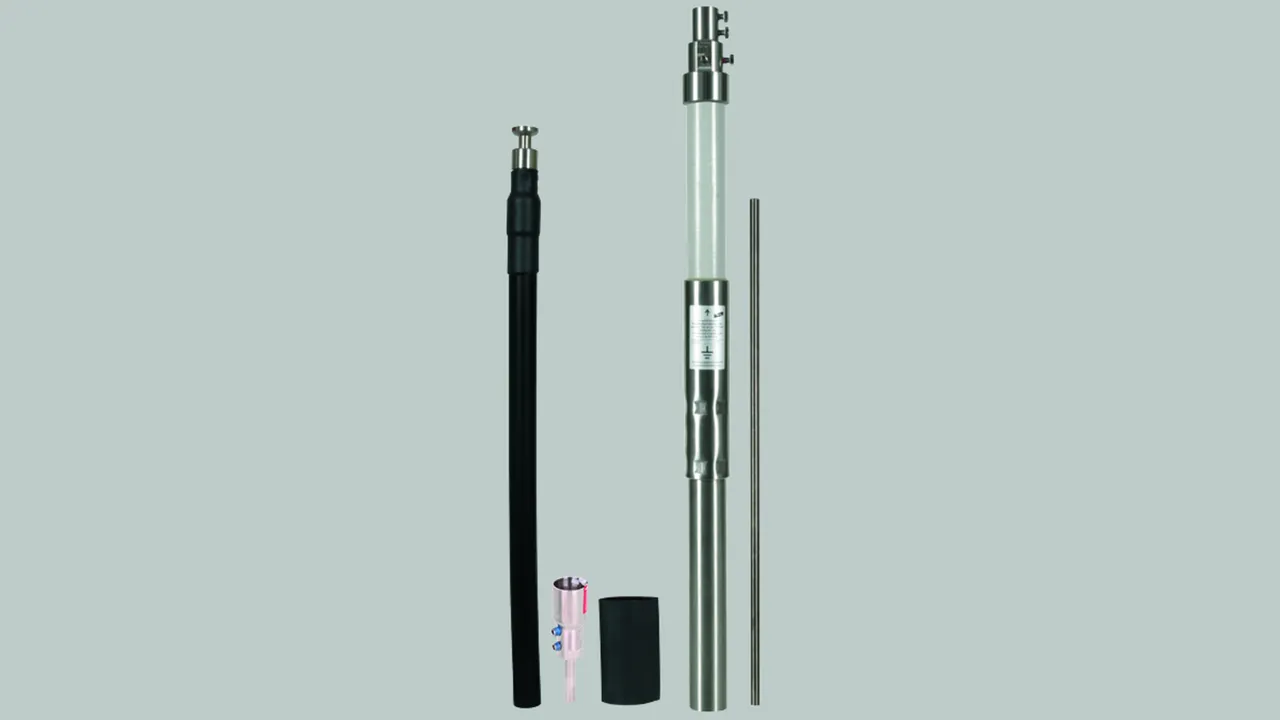

HVI power Conductor inside of supporting tube with air-termination rod

Supporting tube with interior sealing end and EB spring element.
Air-termination rod StSt, Ø10 mm, length 1000 mm.

1 Termék

Cikkszám 819430 HVI P 27 L6M SR3500 FSP1000 GFK V2A

GTIN 4013364152236, Vámtarifa szám (EU): 85389099, Bruttó súly: 16.00 kg, PU: 1.00 db.

Képek

További információ

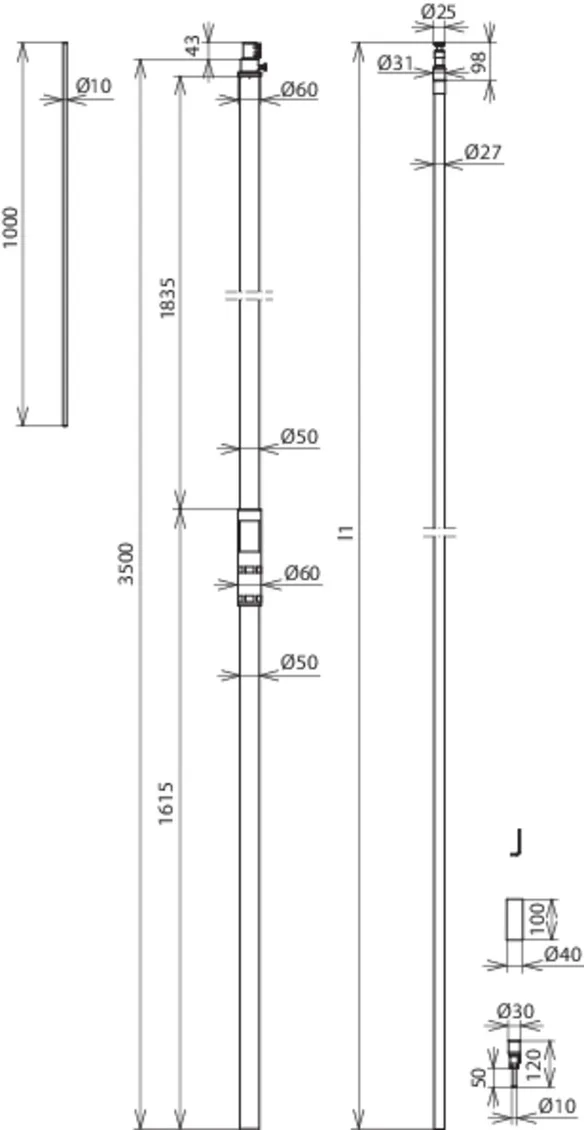

HVI power Conductor installed inside the supporting tube, 3500 mm long, GRP / StSt
HVI power Conductor installed inside the supporting tube
High-voltage-resistant, insulated down conductor for
keeping the separation distance from conductive parts as per IEC/EN 62305-3
Equivalent separation distance s =< 90 cm (in air)
or s =< 180 cm (solid material)
The supporting tubes with HVI power Conductor are dimensioned according to Eurocode
HVI power Conductor installed inside the supporting tube, with special sealing end and air-termination tip, Ø10 mm, 1000 mm long
Material of supporting tube: GRP / StSt
Length of supporting tube: 3500 mm
Transport length: 3500 mm
Diameter Ø conductor: 27 mm
Colour of conductor: black ●
Material of conductor: Cu
Minimum order length: 6 m
Maximum order length: 35 m
Max. free length with air-termination rod (wall mounting): 3500 mm
Max. gust wind speed (wall mounting, 1x HVI power inside): 234 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: HVI P 27 L6M SR3500 FSP1000 GFK V2A
Cikksz.: 819430
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / StSt
Length of supporting tube 3500 mm
Transport length 3500 mm
Diameter Ø conductor 27 mm
Colour of conductor black ●
Material of conductor Cu
Minimum order length 6 m
Maximum order length 35 m
Suitable for installation outside of tube no
Max. free length with air-termination rod (wall mounting) 3500 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 819430 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 819430 terméket hozzáadtuk a kosárhoz.

Webshop indítása

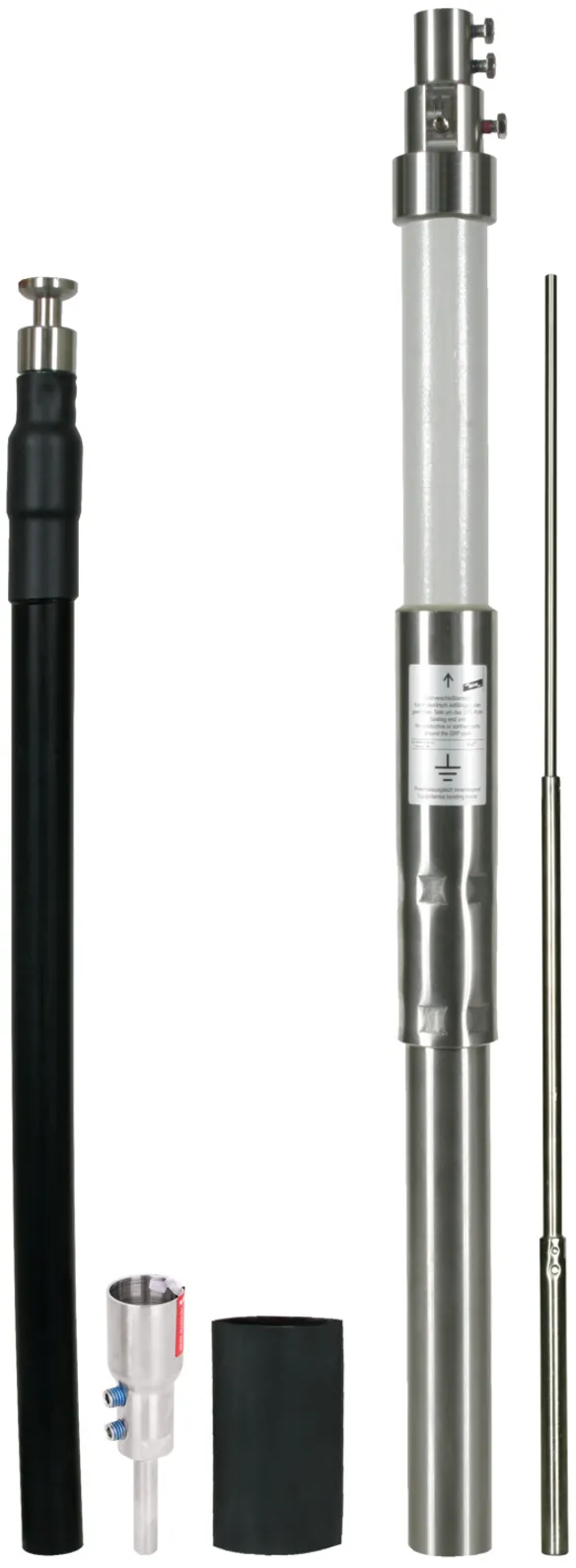

HVI power Conductor inside of supporting tube with air-termination rod

Supporting tube with interior sealing end and EB spring element.
Air-termination rod StSt, Ø22 / 16 / 10 mm, length 2500 mm.

2 Termékek

Cikkszám 819431 HVI P 27 L6M SR3500 FS2500 GFK V2A

GTIN 4013364155442, Vámtarifa szám (EU): 85389099, Bruttó súly: 17.60 kg, PU: 1.00 db.

Képek

További információ

HVI power Conductor inside supporting tube with air-termination rod, 3500 mm long, GRP / StSt
HVI power Conductor installed inside the supporting tube
High-voltage-resistant, insulated down conductor for
keeping the separation distance from conductive parts as per IEC/EN 62305-3
Equivalent separation distance s =< 90 cm (in air)
or s =< 180 cm (solid material)
The supporting tubes with HVI power Conductor are dimensioned according to Eurocode
HVI power Conductor installed inside the supporting tube, with special sealing end and air-termination rod, Ø22/16/10 mm, 2500 mm long
Material of supporting tube: GRP / StSt
Length of supporting tube: 3500 mm
Transport length: 3500 mm
Diameter Ø conductor: 27 mm
Colour of conductor: black ●
Material of conductor: Cu
Minimum order length: 6 m
Maximum order length: 35 m
Max. free length with air-termination rod (wall mounting): 5000 mm
Max. gust wind speed (wall mounting, 1x HVI power inside): 163 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: HVI P 27 L6M SR3500 FS2500 GFK V2A
Cikksz.: 819431
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / StSt
Length of supporting tube 3500 mm
Transport length 3500 mm
Diameter Ø conductor 27 mm
Colour of conductor black ●
Material of conductor Cu
Minimum order length 6 m
Maximum order length 35 m
Suitable for installation outside of tube no
Max. free length with air-termination rod (wall mounting) 5000 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 819431 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 819431 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 819433 HVI P 27 L6M SR5000 FS2500 GFK V2A

GTIN 4013364155459, Vámtarifa szám (EU): 85389099, Bruttó súly: 21.60 kg, PU: 1.00 db.

Képek

További információ

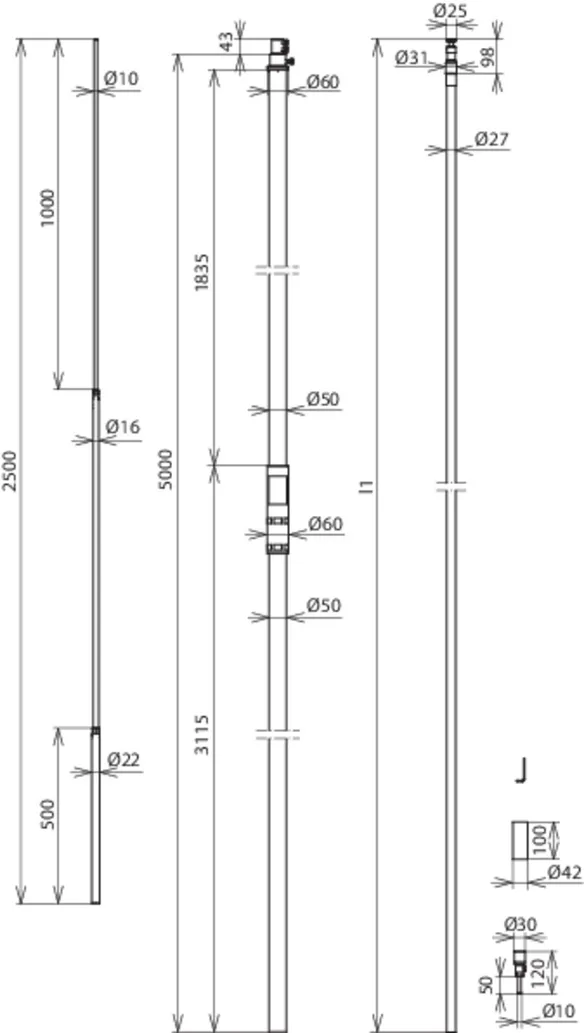

HVI power Conductor inside supporting tube with air-termination rod, 5000 mm long, GRP / StSt
HVI power Conductor installed inside the supporting tube
High-voltage-resistant, insulated down conductor for
keeping the separation distance from conductive parts as per IEC/EN 62305-3
Equivalent separation distance s =< 90 cm (in air)
or s =< 180 cm (solid material)
The supporting tubes with HVI power Conductor are dimensioned according to Eurocode
HVI power Conductor installed inside the supporting tube, with special sealing end and air-termination rod, Ø22/16/10 mm, 2500 mm long
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Transport length: 5000 mm
Diameter Ø conductor: 27 mm
Colour of conductor: black ●
Material of conductor: Cu
Minimum order length: 6 m
Maximum order length: 35 m
Max. free length with air-termination rod (wall mounting): 5000 mm
Max. gust wind speed (wall mounting, 1x HVI power inside): 159 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: HVI P 27 L6M SR5000 FS2500 GFK V2A
Cikksz.: 819433
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / StSt
Length of supporting tube 5000 mm
Transport length 5000 mm
Diameter Ø conductor 27 mm
Colour of conductor black ●
Material of conductor Cu
Minimum order length 6 m
Maximum order length 35 m
Suitable for installation outside of tube no
Max. free length with air-termination rod (wall mounting) 5000 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 819433 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 819433 terméket hozzáadtuk a kosárhoz.

Webshop indítása
