Támasztócsövek HVI long vezetékhez

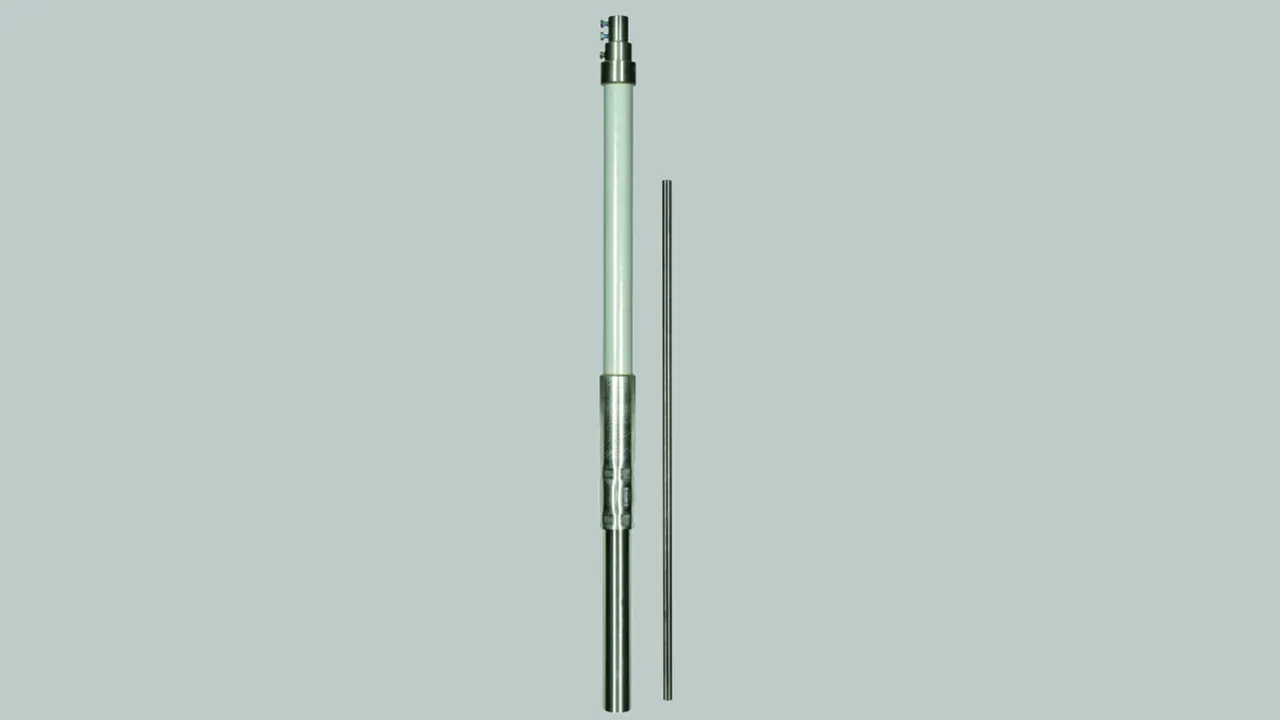

Supporting tube with interior sealing end and EB spring element.

1000 mm-es felfogórúddal

Supporting tube with interior sealing end and EB spring element.
Air-termination rod StSt, Ø10 mm, length 1000 mm.

4 Termékek

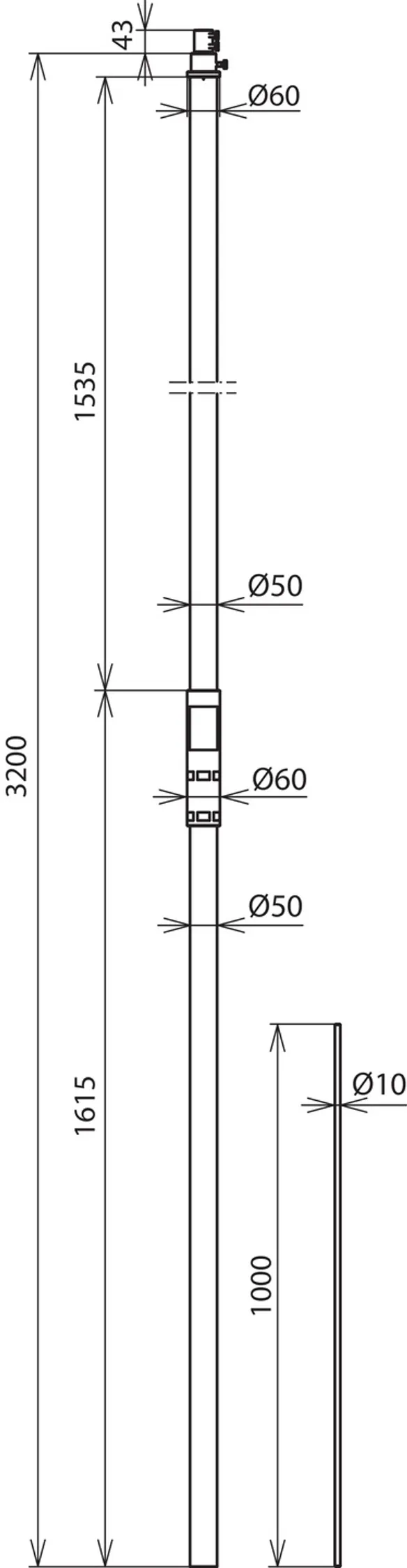

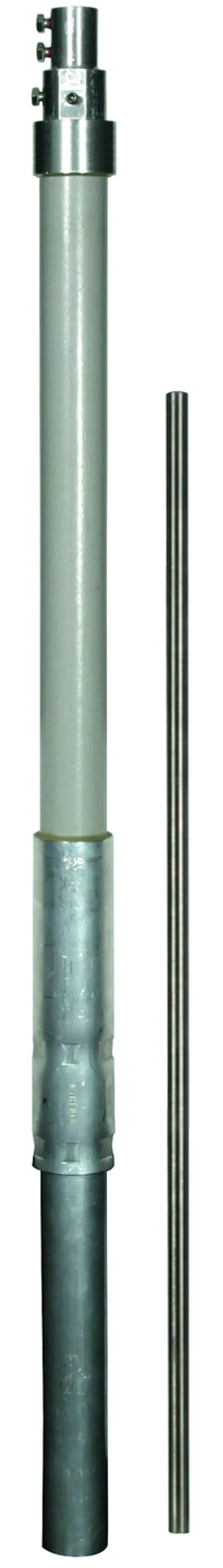

Cikkszám 105330 SR D50 3200 FSP1000 IP HVI GFK AL

GTIN 4013364152496, Vámtarifa szám (EU): 85389099, Bruttó súly: 5.60 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod, 3200 mm long, GRP/Al
GRP/Al supporting tubes with integrated sealing end and EB spring element for
HVI long Conductors for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode for a max. gust wind speed of 237 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 3200 mm
Transport length: 3200 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
Max. free length with air-termination rod (wall mounting): 3500 mm
Max. gust wind speed (wall mounting, 1x HVI inside): 237 km/h
Max. gust wind speed (wall mounting, 1x HVI outside): 222 km/h
Max. gust wind speed (wall mounting, 4x HVI outside): 194 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3200 FSP1000 IP HVI GFK AL
Cikksz.: 105330
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 3200 mm
Transport length 3200 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
Max. free length with air-termination rod (wall mounting) 3500 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105330 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105330 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105332 SR D50 4700 FSP1000 IP HVI GFK AL

GTIN 4013364152519, Vámtarifa szám (EU): 85389099, Bruttó súly: 8.25 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod, 4700 mm long, GRP/Al
GRP/Al supporting tubes with integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode for a max. gust wind speed of 237 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 4700 mm
Transport length: 4700 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
Max. free length with air-termination rod (wall mounting): 3500 mm
Max. gust wind speed (wall mounting, 1x HVI inside): 237 km/h
Max. gust wind speed (wall mounting, 1x HVI outside): 184 km/h
Max. gust wind speed (wall mounting, 4x HVI outside): 149 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 4700 FSP1000 IP HVI GFK AL
Cikksz.: 105332
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 4700 mm
Transport length 4700 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
Max. free length with air-termination rod (wall mounting) 3500 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105332 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105332 terméket hozzáadtuk a kosárhoz.

Webshop indítása

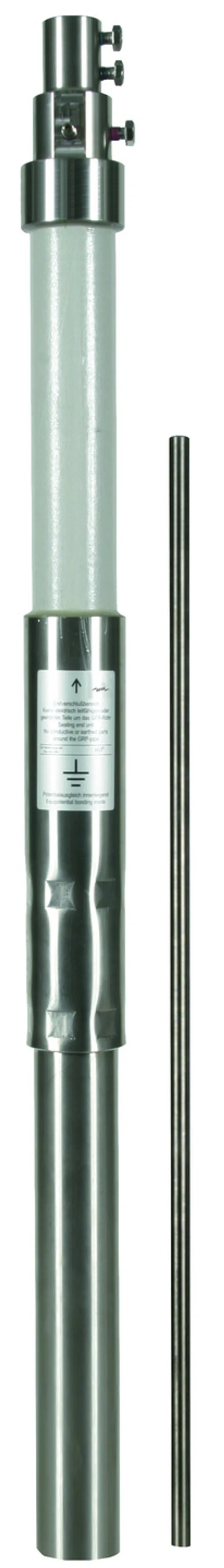

Cikkszám 105314 SR D50 3200 FSP1000 IP HVI GFK V2A

GTIN 4013364157781, Vámtarifa szám (EU): 85389099, Bruttó súly: 10.10 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod, 3200 mm long, GRP/StSt
GRP/StSt supporting tubes with integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode for a max. gust wind speed of 234 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3200 mm
Transport length: 3200 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
Max. free length with air-termination rod (wall mounting): 3500 mm
Max. gust wind speed (wall mounting, 1x HVI inside): 231 km/h
Max. gust wind speed (wall mounting, 1x HVI outside): 226 km/h
Max. gust wind speed (wall mounting, 4x HVI outside): 197 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3200 FSP1000 IP HVI GFK V2A
Cikksz.: 105314
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / StSt
Length of supporting tube 3200 mm
Transport length 3200 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
Max. free length with air-termination rod (wall mounting) 3500 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105314 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105314 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105316 SR D50 4700 FSP1000 IP HVI GFK V2A

GTIN 4013364157798, Vámtarifa szám (EU): 85389099, Bruttó súly: 15.60 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod, 4700 mm long, GRP/StSt
GRP/StSt supporting tubes with integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode for a max. gust wind speed of 234 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 4700 mm
Transport length: 4700 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
Max. free length with air-termination rod (wall mounting): 3500 mm
Max. gust wind speed (wall mounting, 1x HVI inside): 231 km/h
Max. gust wind speed (wall mounting, 1x HVI outside): 186 km/h
Max. gust wind speed (wall mounting, 4x HVI outside): 151 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 4700 FSP1000 IP HVI GFK V2A
Cikksz.: 105316
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / StSt
Length of supporting tube 4700 mm
Transport length 4700 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
Max. free length with air-termination rod (wall mounting) 3500 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105316 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105316 terméket hozzáadtuk a kosárhoz.

Webshop indítása

2500 mm-es felfogórúddal

Supporting tube with interior sealing end and EB spring element.
Air-termination rod Ø22/16/10 mm, length 2500 mm.

4 Termékek

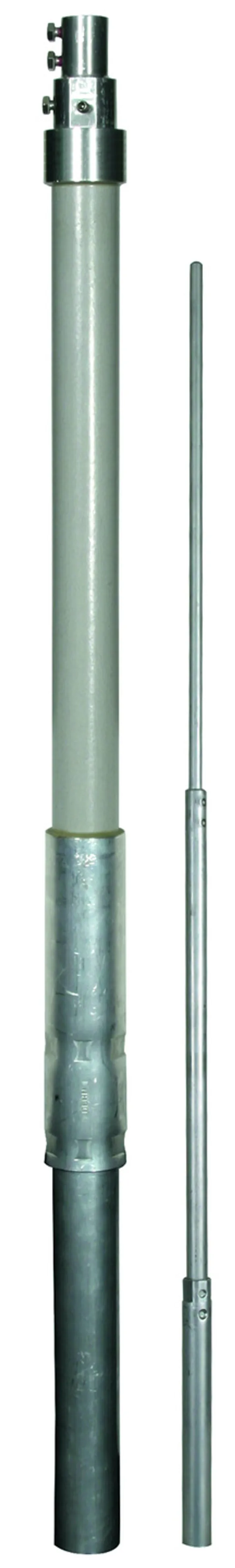

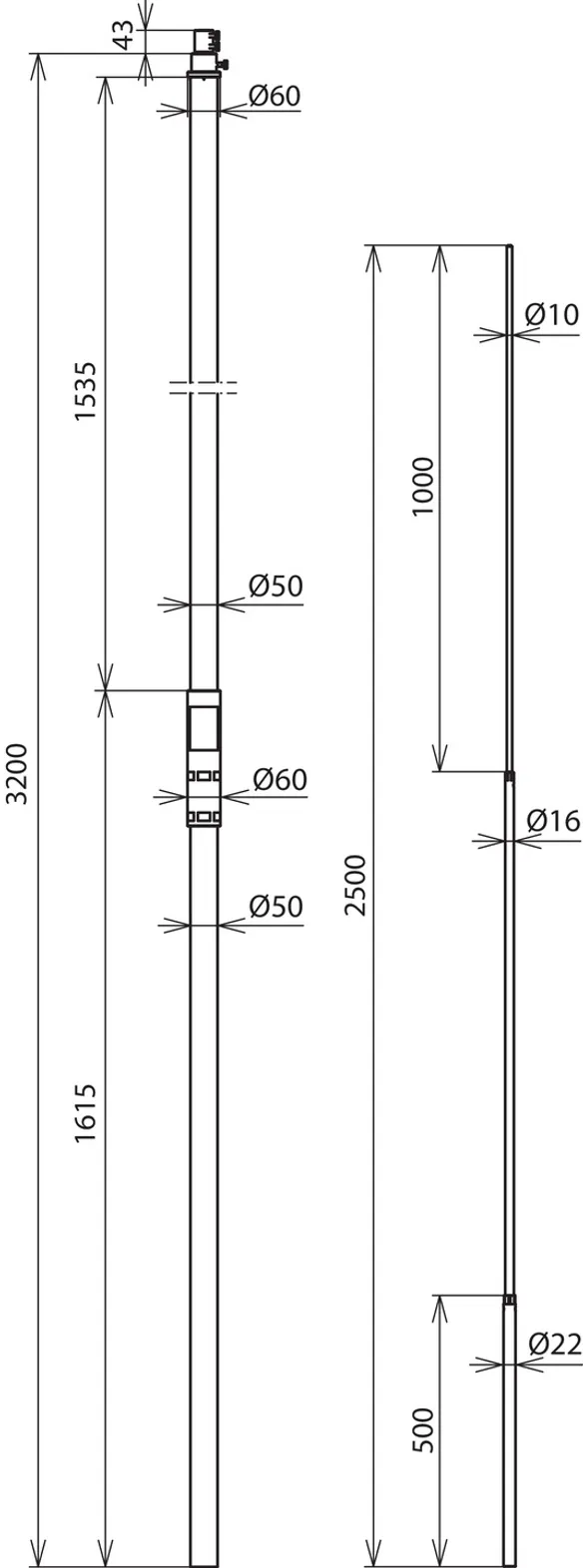

Cikkszám 105331 SR D50 3200 FS22 2500 IP HVI GFK AL

GTIN 4013364152502, Vámtarifa szám (EU): 85389099, Bruttó súly: 6.12 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod, 3200 mm long, GRP/StSt
GRP/Al supporting tubes with integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode for a max. gust wind speed of 190 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3200 mm
Transport length: 3200 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
Max. free length with air-termination rod (wall mounting): 5000 mm
Max. gust wind speed (wall mounting, 1x HVI inside): 189 km/h
Max. gust wind speed (wall mounting, 1x HVI outside): 173 km/h
Max. gust wind speed (wall mounting, 4x HVI outside): 151 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3200 FS22 2500 IP HVI GFK AL
Cikksz.: 105331
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of air-termination rod Al
Material of supporting tube GRP / Al
Length of supporting tube 3200 mm
Transport length 3200 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
Max. free length with air-termination rod (wall mounting) 5000 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105331 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105331 terméket hozzáadtuk a kosárhoz.

Webshop indítása

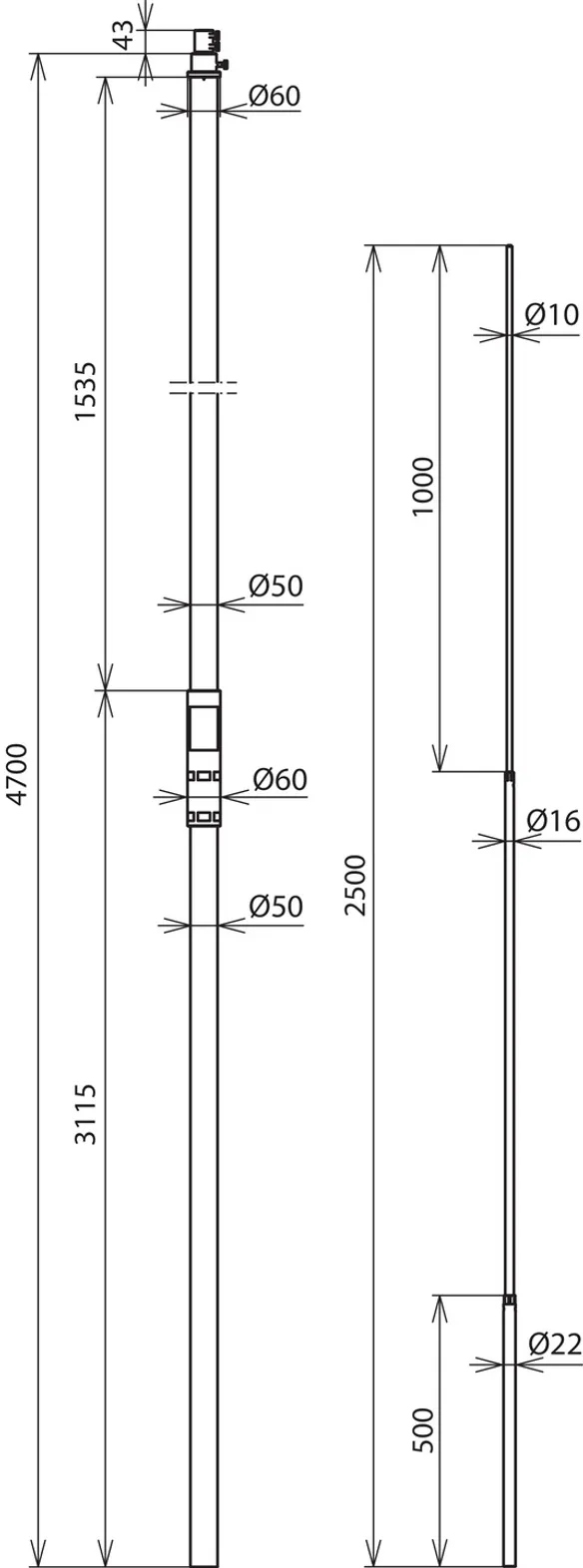

Cikkszám 105333 SR D50 4700 FS22 2500 IP HVI GFK AL

GTIN 4013364152526, Vámtarifa szám (EU): 85389099, Bruttó súly: 8.51 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod, 4700 mm long, GRP/StSt
GRP/Al supporting tubes with integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode for a max. gust wind speed of 190 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 4700 mm
Transport length: 4700 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
Max. free length with air-termination rod (wall mounting): 5000 mm
Max. gust wind speed (wall mounting, 1x HVI inside): 184 km/h
Max. gust wind speed (wall mounting, 1x HVI outside): 149 km/h
Max. gust wind speed (wall mounting, 4x HVI outside): 137 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 4700 FS22 2500 IP HVI GFK AL
Cikksz.: 105333
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of air-termination rod Al
Material of supporting tube GRP / Al
Length of supporting tube 4700 mm
Transport length 4700 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
Max. free length with air-termination rod (wall mounting) 5000 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105333 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105333 terméket hozzáadtuk a kosárhoz.

Webshop indítása

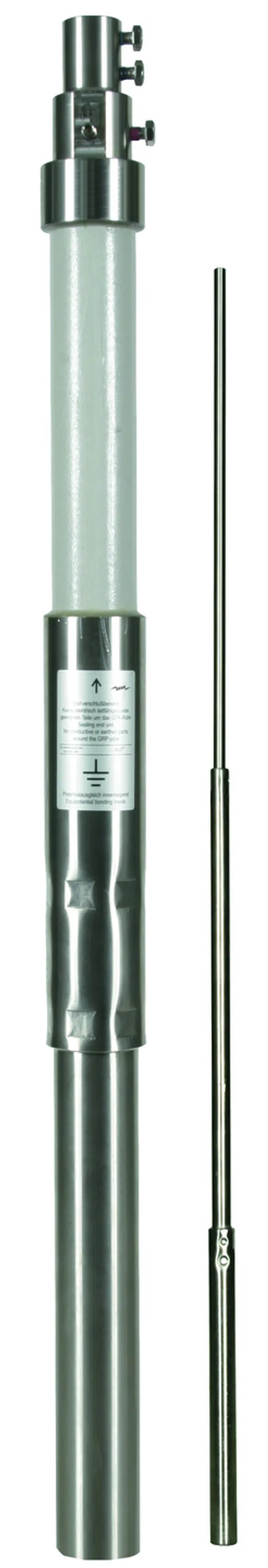

Cikkszám 105315 SR D50 3200 FS22 2500 IP HVI GFK V2A

GTIN 4013364157804, Vámtarifa szám (EU): 85389099, Bruttó súly: 12.00 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod, 3200 mm long, GRP/StSt
GRP/StSt supporting tubes with integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode for a max. gust wind speed of 188 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3200 mm
Transport length: 3200 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
Max. free length with air-termination rod (wall mounting): 5000 mm
Max. gust wind speed (wall mounting, 1x HVI inside): 186 km/h
Max. gust wind speed (wall mounting, 1x HVI outside): 169 km/h
Max. gust wind speed (wall mounting, 4x HVI outside): 149 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3200 FS22 2500 IP HVI GFK V2A
Cikksz.: 105315
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of air-termination rod StSt
Material of supporting tube GRP / StSt
Length of supporting tube 3200 mm
Transport length 3200 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
Max. free length with air-termination rod (wall mounting) 5000 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105315 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105315 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105317 SR D50 4700 FS22 2500 IP HVI GFK V2A

GTIN 4013364157811, Vámtarifa szám (EU): 85389099, Bruttó súly: 17.12 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod, 4700 mm long, GRP/StSt
GRP/StSt supporting tubes with integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode for a max. gust wind speed of 188 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 4700 mm
Transport length: 4700 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
Max. free length with air-termination rod (wall mounting): 5000 mm
Max. gust wind speed (wall mounting, 1x HVI inside): 185 km/h
Max. gust wind speed (wall mounting, 1x HVI outside): 149 km/h
Max. gust wind speed (wall mounting, 4x HVI outside): 137 km/h
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 4700 FS22 2500 IP HVI GFK V2A
Cikksz.: 105317
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of air-termination rod StSt
Material of supporting tube GRP / StSt
Length of supporting tube 4700 mm
Transport length 4700 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
Max. free length with air-termination rod (wall mounting) 5000 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105317 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105317 terméket hozzáadtuk a kosárhoz.

Webshop indítása

1000 mm-es felfogórúddal és oldalsó kivezetéssel

Supporting tube with interior sealing end and EB spring element.
Air-termination rod StSt, Ø10 mm, length 1000 mm.

4 Termékek

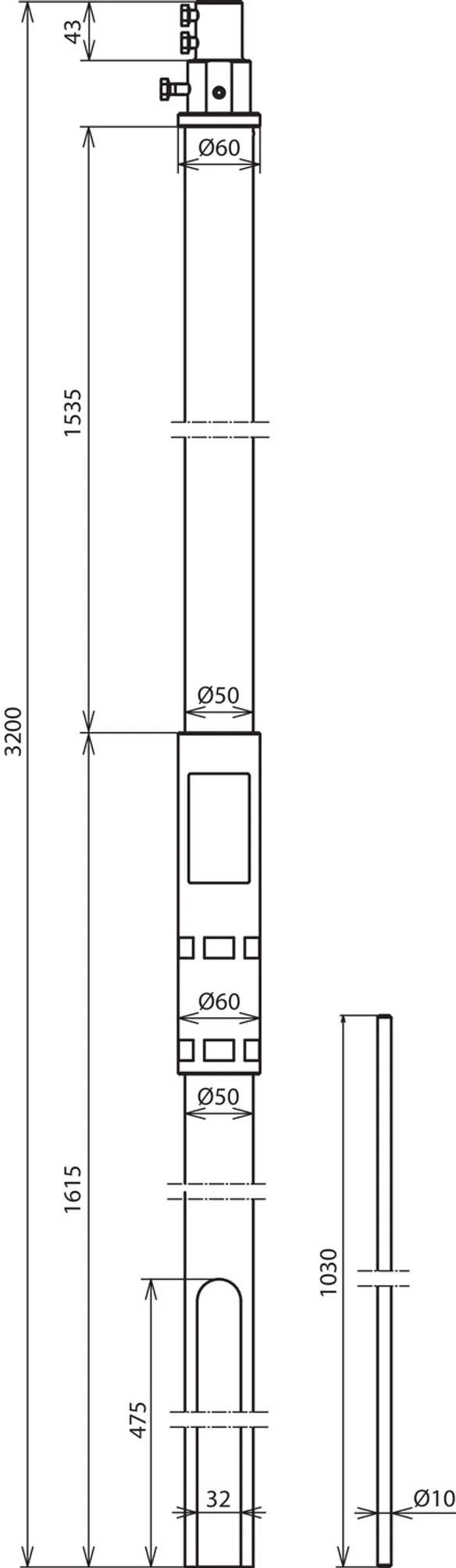

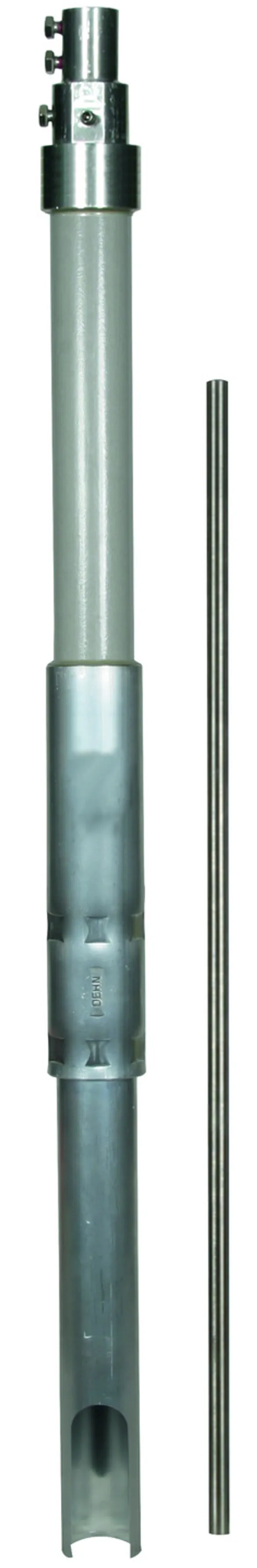

Cikkszám 105325 SR D50 3200 FS1000 IP SA HVI GFK AL

GTIN 4013364157828, Vámtarifa szám (EU): 85389099, Bruttó súly: 5.42 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod and lateral outlet
GRP/Al supporting tubes with side outlet, integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, 10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 3200 mm
Transport length: 3200 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3200 FS1000 IP SA HVI GFK AL
Cikksz.: 105325
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 3200 mm
Transport length 3200 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105325 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105325 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105327 SR D50 4700 FS1000 IP SA HVI GFK AL

GTIN 4013364157835, Vámtarifa szám (EU): 85389099, Bruttó súly: 8.15 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod and lateral outlet
GRP/Al supporting tubes with side outlet, integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, 10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 4700 mm
Transport length: 4700 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 4700 FS1000 IP SA HVI GFK AL
Cikksz.: 105327
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 4700 mm
Transport length 4700 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105327 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105327 terméket hozzáadtuk a kosárhoz.

Webshop indítása

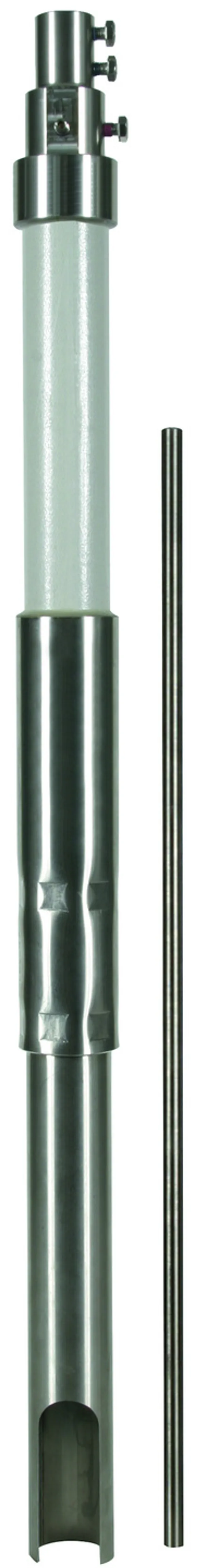

Cikkszám 105336 SR D50 3200 FS1000 IP SA HVI GFK V2A

GTIN 4013364157866, Vámtarifa szám (EU): 85389099, Bruttó súly: 9.90 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod and lateral outlet
GRP/StSt supporting tubes with side outlet, integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, 10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3200 mm
Transport length: 3200 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3200 FS1000 IP SA HVI GFK V2A
Cikksz.: 105336
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / StSt
Length of supporting tube 3200 mm
Transport length 3200 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105336 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105336 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105338 SR D50 4700 FS1000 IP SA HVI GFK V2A

GTIN 4013364157873, Vámtarifa szám (EU): 85389099, Bruttó súly: 15.13 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod and lateral outlet
GRP/StSt supporting tubes with side outlet, integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, 10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 4700 mm
Transport length: 4700 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 4700 FS1000 IP SA HVI GFK V2A
Cikksz.: 105338
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / StSt
Length of supporting tube 4700 mm
Transport length 4700 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105338 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105338 terméket hozzáadtuk a kosárhoz.

Webshop indítása

2500 mm-es felfogórúddal és oldalsó kivezetéssel

Supporting tube with interior sealing end and EB spring element.
Air-termination rod Ø22/16/10 mm, length 2500 mm.

4 Termékek

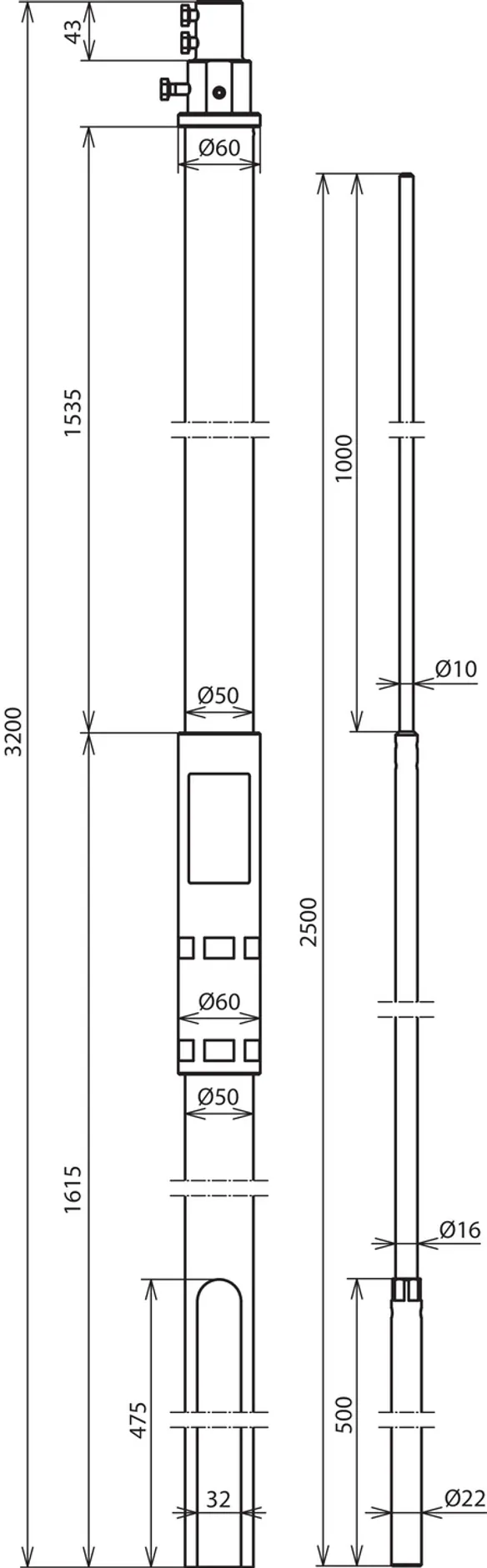

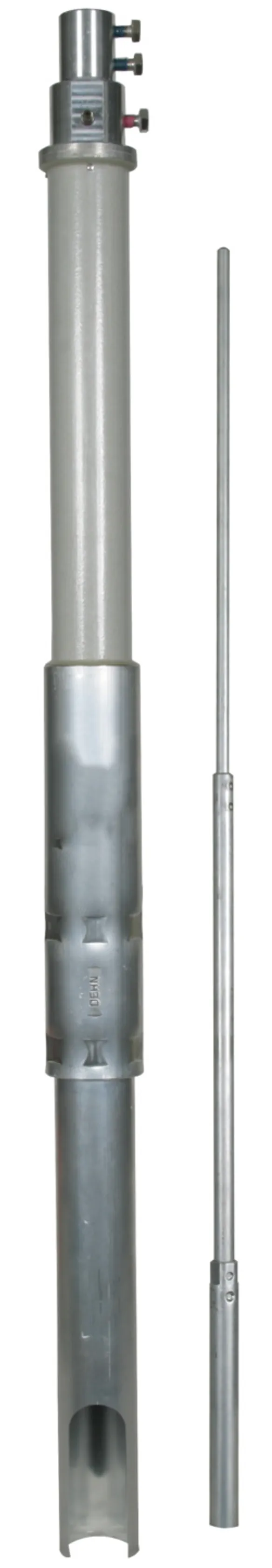

Cikkszám 105326 SR D50 3200 FS2500 IP SA HVI GFK AL

GTIN 4013364157842, Vámtarifa szám (EU): 85389099, Bruttó súly: 5.82 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod and lateral outlet
GRP/Al supporting tubes with side outlet, integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, 22/16/10 mm, length 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3200 mm
Transport length: 3200 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3200 FS2500 IP SA HVI GFK AL
Cikksz.: 105326
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of air-termination rod Al
Material of supporting tube GRP / Al
Length of supporting tube 3200 mm
Transport length 3200 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105326 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105326 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105328 SR D50 4700 FS2500 IP SA HVI GFK AL

GTIN 4013364157859, Vámtarifa szám (EU): 85389099, Bruttó súly: 8.34 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod and lateral outlet
GRP/Al supporting tubes with side outlet, integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, 22/16/10 mm, length 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 4700 mm
Transport length: 4700 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 4700 FS2500 IP SA HVI GFK AL
Cikksz.: 105328
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of air-termination rod Al
Material of supporting tube GRP / Al
Length of supporting tube 4700 mm
Transport length 4700 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105328 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105328 terméket hozzáadtuk a kosárhoz.

Webshop indítása

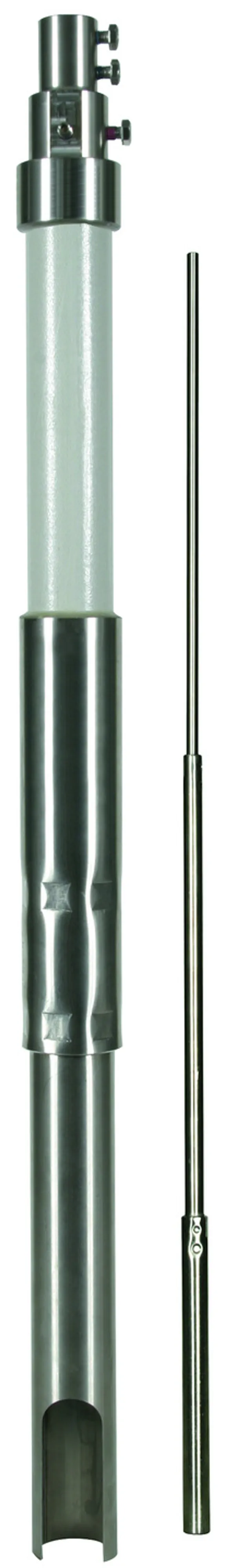

Cikkszám 105337 SR D50 3200 FS2500 IP SA HVI GFK V2A

GTIN 4013364157880, Vámtarifa szám (EU): 85389099, Bruttó súly: 11.64 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termation rod and lateral outlet
GRP/StSt supporting tubes with side outlet, integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, 22/16/10 mm, length 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3200 mm
Transport length: 3200 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 3200 FS2500 IP SA HVI GFK V2A
Cikksz.: 105337
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of air-termination rod StSt
Material of supporting tube GRP / StSt
Length of supporting tube 3200 mm
Transport length 3200 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105337 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105337 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105339 SR D50 4700 FS2500 IP SA HVI GFK V2A

GTIN 4013364157897, Vámtarifa szám (EU): 85389099, Bruttó súly: 16.90 kg, PU: 1.00 db.

Képek

További információ

Supporting tube for HVI long Conductor with air-termination rod and lateral outlet
GRP/StSt supporting tubes with side outlet, integrated sealing end and EB spring element for HVI long Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, 22/16/10 mm, length 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 4700 mm
Transport length: 4700 mm
Outside diameter Ø : 50 mm
Length of insulating clearance: 1535 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D50 4700 FS2500 IP SA HVI GFK V2A
Cikksz.: 105339
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of air-termination rod StSt
Material of supporting tube GRP / StSt
Length of supporting tube 4700 mm
Transport length 4700 mm
Outside diameter Ø 50 mm
Length of insulating clearance 1535 mm
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105339 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105339 terméket hozzáadtuk a kosárhoz.

Webshop indítása
back to top
