Potenciálkiegyenlítő sínek ipari kivitel

Equipotential busbars for the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC/EN 62305-3.
Also for use in potentially explosive atmospheres (secured against self-loosening of screws).

– With spring washer
– Insulator UP (duroplastic, red) with thread M10
– UV stabilised and halogen-free

6 terminals

2 Termékek

Cikkszám 472207 PAS I 6AP M10 CU

GTIN 4013364090927, Vámtarifa szám: 85359000, Bruttó súly: 964.00 g, PU: 1.00 db.


Képek

További információ

Equipotential bonding bar, industrial design, 6 terminals w. insulators, Cu
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)
UV-stabilised
Quantity of terminals: 6
Material: Cu
Dimension s: 295 x 40 x 5 mm
Cross-section: 200 mm2
Short-circuit current (50 Hz): 39 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Gyártó: DEHN
Típus: PAS I 6AP M10 CU
Cikksz.: 472207
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material Cu
Dimension s (l x w x d1) 295 x 40 x 5 mm
Cross-section 200 mm2
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 39 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1

A 472207 termék hozzá lett adva a jegyzettömbhöz.

A 472207 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 472209 PAS I 6AP M10 V2A

GTIN 4013364090934, Vámtarifa szám: 85359000, Bruttó súly: 1.01 kg, PU: 1.00 db.


Képek

További információ

Equipotential bonding bar, industrial design, 6 terminals w. insulators, StSt
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)
UV-stabilised
Quantity of terminals: 6
Material: StSt
Material No.: 1.4301 / 1.4303
Dimension s: 295 x 40 x 6 mm
Cross-section: 240 mm2
Short-circuit current (50 Hz): 8.9 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Gyártó: DEHN
Típus: PAS I 6AP M10 V2A
Cikksz.: 472209
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material StSt
Dimension s (l x w x d1) 295 x 40 x 6 mm
Cross-section 240 mm2
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 8.9 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1

A 472209 termék hozzá lett adva a jegyzettömbhöz.

A 472209 terméket hozzáadtuk a kosárhoz.

Webshop indítása

8 terminals

2 Termékek

Cikkszám 472227 PAS I 8AP M10 CU

GTIN 4013364096424, Vámtarifa szám: 85359000, Bruttó súly: 1.14 kg, PU: 1.00 db.

Kifutott termék:

Képek

További információ

Equipotential bonding bar, industrial design, 8 terminals w. insulators, Cu
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)
UV-stabilised
Quantity of terminals: 8
Material: Cu
Dimension s: 365 x 40 x 5 mm
Cross-section: 200 mm2
Short-circuit current (50 Hz): 39 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Gyártó: DEHN
Típus: PAS I 8AP M10 CU
Cikksz.: 472227
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material Cu
Dimension s (l x w x d1) 365 x 40 x 5 mm
Cross-section 200 mm2
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 39 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1

A 472227 termék hozzá lett adva a jegyzettömbhöz.

A 472227 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 472229 PAS I 8AP M10 V2A

GTIN 4013364096431, Vámtarifa szám: 85359000, Bruttó súly: 1.18 kg, PU: 1.00 db.


Képek

További információ

Equipotential bonding bar, industrial design, 8 terminals w. insulators, StSt
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)

Quantity of terminals: 8
Material: StSt
Material No.: 1.4301 / 1.4303
Dimension s: 365 x 40 x 6 mm
Cross-section: 240 mm2
Short-circuit current (50 Hz): 8.9 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Gyártó: DEHN
Típus: PAS I 8AP M10 V2A
Cikksz.: 472229
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material StSt
Dimension s (l x w x d1) 365 x 40 x 6 mm
Cross-section 240 mm2
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 8.9 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1

A 472229 termék hozzá lett adva a jegyzettömbhöz.

A 472229 terméket hozzáadtuk a kosárhoz.

Webshop indítása

10 terminals

2 Termékek

Cikkszám 472217 PAS I 10AP M10 CU

GTIN 4013364090941, Vámtarifa szám: 85359000, Bruttó súly: 1.35 kg, PU: 1.00 db.


Képek

További információ

Equipotential bonding bar, industrial design, 10 terminals w. insulators, Cu
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)
UV-stabilised
Quantity of terminals: 10
Material: Cu
Dimension s: 435 x 40 x 5 mm
Cross-section: 200 mm2
Short-circuit current (50 Hz): 39 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Gyártó: DEHN
Típus: PAS I 10AP M10 CU
Cikksz.: 472217
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material Cu
Dimension s (l x w x d1) 435 x 40 x 5 mm
Cross-section 200 mm2
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 39 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1

A 472217 termék hozzá lett adva a jegyzettömbhöz.

A 472217 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 472219 PAS I 10AP M10 V2A

GTIN 4013364090958, Vámtarifa szám: 85359000, Bruttó súly: 1.41 kg, PU: 1.00 db.


Képek

További információ

Equipotential bonding bar, industrial design, 10 terminals w. insulators, StSt
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)
UV-stabilised
Quantity of terminals: 10
Material: StSt
Material No.: 1.4301 / 1.4303
Dimension s: 435 x 40 x 6 mm
Cross-section: 240 mm2
Short-circuit current (50 Hz): 8.9 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Gyártó: DEHN
Típus: PAS I 10AP M10 V2A
Cikksz.: 472219
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material StSt
Dimension s (l x w x d1) 435 x 40 x 6 mm
Cross-section 240 mm2
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 8.9 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1

A 472219 termék hozzá lett adva a jegyzettömbhöz.

A 472219 terméket hozzáadtuk a kosárhoz.

Webshop indítása

12 terminals

2 Termékek

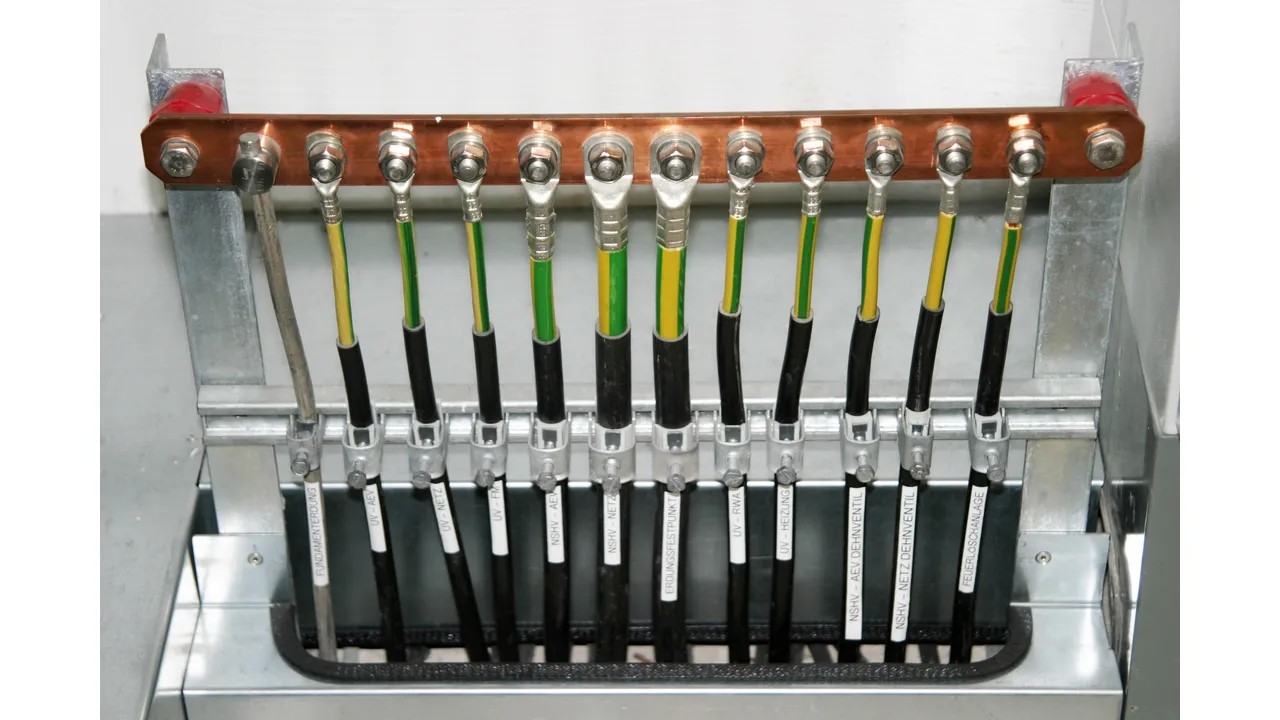

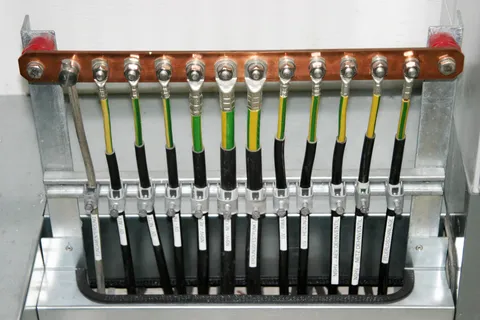

Cikkszám 472237 PAS I 12AP M10 CU

GTIN 4013364096448, Vámtarifa szám: 85359000, Bruttó súly: 1.53 kg, PU: 1.00 db.


Képek

További információ

Equipotential bonding bar, industrial design, 12 terminals w. insulators, Cu
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)

Quantity of terminals: 12
Material: Cu
Dimension s: 505 x 40 x 5 mm
Cross-section: 200 mm2
Short-circuit current (50 Hz): 39 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Gyártó: DEHN
Típus: PAS I 12AP M10 CU
Cikksz.: 472237
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material Cu
Dimension s (l x w x d1) 505 x 40 x 5 mm
Cross-section 200 mm2
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 39 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1

A 472237 termék hozzá lett adva a jegyzettömbhöz.

A 472237 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 472239 PAS I 12AP M10 V2A

GTIN 4013364096455, Vámtarifa szám: 85359000, Bruttó súly: 1.59 kg, PU: 1.00 db.


Képek

További információ

Equipotential bonding bar, industrial design, 12 terminals w. insulators, StSt
Equipotential bonding bar for industrial use
For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Also for use in hazardous zones (screws protected
against self-loosening)
UV-stabilised
Quantity of terminals: 12
Material: StSt
Material No.: 1.4301 / 1.4303
Dimension s: 505 x 40 x 6 mm
Cross-section: 240 mm2
Short-circuit current (50 Hz): 8.9 kA
Screw: M10 x 25 mm
Material of screw / nut: StSt
Design: with spring washer
Material of insulator: UP
Standard: EN 62561-1

Gyártó: DEHN
Típus: PAS I 12AP M10 V2A
Cikksz.: 472239
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material StSt
Dimension s (l x w x d1) 505 x 40 x 6 mm
Cross-section 240 mm2
Short-circuit current (50 Hz) (1 s; ≤ 300 °C) 8.9 kA
Screw di M10 x 25 mm
Material of screw / nut StSt
Design with spring washer
Material of insulator UP
Standard EN 62561-1

A 472239 termék hozzá lett adva a jegyzettömbhöz.

A 472239 terméket hozzáadtuk a kosárhoz.

Webshop indítása
