DEHNcon-H támasztócső HVI light vezetékhez

Supporting tubes for HVI light Conductor for on-site assembly, air-termination rod StSt, Ø10 mm.

With air-termination rod

4 Termékek

Cikkszám 105272 SR D30 1990 FSP10 500 GFK AL V2A

GTIN 4013364255777, Vámtarifa szám (EU): 85389099, Bruttó súly: 2.40 kg, PU: 1.00 db.

Képek

További információ

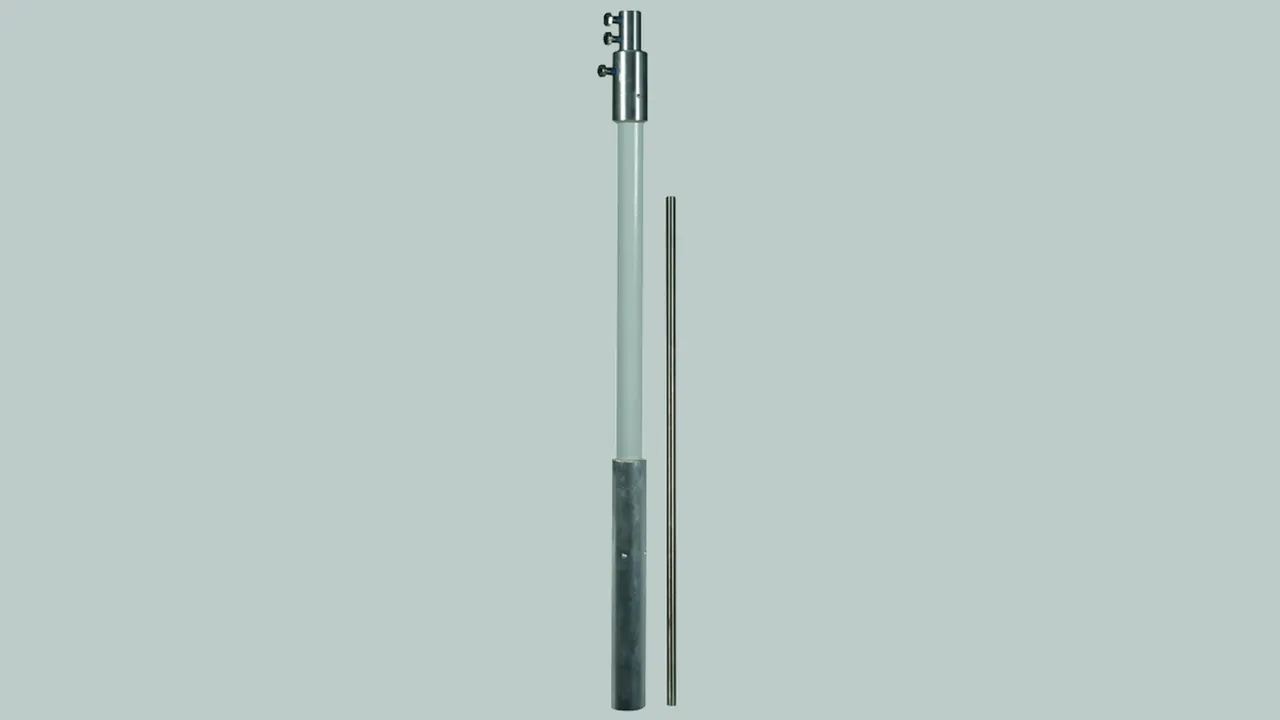

DEHNcon-H supporting tube for HVI light Conductor with air-termination rod 500 mm, GRP/Al
Supporting tubes GRP/Al with integrated sealing end for
HVI light Conductors for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode for a max. gust wind speed of 232 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised
One element, combined with air-termination tip, Ø10 mm, length 500 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 1990 mm
Transport length: 1990 mm
Outside diameter Ø GRP: 30 mm
Diameter Ø outside Al (clamping range): 40 mm
Length of insulating clearance: 1070 mm
Max. gust wind speed: 240 km/h
Max. free length: 1890 mm
Min. clamping length: 600 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D30 1990 FSP10 500 GFK AL V2A
Cikksz.: 105272
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 1990 mm
Length of air-termination rod 500 mm
Outside diameter Ø GRP 30 mm
Diameter Ø outside Al (clamping range) 40 mm
Max. gust wind speed 240 km/h
Max. free length 1890 mm
Min. clamping length 600 mm
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105272 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105272 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105273 SR D30 1990 FSP10 1000 GFK AL V2A

GTIN 4013364255807, Vámtarifa szám (EU): 85389099, Bruttó súly: 2.70 kg, PU: 1.00 db.

Képek

További információ

DEHNcon-H supporting tube for HVI light Conductor with air-termination rod 1000 mm, GRP/Al
Supporting tubes GRP/Al with integrated sealing end for
HVI light Conductors for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode for a max. gust wind speed of 198 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised
One element, combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 1990 mm
Transport length: 1990 mm
Outside diameter Ø GRP: 30 mm
Diameter Ø outside Al (clamping range): 40 mm
Length of insulating clearance: 1070 mm
Max. gust wind speed: 200 km/h
Max. free length: 2390 mm
Min. clamping length: 600 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D30 1990 FSP10 1000 GFK AL V2A
Cikksz.: 105273
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 1990 mm
Length of air-termination rod 1000 mm
Outside diameter Ø GRP 30 mm
Diameter Ø outside Al (clamping range) 40 mm
Max. gust wind speed 200 km/h
Max. free length 2390 mm
Min. clamping length 600 mm
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105273 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105273 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105274 SR D30 2840 FSP10 500 GFK AL V2A

GTIN 4013364255814, Vámtarifa szám (EU): 85389099, Bruttó súly: 3.35 kg, PU: 1.00 db.

Képek

További információ

DEHNcon-H supporting tube for HVI light Conductor with air-termination rod 500 mm, GRP/Al
Supporting tubes GRP/Al with integrated sealing end for
HVI light Conductors for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode for a max. gust wind speed of 232 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised
One element, combined with air-termination tip, Ø10 mm, length 500 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 2640 mm
Transport length: 2640 mm
Outside diameter Ø GRP: 30 mm
Diameter Ø outside Al (clamping range): 40 mm
Length of insulating clearance: 1070 mm
Max. gust wind speed: 240 km/h
Max. free length: 2540 mm
Min. clamping length: 600 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D30 2840 FSP10 500 GFK AL V2A
Cikksz.: 105274
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 2640 mm
Length of air-termination rod 500 mm
Outside diameter Ø GRP 30 mm
Diameter Ø outside Al (clamping range) 40 mm
Max. gust wind speed 240 km/h
Max. free length 2540 mm
Min. clamping length 600 mm
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105274 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105274 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 105280 SR D30 2640 FSP10 1000 GFK AL V2A

GTIN 4013364255838, Vámtarifa szám (EU): 85389099, Bruttó súly: 3.65 kg, PU: 1.00 db.

Képek

További információ

DEHNcon-H supporting tube for HVI light Conductor with air-termination rod 1000 mm, GRP/Al
Supporting tubes GRP/Al with integrated sealing end for
HVI light Conductors for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode for a max. gust wind speed of 198 km/h
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised
One element, combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 2640 mm
Transport length: 2640 mm
Outside diameter Ø GRP: 30 mm
Diameter Ø outside Al (clamping range): 40 mm
Length of insulating clearance: 1070 mm
Max. gust wind speed: 201 km/h
Max. free length: 3040 mm
Min. clamping length: 600 mm
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: SR D30 2640 FSP10 1000 GFK AL V2A
Cikksz.: 105280
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of supporting tube GRP / Al
Length of supporting tube 2640 mm
Length of air-termination rod 1000 mm
Outside diameter Ø GRP 30 mm
Diameter Ø outside Al (clamping range) 40 mm
Max. gust wind speed 201 km/h
Max. free length 3040 mm
Min. clamping length 600 mm
<TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

A 105280 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105280 terméket hozzáadtuk a kosárhoz.

Webshop indítása
