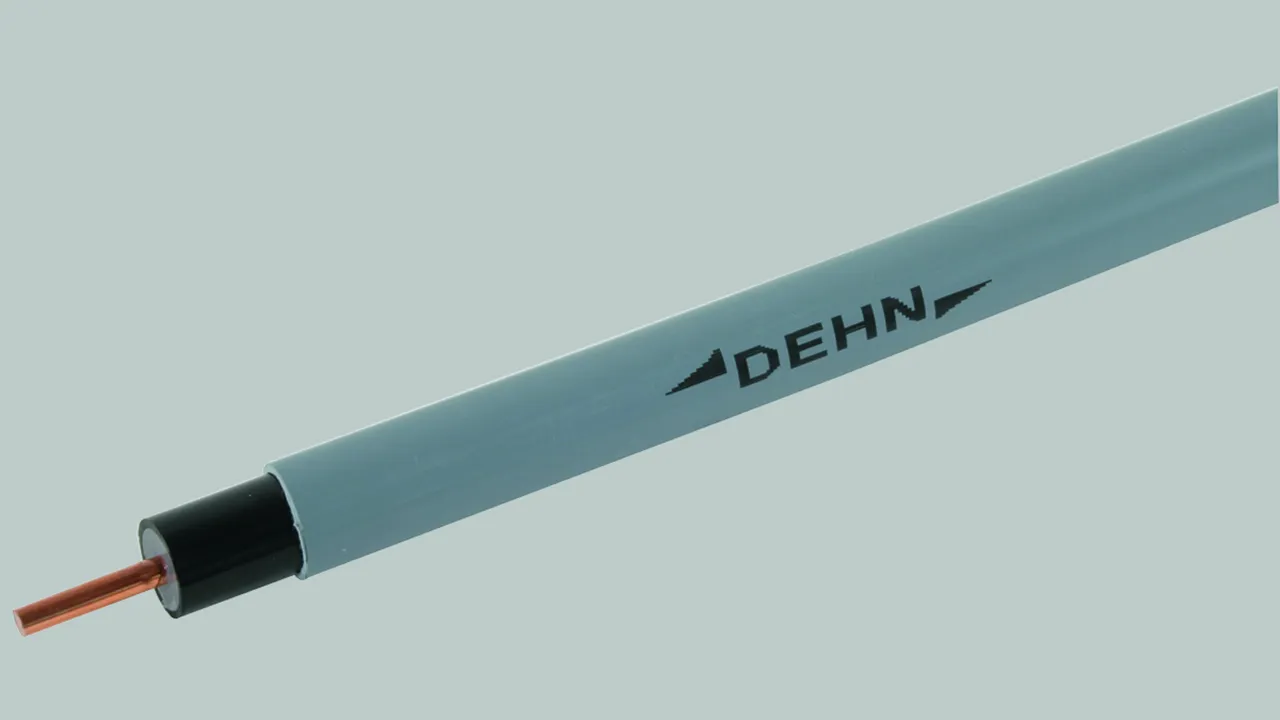

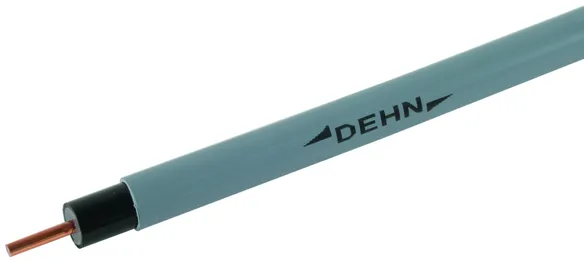

HVI light vezeték

System for keeping the separation distance e.g. on flat roofs. The high-voltage-resistant insulatation of the HVI light Conductor avoids an uncontrolled sparkover e.g. through the roof covering to metal or electric parts underneath.

Applicable up to an equivalent separation distance s ≤ 45 cm (in air) or s ≤ 90 cm (solid material).

HVI light Conductor (cut to length)

The HVI light Conductor cut to length will be supplied in a cardboard box (max. 70 m).
Conductor length to be indicated when ordering (in steps of 0.5 m).

1 Termék

Cikkszám 819129 HVI LI 45 20 L .. GR

GTIN 4013364223158, Vámtarifa szám (EU): 85446010, Bruttó súly: 4.49 kg, PU: 1.00 db.

Képek

További információ

HVI long Conductor, Cu (cut to length)
HVI light Conductor
System for keeping the separation distance in case of flat roofs.
The high-voltage-resistant insulation of the HVI light Conductor prevents uncontrolled sparkover e.g. through the roofing
to subjacent metal or electrical parts. High-voltage-resistant insulated HVI light Conductor
for keeping the separation distance to electrically conductive parts according to IEC 62305-3
Equivalent separation distance s =< 45 cm (in air) or s =< 90 cm (solid material).
Conductor cut to length 6.0 - 70.0 m

Material of conductor: Cu
Material of insulation: PE
Material of sheath: PE
Colour of conductor: dark grey ●
Colour RAL: similar to 7000
Cross-section of core: 19 mm2
Equivalent separation distance s (in air): ≤ 45 cm
Diameter Ø conductor: 20 mm
Characteristics of sheath: UV-stabilised and weather resistant
Minimum order length (l1): 6 m
<TRANSLATION_PLACEHOLDER>: <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>

Gyártó: DEHN
Típus: HVI LI 45 20 L .. GR
Cikksz.: 819129
vagy egyenértékű.

Tanúsítványok



Műszaki adatok

Material of conductor Cu
Material of insulation PE
Material of sheath PE
Colour of conductor dark grey ●
Colour RAL similar to 7000
Cross-section of core 19 mm2
Equivalent separation distance s (in air) ≤ 45 cm
Diameter Ø conductor 20 mm
Characteristics of sheath UV-stabilised and weather resistant
Minimum order length (l1) 6 m
<TRANSLATION_PLACEHOLDER> (<TRANSLATION_PLACEHOLDER>) <TRANSLATION_PLACEHOLDER> <TRANSLATION_PLACEHOLDER>
